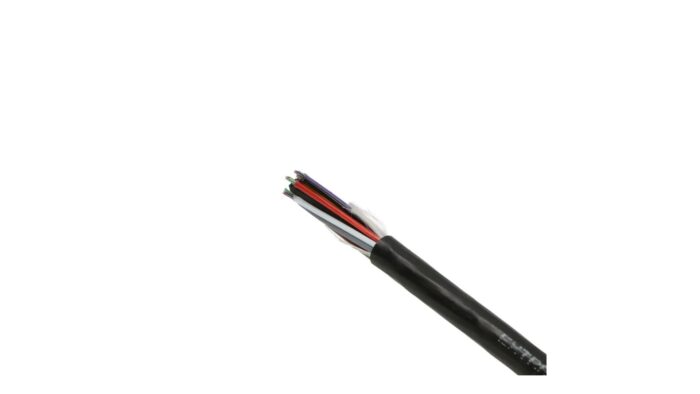

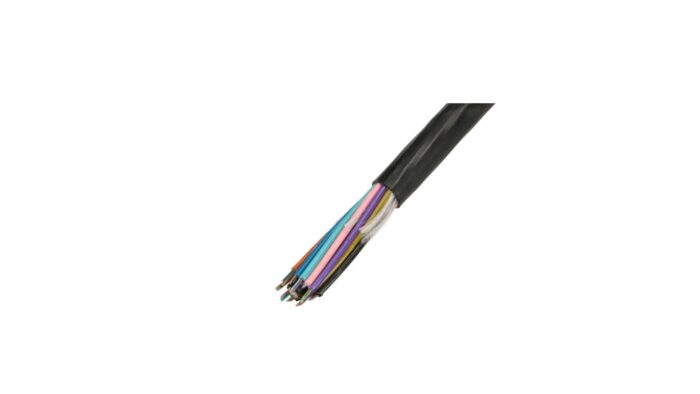

Extralink 144F Fiber Optic Cable, Single Mode, 12T12F G652D 8.8mm, Microduct, 2km

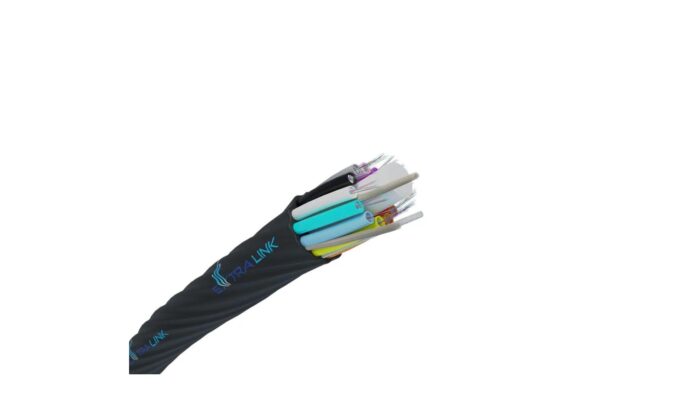

The Extralink Microcable is a specialized fiber optic cable with a configuration of 144 fibers (12 tubes with 12 fibers each) designed for microducting applications. It features G.652D type fibers known for their excellent signal transmission qualities. The cable's construction involves 12 tubes coiled around a central Fiber Reinforced Plastic (FRP) rod, which serves as a strengthening component. To protect against water ingress, the cable is filled with Water Swellable Yarn, a type of polyester yarn that expands upon contact with water. Additionally, the outer coating of the cable is corrugated to facilitate easy installation by blowing the cable into a sewer pipe.

Features

Cable length
Cable length
2000 m
show more


Fibre optic type
Fibre optic type
G.652D
show more


Connector 1
Connector 1
No
show more


Connector 2
Connector 2
No
show more


Connector 2 gender
Connector 2 gender
No
show more


Connector 1 gender
Connector 1 gender
No
show more


Cable type
Cable type
FTTH
show more


Product colour
Product colour
Black
show more


Core diameter
Core diameter
125 µm
show more


Cladding diameter
Cladding diameter
245 µm
show more


Fiber mode structure
Single-mode
show more


Wavelengths supported
1260,1300,1310,1550 nm
show more


Jacket material
High-Density Polyethylene (HDPE)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-30 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-30 – 70 °C
show more

Weight & dimensions

Cable diameter
Cable diameter
8.8 mm
show more


Cable weight
55 kg/km
show more
