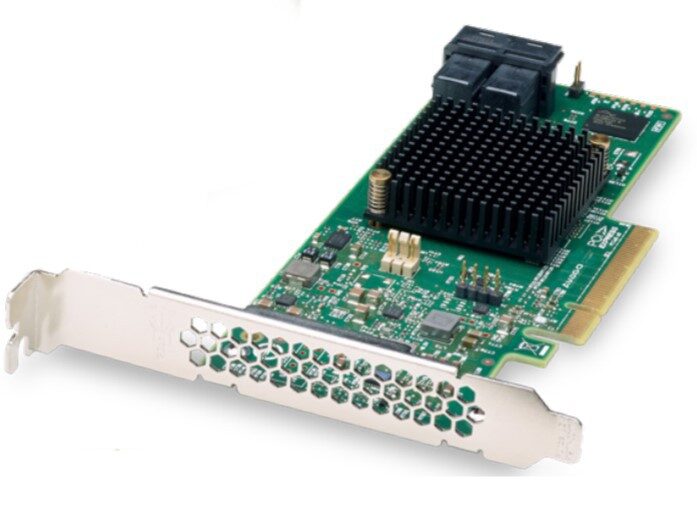

Broadcom HBA 9500-16i Interface Cards/Adapter SAS

The Broadcom HBA 9500-16i features a PCIe host interface and a SAS output interface. It is designed as a low-profile expansion card and comes in black and grey colors. The product boasts a Mean Time Between Failures (MTBF) of 5,000,000 hours and holds certifications for Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, and CE Europe (EN55022/EN55024). The typical power consumption of the product is 8.9 watts. The dimensions are 155.6 mm in width and 68.9 mm in depth. Each box contains one piece.

Ports & interfaces

Host interface
Host interface
PCIe
show more


Output interface
Output interface
SAS
show more


Expansion card form factor
Low-profile
show more


Internal mini-SAS ports
2
show more

Design

Internal
Internal
No
show more


Product colour
Product colour
Black, Grey
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
5000000 h
show more


Certification
Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
show more

Features

Full duplex
Full duplex
Yes
show more


Plug and Play
Plug and Play
Yes
show more

Power

Power consumption (typical)
Power consumption (typical)
8.9 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-45 – 105 °C
show more


Operating relative humidity (H-H)
20 – 80%
show more


Storage relative humidity (H-H)
5 – 95%
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more

Weight & dimensions

Width
Width
155.6 mm
show more


Depth
Depth
68.9 mm
show more

Packaging data

Quantity
Quantity
1
show more


Manual
Yes
show more


User guide
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Other features

Quantity per box
Quantity per box
1 pc(s)
show more
