BCM MEGARAID 9670W-16i SAS/SATA/NVMe 8GB

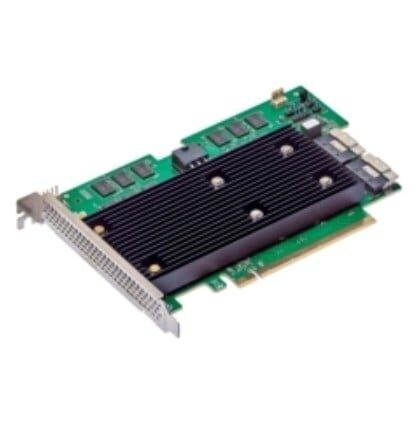

The Broadcom MegaRAID 9670W-16i is a versatile and high-performance RAID controller, designed for managing data storage efficiently. It supports SAS and Serial ATA storage drive interfaces, and connects via a PCI Express x16 host interface. The controller supports multiple RAID levels, including 0, 1, 5, 6, 10, 50, and 60, offering flexibility in configuring data redundancy and performance. With a data transfer rate of 6 Gbit/s, this RAID controller ensures rapid data processing. It comes in an MD2 form factor and typically consumes 25 watts of power. Compatible with server operating systems like SUSE Linux Enterprise Server, the dimensions of the controller are 155.6 mm in width and 111.1 mm in depth.

Ports & interfaces

Supported storage drive interfaces
SAS, Serial ATA
show more


Host interface
Host interface
PCI Express x16
show more


PCI Express slots version
4.0
show more


Internal SAS ports
2
show more

Performance

RAID levels
RAID levels
0, 1, 5, 6, 10, 50, 60
show more


Data transfer rate
Data transfer rate
6 Gbit/s
show more


Form factor
Form factor
MD2
show more


SSD support
SSD support
Yes
show more


Channels quantity
Channels quantity
16 channels
show more


S.M.A.R.T. support
Yes
show more


Number of devices supported
Number of devices supported
240
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
3000000 h
show more


Certification
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
show more

Power

Power consumption (typical)
Power consumption (typical)
25 W
show more

Technical details

Compliance certificates
RoHS, WEEE
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more


Server operating systems supported
SUSE Linux Enterprise Server
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
155.6 mm
show more


Depth
Depth
111.1 mm
show more

Other features

Other operating systems supported
VMware vSphere ESXi
show more
