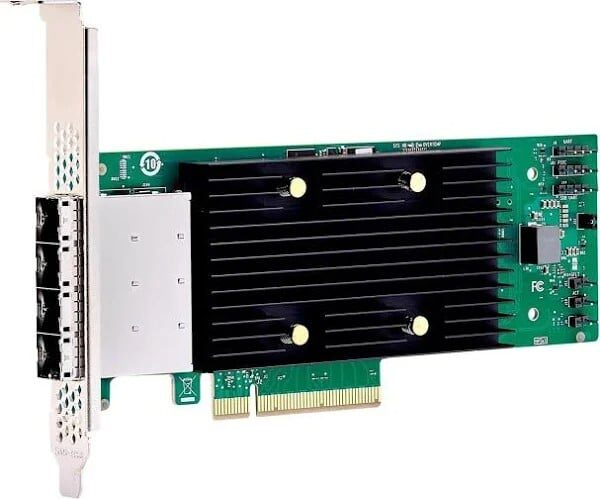

BCM HBA 9600-16e SAS/SATA/NVMe

The Broadcom eHBA 9600-16e features a host interface of PCIe and supports output interfaces for SAS and SATA. It is designed as an expansion card with a form factor that accommodates both full-height and low-profile configurations. The product is available in black, green, and silver colors. It boasts a mean time between failures (MTBF) of 5,000,000 hours and is certified according to Australia/New Zealand RCM standards (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015). With a maximum data transfer rate of 22.5 Gbit/s, it consumes approximately 17 watts of power during typical operation. The server operating systems supported include SUSE Linux Enterprise Server, and it is also compatible with VMware vSphere ESXi as an additional supported operating system.

Ports & interfaces

Host interface
Host interface
PCIe
show more


Output interface
Output interface
SAS, SATA
show more


Expansion card form factor
Full-height / Low-profile
show more


Expansion card standard
PCIe 4.0
show more


NVMe
NVMe
Yes
show more


External mini-SAS HD ports
4
show more

Design

Internal
Internal
Yes
show more


Product colour
Product colour
Black, Green, Silver
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
5000000 h
show more


Certification
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
show more

Features

Data transfer rate (max)
22.5 Gbit/s
show more


S.M.A.R.T. support
Yes
show more

Power

Power consumption (typical)
Power consumption (typical)
17 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Operating relative humidity (H-H)
5 – 90%
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more


Server operating systems supported
SUSE Linux Enterprise Server
show more


Other operating systems supported
VMware vSphere ESXi
show more

Technical details

Compliance certificates
RoHS, WEEE
show more


Warranty period
3 year(s)
show more


Sustainability compliance
Yes
show more

Weight & dimensions

Width
Width
167.5 mm
show more


Depth
Depth
68.8 mm
show more

Packaging data

Quantity per pack
1 pc(s)
show more


Mounting brackets included
Yes
show more
