Circuit Breaker 6 kA, Characteristic B, 32 A, 3-Pole

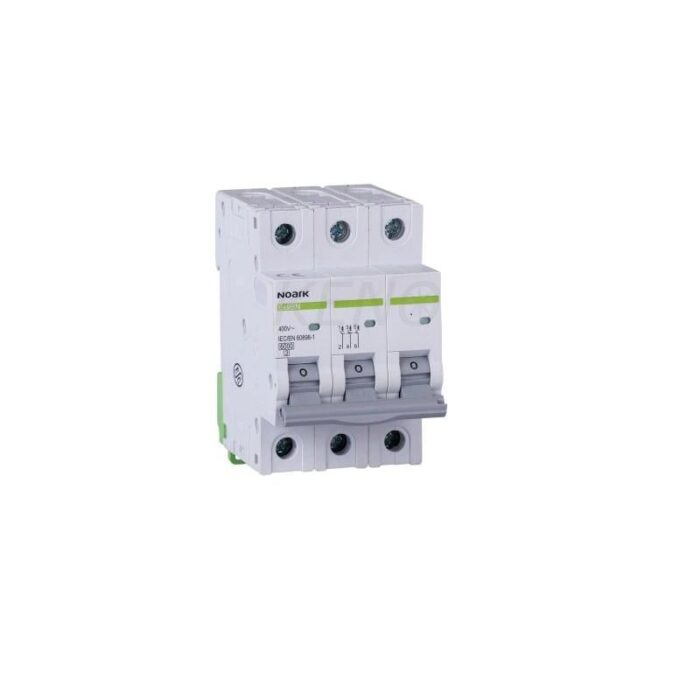

The Noark 100056 is a modular overcurrent circuit breaker offering advanced protection and versatility for managing electrical circuits. It features a 6 kA interrupting capacity and a B characteristic curve, which ensures a swift response to short-circuits while minimizing unwanted trips during transient overloads. Rated at 32 A, it has a three-pole configuration ideal for various domestic applications within a current rating range of 1 to 63 A. This circuit breaker is designed to be compatible with a wide range of accessories, including auxiliary contacts, auxiliary trip contacts, shunt trips, and both undervoltage and overvoltage triggers, as well as residual current blocks. Users can creatively combine these components, with the restriction of attaching up to three units of auxiliary or trip contacts and two units of triggers. The design ensures that all components can be integrated without restriction by type, allowing for flexibility and easy customization to meet specific needs. The product is identified by the EAN 8592765000576, which uniquely identifies this model of circuit breaker.
