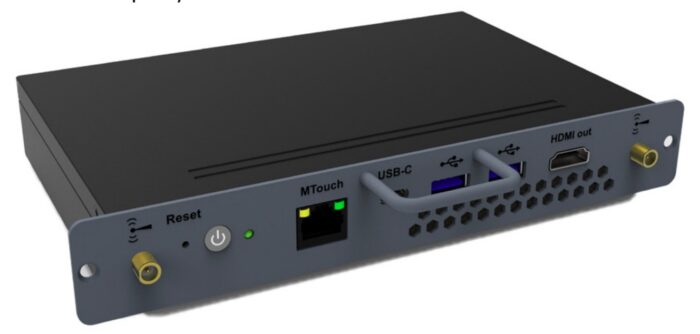

Yealink MCore-OPS

Yealink Windows OPS for MeetingBoard Series, model Mcore-OPS, is a high-performance computing unit. It is powered by an Intel Core i5 processor, specifically the i5-1135G7 model from Intel. This device comes with 8 GB of internal memory, utilizing DDR4-SDRAM technology, distributed across two slots each equipped with 4 GB modules. For storage, it offers a total capacity of 128 GB and uses SSD storage media for fast read and write speeds. The graphics capabilities are managed by an Intel Iris Xe Graphics on-board card, which can achieve a dynamic frequency of up to 1300 MHz. Additionally, it supports the latest Wi-Fi standards, specifically Wi-Fi 6 (802.11ax), ensuring fast and reliable wireless connectivity.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor generation
11th gen Intel® Core™ i5
show more


Processor family
Processor family
Intel® Core™ i5
show more


Processor model
Processor model
i5-1135G7
show more


Processor cores
Processor cores
4
show more


Processor boost frequency
Processor boost frequency
4.2 GHz
show more


Processor socket
Processor socket
BGA 1449
show more


Processor cache
8 MB
show more


Processor cache type
Smart Cache
show more


System bus rate
System bus rate
4 GT/s
show more


Processor lithography
Processor lithography
10 nm
show more


Processor operating modes
Processor operating modes
64-bit
show more


Configurable TDP-up frequency
2.4 GHz
show more


Configurable TDP-up
28 W
show more


Configurable TDP-down frequency
0.9 GHz
show more


Configurable TDP-down
12 W
show more


Tjunction
100 °C
show more

Memory

Internal memory
Internal memory
8 GB
show more


Internal memory type
Internal memory type
DDR4-SDRAM
show more


Memory layout (slots x size)
Memory layout (slots x size)
2 x 4 GB
show more

Storage

Total storage capacity
Total storage capacity
128 GB
show more


Storage media
Storage media
SSD
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


On-board graphics card model
On-board graphics card model
Intel Iris Xe Graphics
show more


On-board graphics card dynamic frequency (max)
1300 MHz
show more


Discrete graphics card
No
show more

Network

Wi-Fi
Wi-Fi
Yes
show more


Wi-Fi standards
Wi-Fi standards
Wi-Fi 6 (802.11ax)
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Bluetooth
Bluetooth
Yes
show more


Bluetooth version
Bluetooth version
5.2
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Software

Operating system installed
Operating system installed
Windows 10 IoT Enterprise
show more


Operating system architecture
Operating system architecture
64-bit
show more

Power

DC input voltage
12 – 19 V
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 60 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
180 mm
show more


Depth
Depth
119 mm
show more


Height
Height
30 mm
show more


Weight
Weight
700 g
show more


Package width
Package width
267 mm
show more


Package depth
Package depth
215 mm
show more


Package height
Package height
65 mm
show more


Package weight
Package weight
890 g
show more
