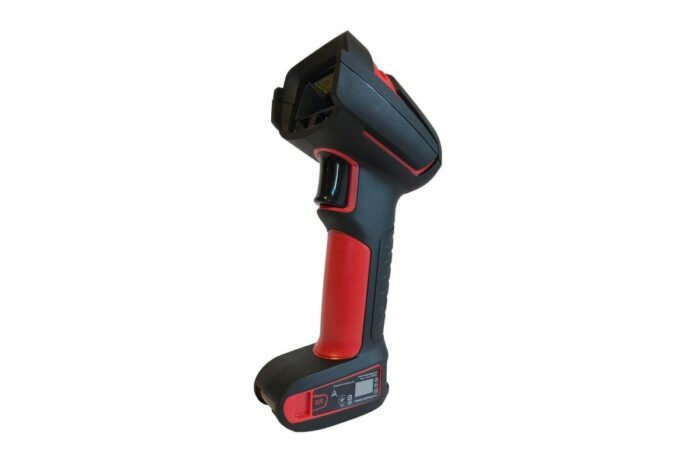

Honeywell 1990i 2D SR Multi-IF

The Honeywell Granit 1990iSR is a handheld barcode reader designed to scan both 1D and 2D barcodes, utilizing LED sensor technology. It offers wired connectivity and supports standard interfaces such as Keyboard Wedge, RS-232, and USB. The reader features a black and red color scheme and has an International Protection rating of IP67, indicating strong resistance to dust and water. Designed to operate on DC power, it has a typical power consumption of 2.35 watts and a standby power consumption of 0.5 watts. It is relatively lightweight, weighing 320 grams, with dimensions of 76 mm in width and 192 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
PDF417, UPC-A, UPC-E
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Code 39, Data Matrix, PDF417, QR Code
show more


Sensor type
Sensor type
LED
show more


Optical sensor resolution (W x H)
1280 x 800 pixels
show more


Light levels (direct sunlight)
0 – 100 lx
show more


Pitch reading angle
-45 – 45°
show more


Yaw reading angle
-65 – 65°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
Keyboard wedge, RS-232, USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP67
show more


Product colour
Product colour
Black, Red
show more

Power

Power source type
Power source type
DC
show more


Power consumption (typical)
Power consumption (typical)
2.35 W
show more


Power consumption (standby)
Power consumption (standby)
0.5 W
show more


Input voltage
Input voltage
4 – 5.5 V
show more

Weight & dimensions

Width
Width
76 mm
show more


Depth
Depth
192 mm
show more


Height
Height
100 mm
show more


Weight
Weight
320 g
show more

Operational conditions

Operating relative humidity (H-H)
0 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-30 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84716070
