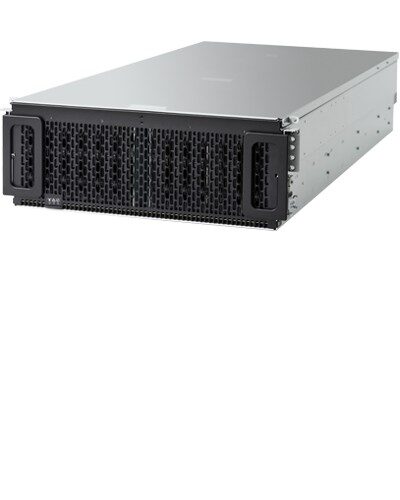

Western Digital Ultrastar Data102 Disk Array 1020 TB Rack 4U Black, Grey

The Western Digital Ultrastar Data102 is designed for small and medium businesses with a total installed storage capacity of 1020 TB. It uses HDDs as its installed storage drive type, with a storage drive interface of Serial ATA III and a storage drive size of 3.5 inches. The device is housed in a 4U rack-mounted chassis. It supports up to 102 storage drives and is compatible with both HDD and SSD types, with supported storage drive interfaces of SAS-3 and Serial ATA III. The dimensions of the product are 447 mm in width, 1047 mm in depth, and 175 mm in height, and it comes in black and grey.

Storage

Storage drives installed
Storage drives installed
Yes
show more


Installed storage drive type
Installed storage drive type
HDD
show more


Number of storage drives installed
Number of storage drives installed
102
show more


Total installed storage capacity
1020 TB
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Number of storage drives supported
Number of storage drives supported
102
show more


Storage drive capacity
Storage drive capacity
10 TB
show more


Storage drive interface
Storage drive interface
Serial ATA III
show more


Storage drive size
Storage drive size
3.5"
show more


Supported storage drive interfaces
SAS-3, Serial ATA III
show more


Data transfer rate
Data transfer rate
6 Gbit/s
show more


Hot-swap drive bays
Hot-swap drive bays
Yes
show more

Ports & interfaces

USB connectivity
USB connectivity
No
show more


Number of mini-SAS host ports
12
show more


Serial interface type
RJ-45
show more


Mini-SAS host port
Yes
show more

Design

Device class
Device class
Small & Medium Business
show more


Chassis type
Chassis type
Rack (4U)
show more


Product colour
Product colour
Black, Grey
show more


LED indicators
Yes
show more


Number of fans
Number of fans
6 fan(s)
show more


Redundant fans support
Yes
show more


Built-in display
Built-in display
No
show more

Power

Power supply unit (PSU) capacity
1600 W
show more


Number of power supply units
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
200 – 240 V
show more


AC input frequency
50 / 60 Hz
show more

Weight & dimensions

Width
Width
447 mm
show more


Depth
Depth
1047 mm
show more


Height
Height
175 mm
show more


Disk enclosure weight
31.8 kg
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 40 °C
show more


Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating altitude
0 – 915 m
show more
