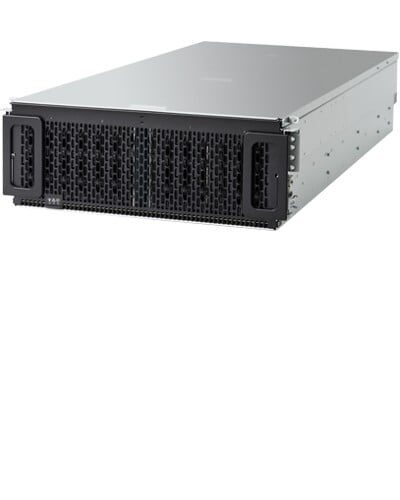

Western Digital Ultrastar Data102 Disk Array 0.6 TB Rack (4U) Black, Grey

The Western Digital Ultrastar Data102 is a storage solution offering a total installed storage capacity of 0.6 TB. It utilizes HDD as the installed storage drive type and features a Serial Attached SCSI (SAS) III interface. The storage drive size is 3.5 inches. Designed as a rack-mountable unit, the chassis type is classified as 4U, making it suitable for small and medium businesses. This device supports up to 102 storage drives and is compatible with both HDD and SSD drive types. It supports SAS-3 and Serial ATA III storage drive interfaces. The dimensions of the product are 447 mm in width, 1047 mm in depth, and 175 mm in height. The product is available in black and grey colors.

Storage

Storage drives installed
Storage drives installed
Yes
show more


Installed storage drive type
Installed storage drive type
HDD
show more


Number of storage drives installed
Number of storage drives installed
60
show more


Total installed storage capacity
0.6 TB
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Number of storage drives supported
Number of storage drives supported
102
show more


Storage drive capacity
Storage drive capacity
10 TB
show more


Storage drive interface
Storage drive interface
Serial Attached SCSI (SAS) III
show more


Storage drive size
Storage drive size
3.5"
show more


Supported storage drive interfaces
SAS-3, Serial ATA III
show more


Data transfer rate
Data transfer rate
12 Gbit/s
show more


Hot-swap drive bays
Hot-swap drive bays
Yes
show more

Ports & interfaces

USB connectivity
USB connectivity
No
show more


Number of mini-SAS host ports
12
show more


Serial interface type
RJ-45
show more


Mini-SAS host port
Yes
show more

Design

Device class
Device class
Small & Medium Business
show more


Chassis type
Chassis type
Rack (4U)
show more


Product colour
Product colour
Black, Grey
show more


LED indicators
Yes
show more


Number of fans
Number of fans
6 fan(s)
show more


Noise level
Noise level
72 dB
show more


Redundant fans support
Yes
show more


Built-in display
Built-in display
No
show more

Power

Power supply unit (PSU) capacity
1600 W
show more


Number of power supply units
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
200 – 240 V
show more


AC input frequency
50 / 60 Hz
show more

Weight & dimensions

Width
Width
447 mm
show more


Depth
Depth
1047 mm
show more


Height
Height
175 mm
show more


Disk enclosure weight
31.8 kg
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 40 °C
show more


Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating altitude
0 – 915 m
show more
