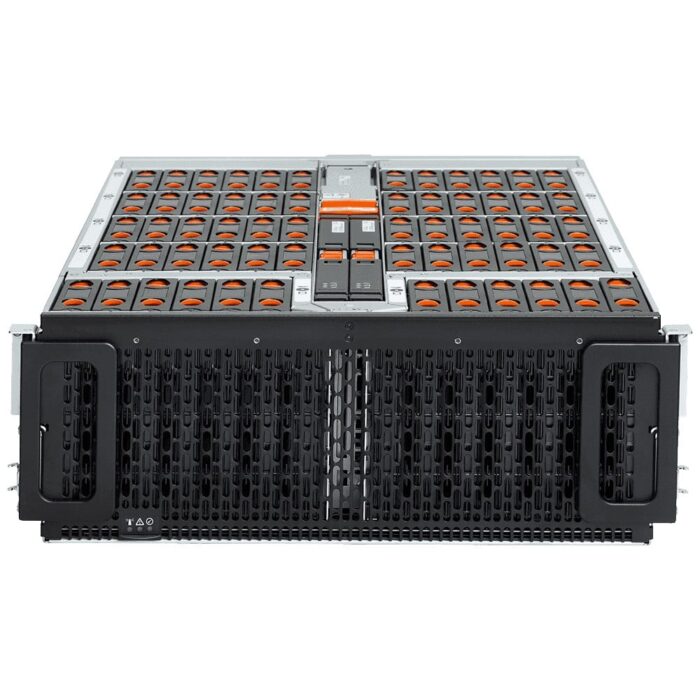

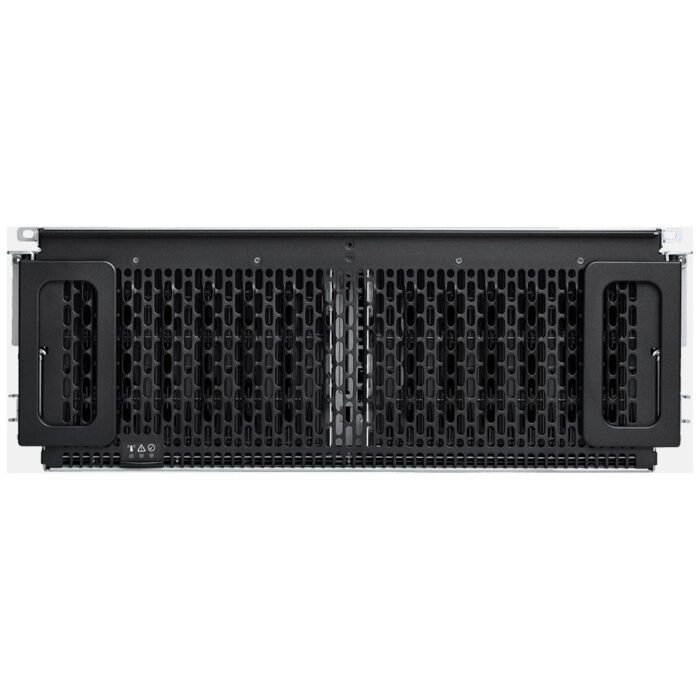

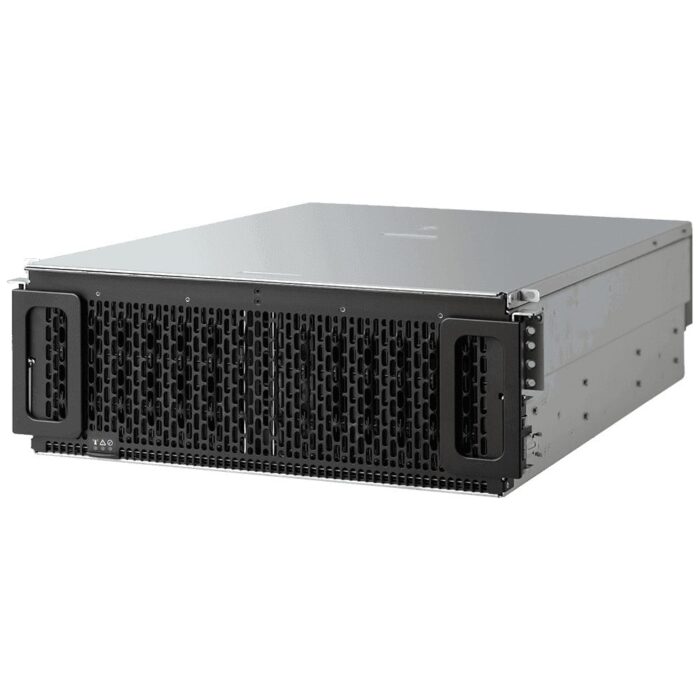

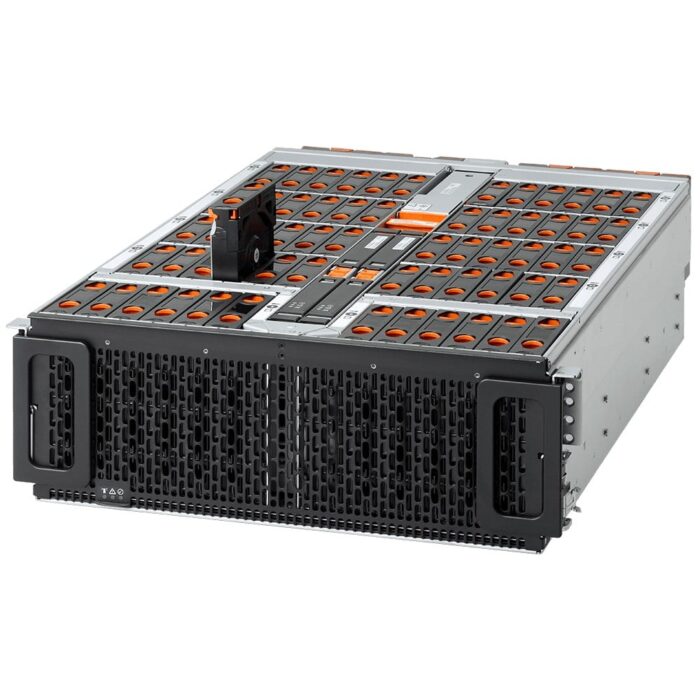

Western Digital Ultrastar Data60 Disk Array 8TB Rack (4U)

The Western Digital Ultrastar Data60 is a high-capacity storage solution designed for large enterprise businesses. It offers a total installed storage capacity of 8 TB, utilizing hard disk drives (HDD) with a Serial Attached SCSI (SAS) interface. The chassis is a 4U rack type, supporting up to 60 storage drives. It accommodates both HDD and SSD types and supports SAS and Serial ATA III interfaces. The dimensions of the unit are 447 mm in width, 712 mm in depth, and 175 mm in height, with a weight of 79.4 kg.

Storage

Storage drives installed
Storage drives installed
Yes
show more


Installed storage drive type
Installed storage drive type
HDD
show more


Number of storage drives installed
Number of storage drives installed
60
show more


Total installed storage capacity
8 TB
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Number of storage drives supported
Number of storage drives supported
60
show more


Maximum supported storage capacity
Maximum supported storage capacity
840 TB
show more


Storage drive interface
Storage drive interface
Serial Attached SCSI (SAS)
show more


Supported storage drive interfaces
SAS, Serial ATA III
show more

Design

Device class
Device class
Large Enterprise Business
show more


Chassis type
Chassis type
Rack (4U)
show more


LED indicators
Yes
show more


Cooling
Cooling
Yes
show more


Number of fans
Number of fans
6 fan(s)
show more


Redundant fans support
Yes
show more

Power

Power supply unit (PSU) capacity
1600 W
show more


Number of power supply units
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
220 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Weight & dimensions

Width
Width
447 mm
show more


Depth
Depth
712 mm
show more


Height
Height
175 mm
show more


Weight
Weight
79.4 kg
show more


Disk enclosure weight
79.4 kg
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
5 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more

Logistics data

Harmonized System (HS) code
84717020
show more
