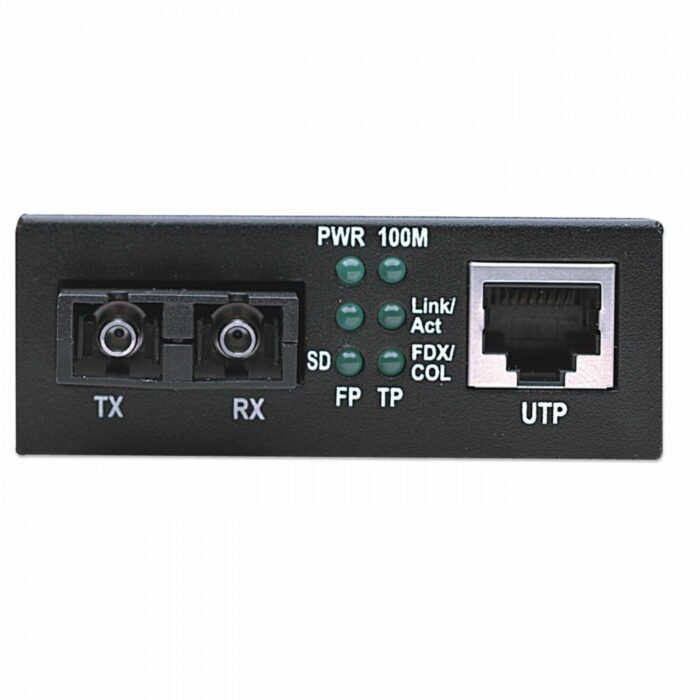

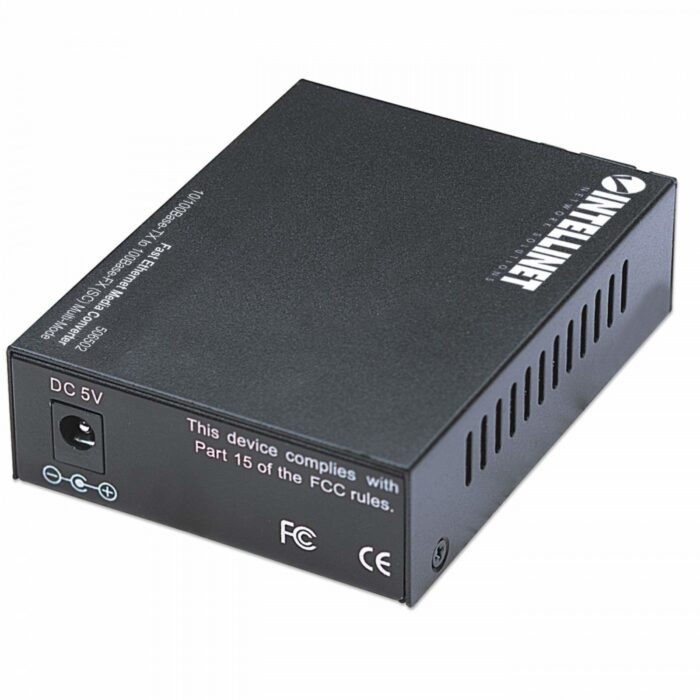

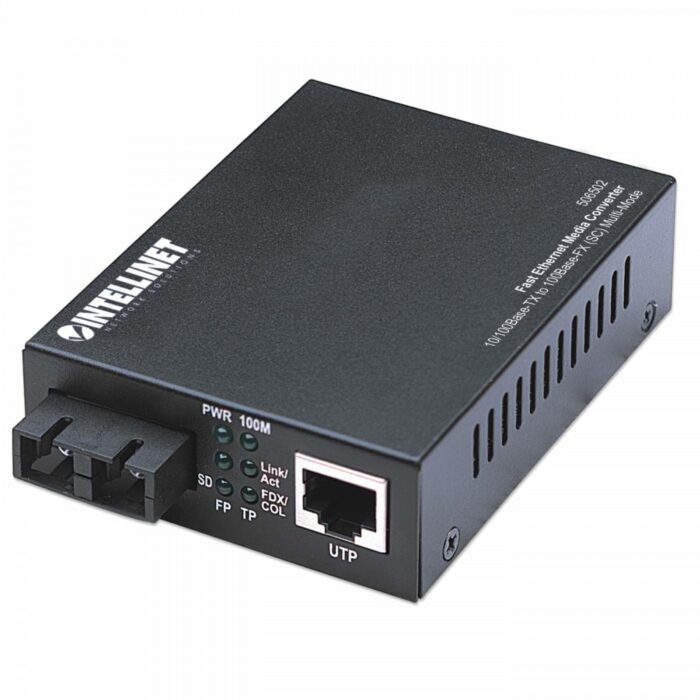

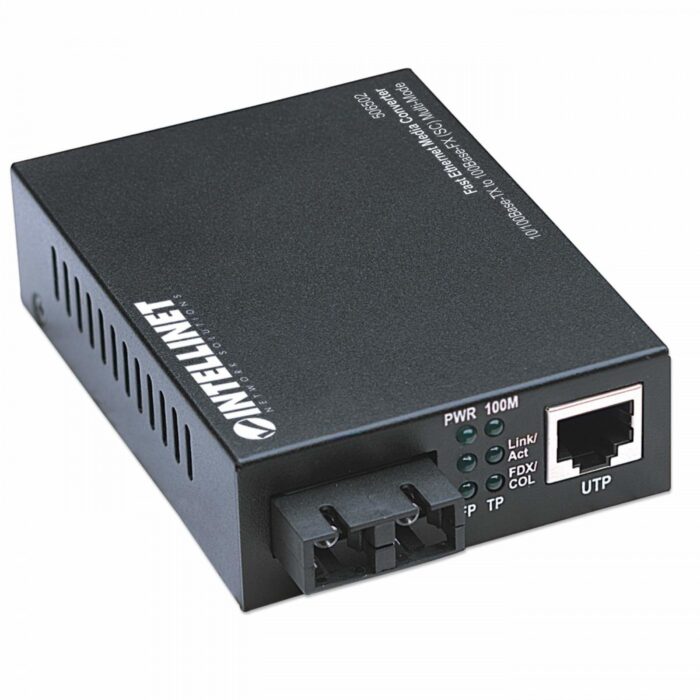

Intellinet 506502 Fast Ethernet Multimode Media Converter, 2km, Switch

The Intellinet Fast Ethernet Media Converter facilitates the conversion from 10/100Base-Tx to 100Base-Fx (SC) Multi-Mode, covering a distance of up to 2 kilometers or 1.24 miles. It supports a maximum data transfer rate of 100 Mbit/s and complies with networking standards IEEE 802.3 and IEEE 802.3u. The Ethernet interface type is Fast Ethernet, and it features an SC fiber optic connector with wired connectivity technology. The converter has a maximum transfer distance of 2000 meters and operates at a wavelength of 1310 nm. It employs a multi-mode fiber structure and includes LED indicators for LAN, Link, Power, and Status. The product is black in color with a metal housing. It requires an input voltage of 5 V and an input current of 1 A, with a maximum power consumption of 2.5 watts.

Network

Maximum data transfer rate
Maximum data transfer rate
100 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u
show more


Ethernet interface type
Fast Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Duplex system
Duplex system
Full, Half
show more

Performance

Maximum transfer distance
Maximum transfer distance
2000 m
show more


Wavelength
Wavelength
1310 nm
show more


Fiber mode structure
Multi-mode
show more


Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
show more


Tx power (min)
-22 dBmW
show more


Tx power (max)
-12 dBmW
show more


Sensitivity
Sensitivity
-30 dBmW
show more

Features

Internal
Internal
No
show more


Housing material
Housing material
Metal
show more


LED indicators
LAN, Link, Power, Status
show more


Product colour
Product colour
Black
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more


DC-in jack
DC-in jack
Yes
show more

Power

Input voltage
Input voltage
5 V
show more


Input current
1 A
show more


Power consumption (max)
Power consumption (max)
2.5 W
show more


External power adapter
Yes
show more

Weight & dimensions

Width
Width
70 mm
show more


Depth
Depth
107 mm
show more


Height
Height
26 mm
show more


Weight
Weight
500 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-45 – 80 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Packaging content

AC adapter included
Yes
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
FCC Class B, CE, UKCA, NDAA
show more

Logistics data

Harmonized System (HS) code
85176990
