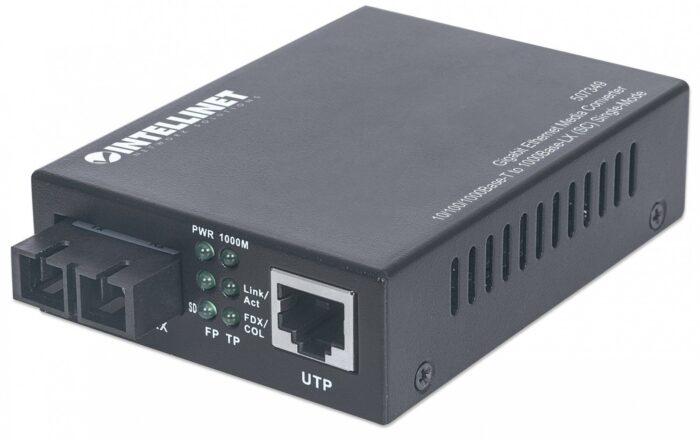

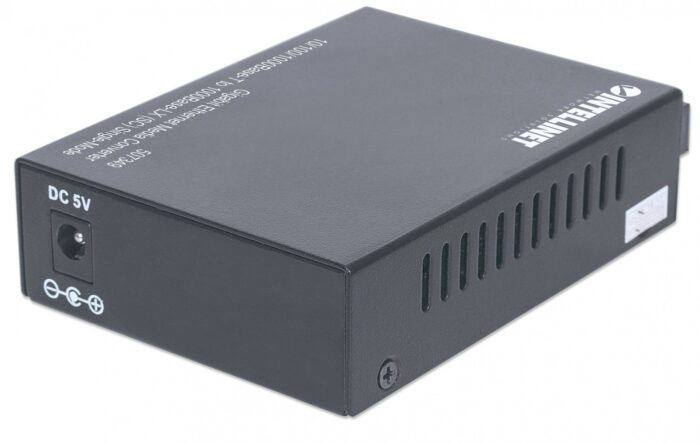

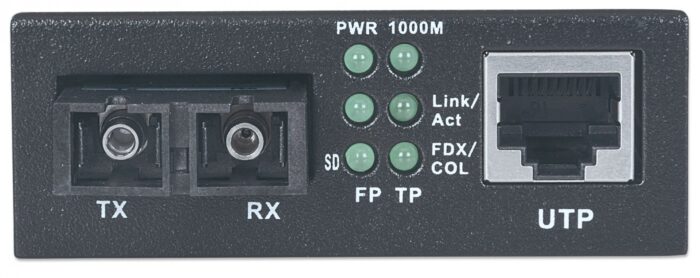

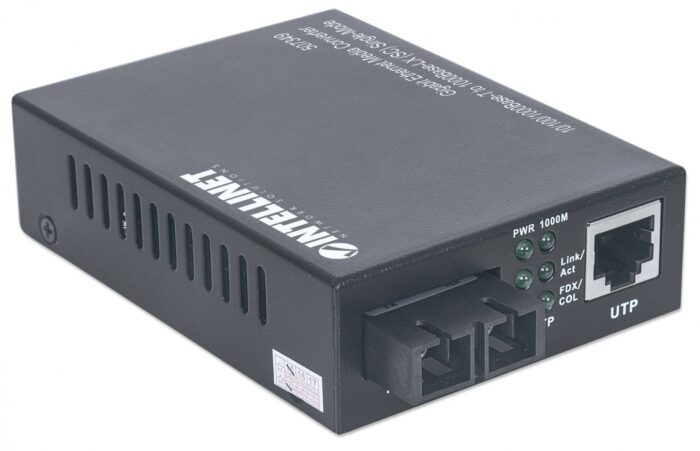

Intellinet Gigabit Ethernet Single Mode Media Converter, 10/100/1000Base-T to 1000Base-Lx (SC) Single-Mode, 20km, Euro 2-pin plug

Intellinet presents its Gigabit Ethernet Single Mode Media Converter, designed for converting 10/100/1000Base-T to 1000Base-LX (SC) single-mode with a distance capability of up to 20 kilometers. It offers a maximum data transfer rate of 1000 Mbit/s. The converter features an input interface of 1000Base-T and an output interface of 1000Base-LX. Its maximum transfer distance reaches up to 20,000 meters, facilitated by a wavelength of 1310 nm and a single-mode fiber structure. The product comes in black and is housed in durable metal. It utilizes an SC fiber optic connector and operates with wired connectivity technology. The converter has an output voltage of 5 V and an output current of 1.2 A, with a maximum power consumption of 5 W.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
1000Base-T
show more


Converter output interface
1000Base-LX
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Fiber ethernet cabling technology
1000BASE‑LX
show more


Duplex system
Duplex system
Full
show more

Performance

Maximum transfer distance
Maximum transfer distance
20000 m
show more


Wavelength
Wavelength
1310 nm
show more


Fiber mode structure
Single-mode
show more


Fiber cable diameters supported (core/cladding)
8.3/125,8.7/125,8/125,10/125 µm
show more


Tx power (min)
-8 dBmW
show more


Tx power (max)
-3 dBmW
show more


Sensitivity
Sensitivity
-22 dBmW
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
100000 h
show more

Features

Internal
Internal
No
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Product colour
Product colour
Black
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more


DC-in jack
DC-in jack
Yes
show more

Power

Output voltage
5 V
show more


Output current
1.2 A
show more


Power consumption (max)
Power consumption (max)
5 W
show more


External power adapter
Yes
show more

Weight & dimensions

Width
Width
70 mm
show more


Depth
Depth
105 mm
show more


Height
Height
26 mm
show more


Weight
Weight
180 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-45 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Packaging content

AC adapter included
Yes
show more


Manual
Yes
show more

Certificates

Certification
FCC Class B, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
