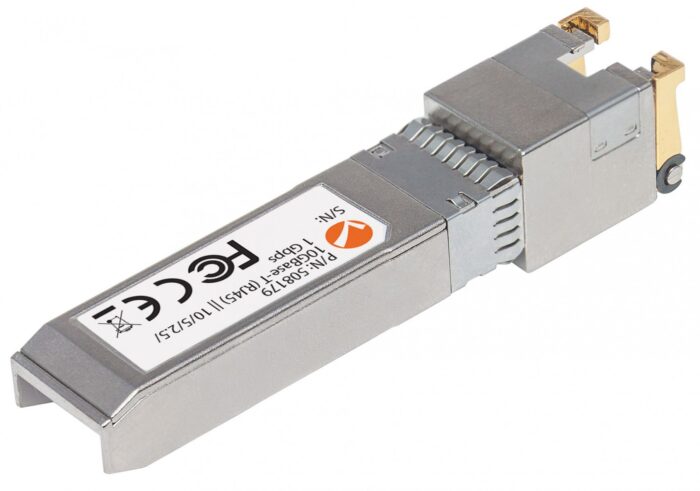

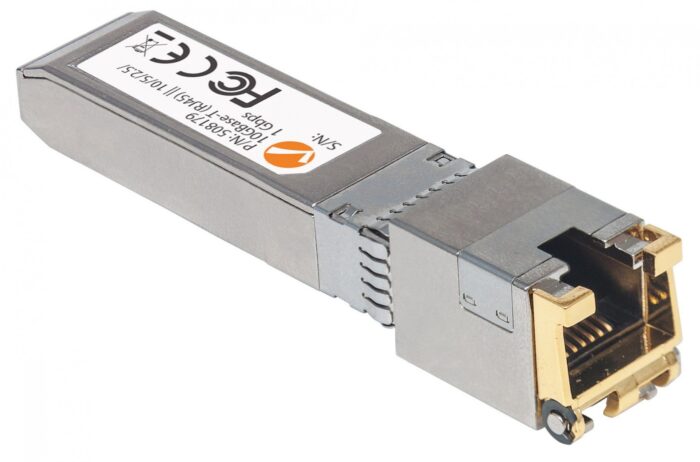

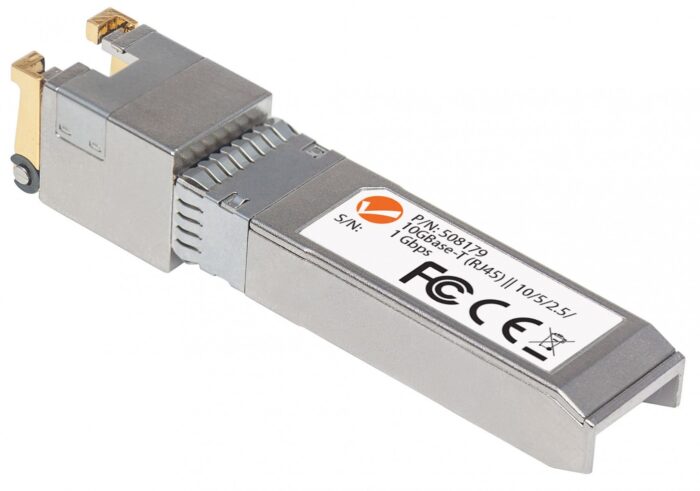

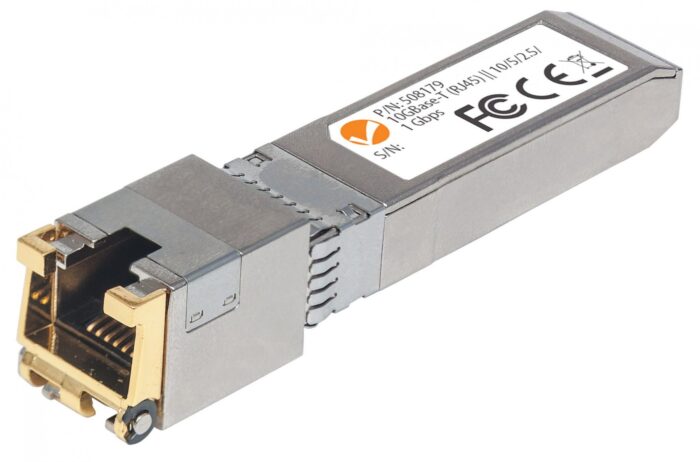

Intellinet 10 Gigabit Copper SFP+ Transceiver Module, 10GBase-T (RJ45) Port, 30 m (98 ft.), Up to 10 Gbps Data-Transfer Rate with Cat6a Cabling

The Intellinet Transceiver Module is a 10 Gigabit Copper SFP+ with a 10GBase-T (RJ45) port that supports up to 30 meters of data transfer at speeds of up to 10 Gbps using Cat6a cabling. It is MSA compliant and equivalent to the Cisco MA-SFP-10G-T, and it comes with a three-year warranty. This SFP transceiver is designed with a copper interface and has a maximum data transfer rate of 11100 Mbit/s. It uses an SFP+ interface type, and its product color is silver. The transceiver operates on an input voltage of 3.3 V and has a typical power consumption of 3 W. It holds compliance certificates for RoHS and certifications including FCC Class A, CE Mark, and IEC-60825. The module measures 13.7 mm in width, 68 mm in depth, and 13.6 mm in height.

Performance

SFP transceiver type
Copper
show more


Maximum data transfer rate
Maximum data transfer rate
11100 Mbit/s
show more


Interface type
SFP+
show more


Maximum transfer distance
Maximum transfer distance
30 m
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Features

Product colour
Product colour
Silver
show more


Hot-Plug support
Hot-Plug support
Yes
show more

Power

Input voltage
Input voltage
3.3 V
show more


Power consumption (typical)
Power consumption (typical)
3 W
show more

Certificates

Compliance certificates
RoHS
show more


Certification
FCC Class A, CE Mark, IEC-60825
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 60 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
13.7 mm
show more


Depth
Depth
68 mm
show more


Height
Height
13.6 mm
show more


Weight
Weight
25.5 g
show more

Logistics data

Harmonized System (HS) code
85369010
