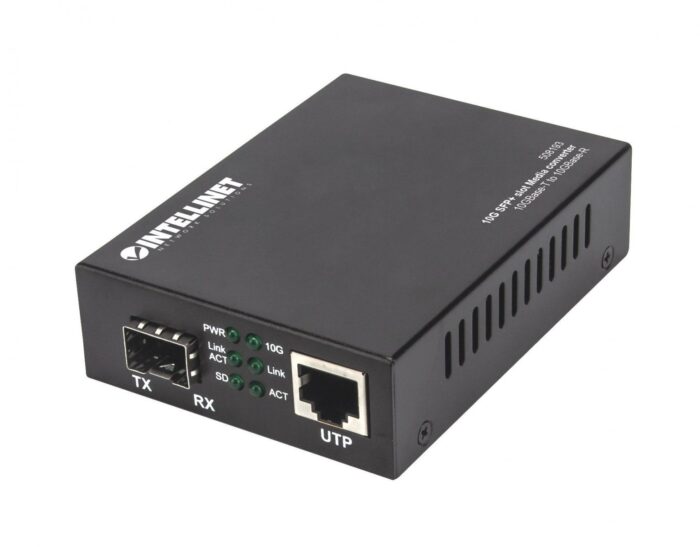

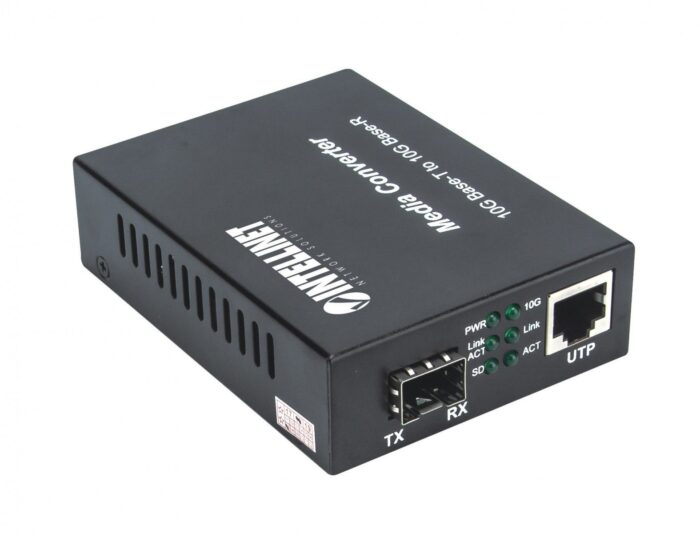

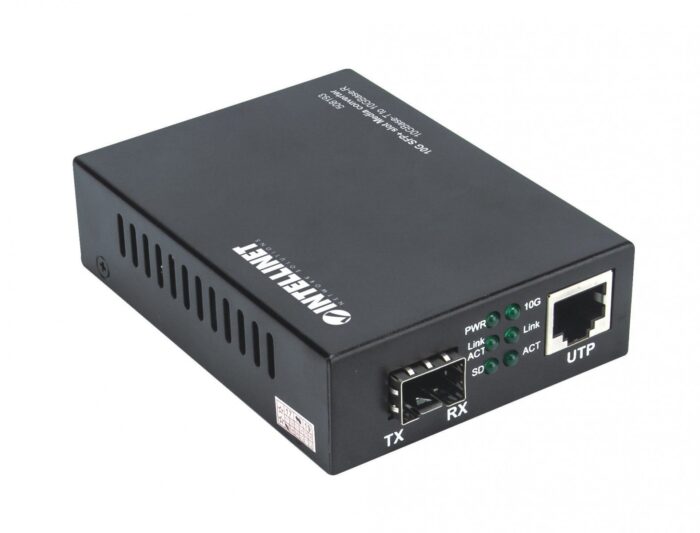

Intellinet 10GBase-T to 10GBase-R Media Converter, 1 x 10 GB SFP+ Slot, 1 x 10GB RJ45 Port, Euro 2-pin plug

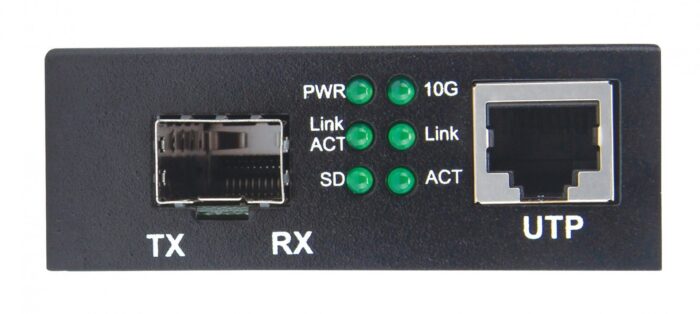

The Intellinet 10GBase-T to 10GBase-R Media Converter features a single 10 GB SFP+ slot and a 10GB RJ45 port, providing a maximum data transfer rate of 10000 Mbit/s. It adheres to networking standards such as IEEE 802.3u and supports a 10 Gigabit Ethernet interface type. The media converter offers a maximum transfer distance of up to 100 meters. It includes LED indicators for activity and link status and comes in a black color. The housing is made of durable metal. This device utilizes an SFP+ fiber optic connector and supports wired connectivity technology. It requires an input voltage of 12 V and an input current of 0.5 A, with a maximum power consumption of 5 W.

Network

Maximum data transfer rate
Maximum data transfer rate
10000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3u
show more


Ethernet interface type
10 Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000,1200,2500,5000,10000 Mbit/s
show more


Auto-negotiation
Yes
show more


Duplex system
Duplex system
Full, Half
show more

Performance

Maximum transfer distance
Maximum transfer distance
100 m
show more

Features

Internal
Internal
No
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link
show more


Product colour
Product colour
Black
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SFP+
show more

Power

Input voltage
Input voltage
12 V
show more


Input current
0.5 A
show more


Power consumption (max)
Power consumption (max)
5 W
show more


External power adapter
Yes
show more

Weight & dimensions

Width
Width
70 mm
show more


Depth
Depth
95 mm
show more


Height
Height
25 mm
show more


Weight
Weight
200 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 80%
show more

Packaging content

Manual
Yes
show more

Logistics data

Harmonized System (HS) code
85176990
show more
