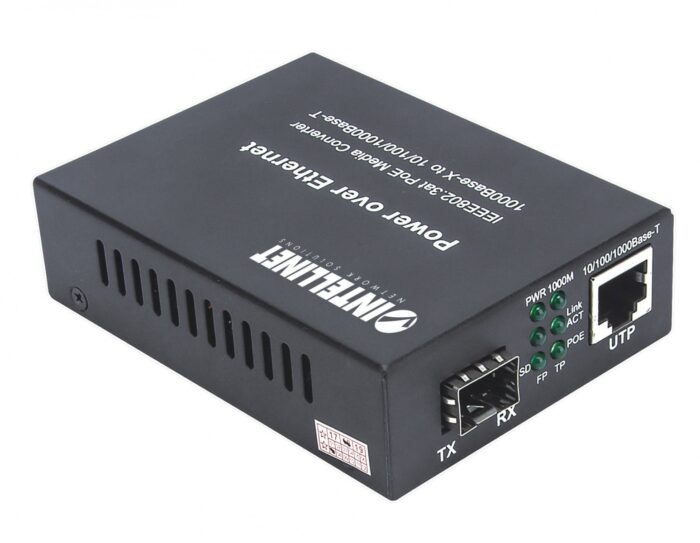

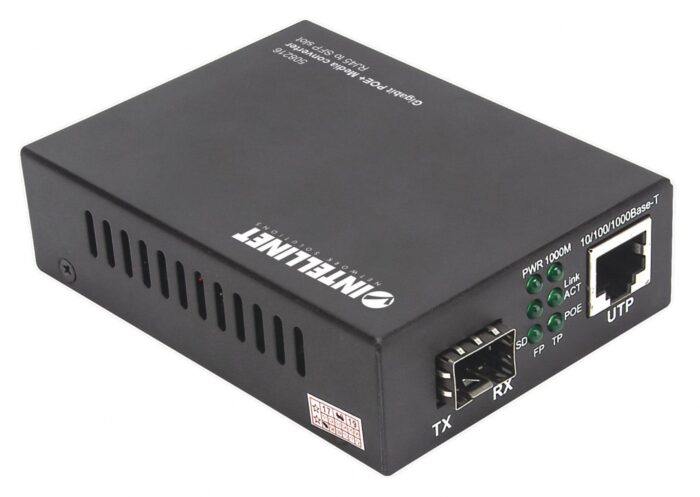

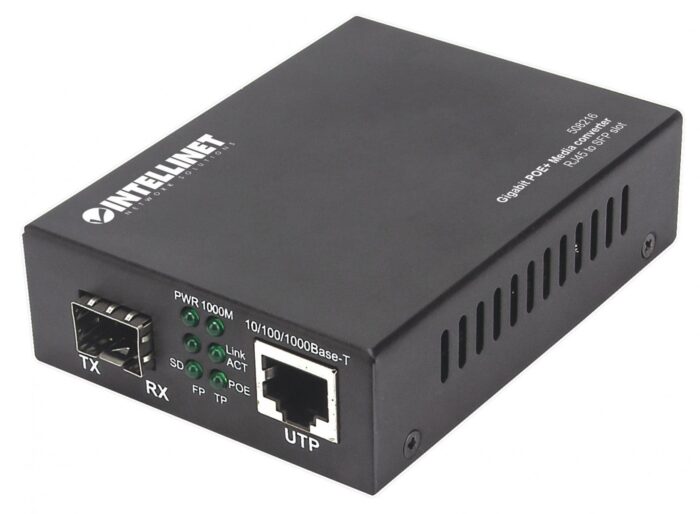

Intellinet Gigabit PoE+ Media Converter, 1 x 1000Base-T RJ45 Port to 1 x SFP Port, PoE+ Injector Euro 2-pin Plug

The Intellinet Gigabit PoE+ Media Converter offers a versatile networking solution with its ability to convert a 1000Base-T RJ45 port to an SFP port while integrating PoE+ injector capabilities. It supports a maximum data transfer rate of 1000 Mbit/s and features an input interface of 1000Base-T. This media converter complies with networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3u. It can effectively cover a maximum transfer distance of up to 120,000 meters. The device includes LED indicators for activity, link, PoE, and power statuses. With a sleek black design, the housing is made of durable metal. The fiber optic connector type is SFP, ensuring reliable wired connectivity. It operates with an input voltage of 56 V and an input current of 0.5 A.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
1000Base-T
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Duplex system
Duplex system
Full, Half
show more


Cable types supported
Cat5
show more

Performance

Maximum transfer distance
Maximum transfer distance
120000 m
show more

Features

Internal
Internal
No
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more


Housing material
Housing material
Metal
show more


Product colour
Product colour
Black
show more

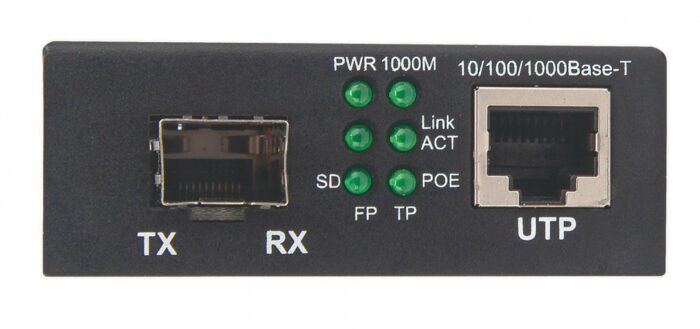

LED indicators
Activity, Link, PoE, Power
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SFP
show more


DC-in jack
DC-in jack
Yes
show more

Power

Input voltage
Input voltage
56 V
show more


Input current
0.5 A
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Weight & dimensions

Width
Width
70 mm
show more


Depth
Depth
95 mm
show more


Height
Height
25 mm
show more


Weight
Weight
200 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 55 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
5 – 80%
show more

Packaging content

AC adapter included
Yes
show more


Manual
Yes
show more

Certificates

Certification
FCC 15
show more

Logistics data

Harmonized System (HS) code
85176990
show more
