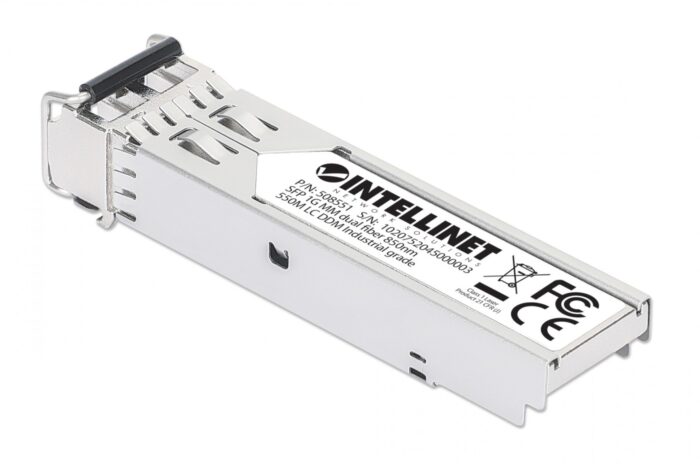

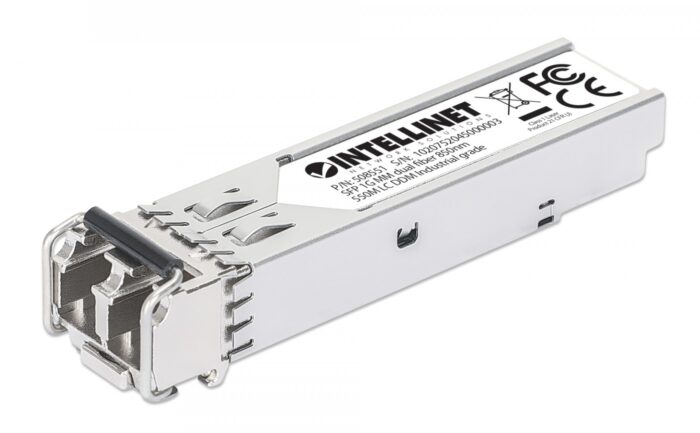

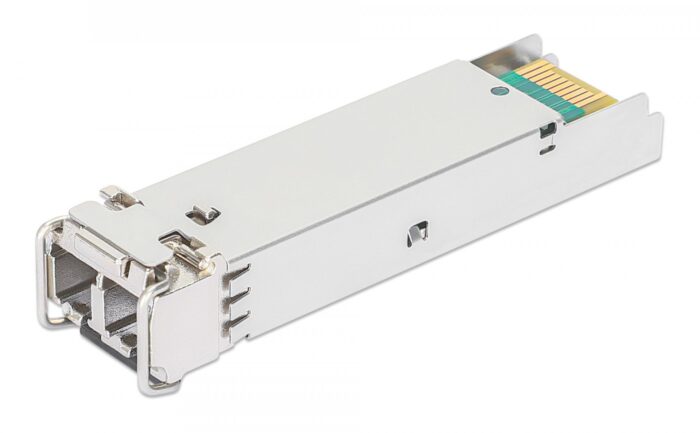

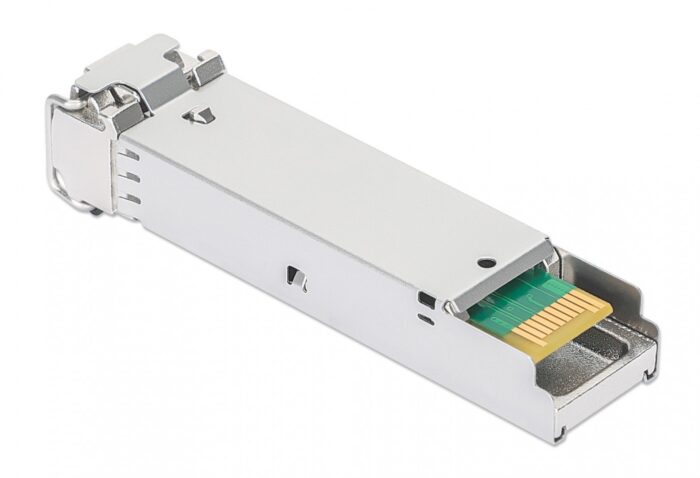

Intellinet 1GBase-SX LC MM Mini-GBIC Transceiver, Part Number: 508551

Introducing the Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module, designed for 1000Base-SX (LC) connections with a multi-mode port, offering a transmission distance of up to 550 meters. It is MSA-compliant to ensure maximum compatibility. This product features a fiber optic SFP transceiver type and supports a maximum data transfer rate of 1000 Mbit/s. The interface type is SFP, and it boasts a sleek silver color with a sturdy metal housing. It is compatible with MSA standards and operates at a maximum voltage of 3.3 V with a typical power consumption of 1 W. The transceiver holds several compliance certificates, including CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, and UKCA. Its dimensions are compact, with a width of 14 mm, a depth of 57 mm, and a height of 12 mm.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Interface type
SFP
show more


Multi-mode fiber (MMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
show more


SFP transceiver standard
SX
show more


Maximum transfer distance
Maximum transfer distance
550 m
show more


Wavelength
Wavelength
850 nm
show more


Tx power (min)
-9 dBmW
show more


Tx power (max)
-3 dBmW
show more


Link budget
9 dB
show more


Networking standards
Networking standards
IEEE 802.3z
show more


Fiber ethernet cabling technology
1000BASE
show more


Duplex system
Duplex system
Full
show more


Digital Diagnostics Monitoring (DDM)
Yes
show more

Features

Product colour
Product colour
Silver
show more


Housing material
Housing material
Metal
show more


Hot-Plug support
Hot-Plug support
Yes
show more


Brand compatibility
Brand compatibility
MSA Compliant
show more

Power

Maximum voltage
3.3 V
show more


Power consumption (typical)
Power consumption (typical)
1 W
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA
show more

Sustainability

Sustainability compliance
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 75 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
14 mm
show more


Depth
Depth
57 mm
show more


Height
Height
12 mm
show more


Weight
Weight
20 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package width
Package width
56 mm
show more


Package depth
Package depth
120 mm
show more


Package height
Package height
24 mm
show more


Package weight
Package weight
50 g
show more


Package type
Package type
Box
show more

Logistics data

Master (outer) case width
200 mm
show more


Master (outer) case length
310 mm
show more


Master (outer) case height
250 mm
show more


Master (outer) case gross weight
2.6 kg
show more


Products per master (outer) case
48 pc(s)
show more
