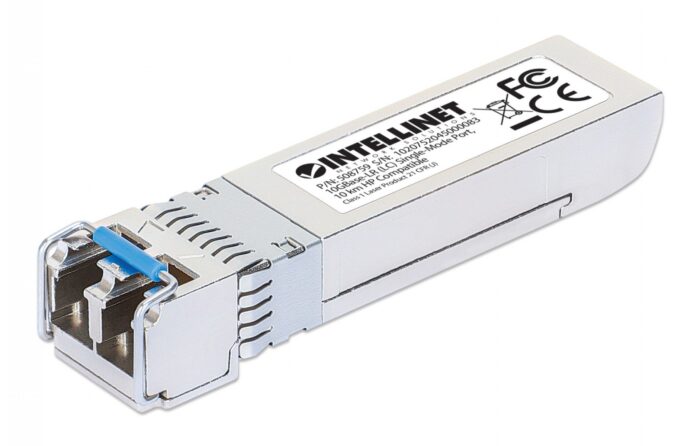

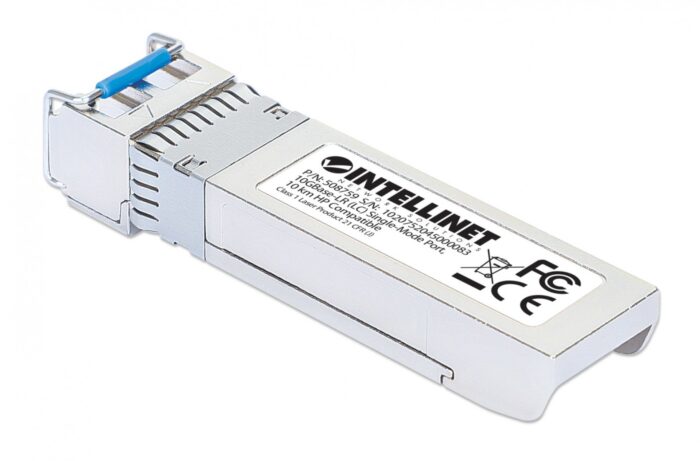

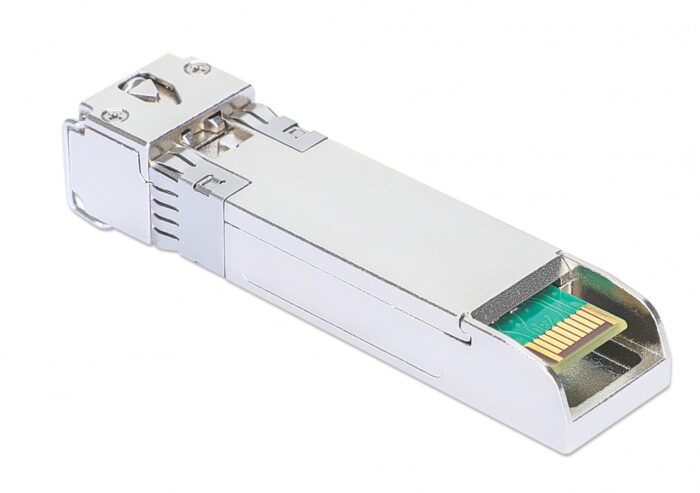

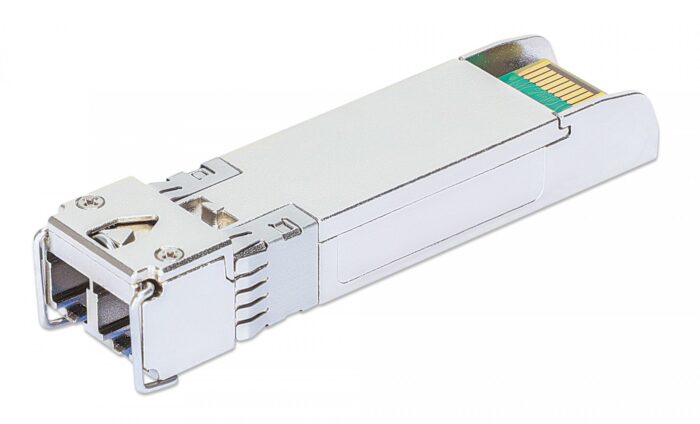

Intellinet Mini-GBIC 10GBase-LR LC SM 10km Transceiver

The Intellinet Transceiver Module is an optical 10 Gigabit fiber module designed for high-speed data transfer. It features a 10GBase-LR (LC) single-mode port with a reach of up to 300 meters and operates at a wavelength of 1310nm. This transceiver is compatible with Ethernet and fiber networks and is HPE compliant, equivalent to models HPE J9151A, J9151D, JD094A, and JD094B. It comes with a three-year warranty. The transceiver is a fiber optic type with a maximum data transfer rate of 10000 Mbit/s and utilizes an SFP+ interface. It has a sleek silver color, and its housing is made of durable metal. The maximum voltage the transceiver uses is 3.3 V, and it has a typical power consumption of 1 W. It meets various compliance standards, including CE, FCC, NDAA, and RoHS. In terms of dimensions, the transceiver is 14 mm wide, 57 mm deep, and 12 mm high.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
10000 Mbit/s
show more


Interface type
SFP+
show more


Single-mode fiber (SMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more


SFP transceiver standard
LR
show more


Maximum transfer distance
Maximum transfer distance
10000 m
show more


Wavelength
Wavelength
1310 nm
show more


Tx power (min)
-6 dBmW
show more


Tx power (max)
-0.5 dBmW
show more


Link budget
9 dB
show more


Networking standards
Networking standards
IEEE 802.3ae, IEEE 802.3z
show more


Fiber ethernet cabling technology
10GBASE
show more


Duplex system
Duplex system
Full
show more


Digital Diagnostics Monitoring (DDM)
Yes
show more

Features

Product colour
Product colour
Silver
show more


Housing material
Housing material
Metal
show more


Hot-Plug support
Hot-Plug support
Yes
show more

Power

Maximum voltage
3.3 V
show more


Power consumption (typical)
Power consumption (typical)
1 W
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS
show more

Sustainability

Sustainability compliance
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more

Weight & dimensions

Width
Width
14 mm
show more


Depth
Depth
57 mm
show more


Height
Height
12 mm
show more


Weight
Weight
20 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package width
Package width
56 mm
show more


Package depth
Package depth
120 mm
show more


Package height
Package height
24 mm
show more


Package weight
Package weight
50 g
show more


Package type
Package type
Box
show more

Logistics data

Master (outer) case width
200 mm
show more


Master (outer) case length
310 mm
show more


Master (outer) case height
250 mm
show more


Master (outer) case gross weight
2.6 kg
show more


Products per master (outer) case
48 pc(s)
show more
