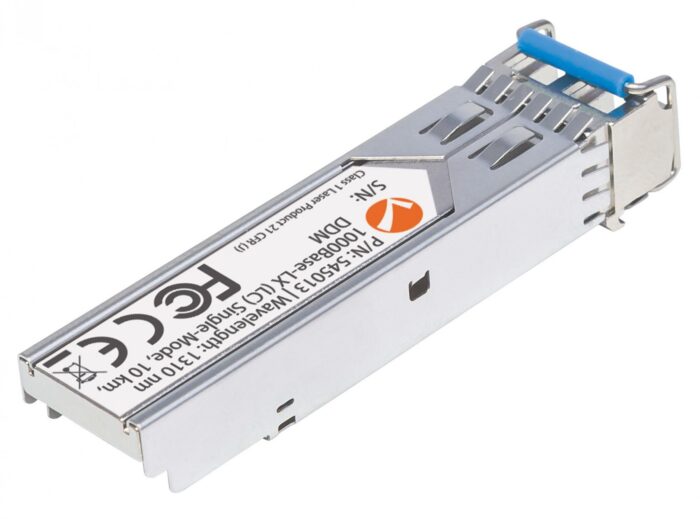

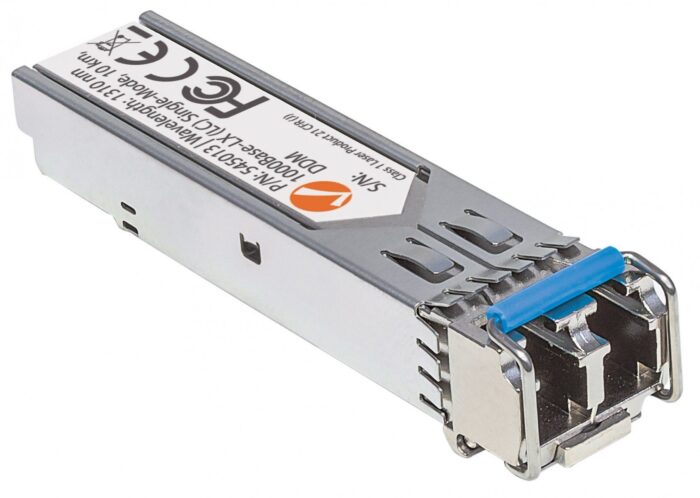

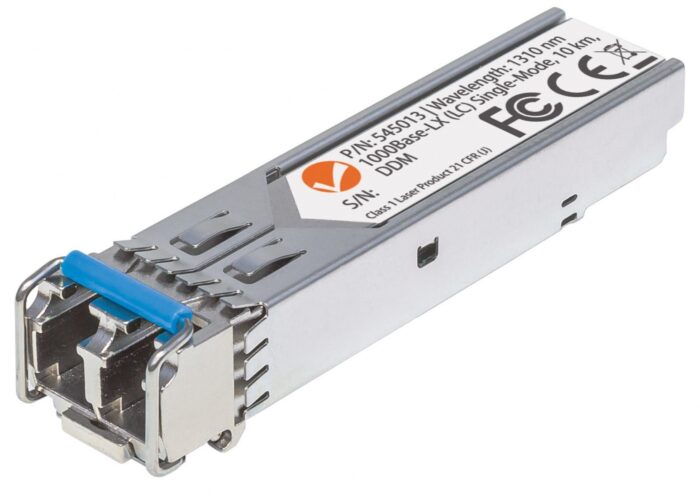

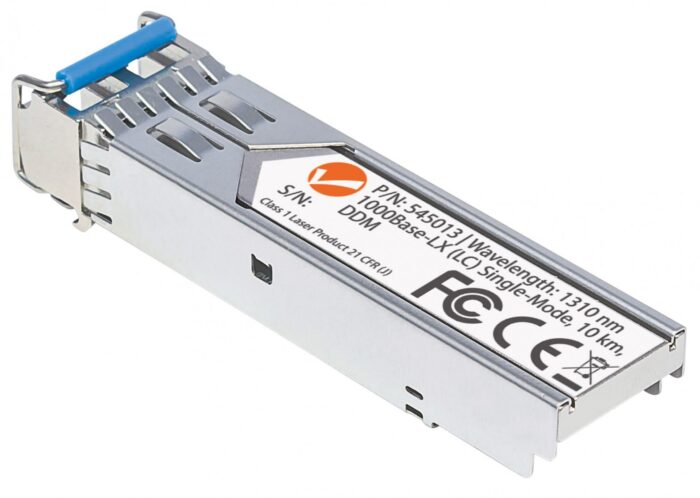

Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Fibre, Three Year Warranty

Intellinet Transceiver Module Optical is a gigabit fiber SFP with a 1000Base-Lx (LC) single-mode port capable of transmitting data over a distance of 10 km. It is MSA compliant and equivalent to the Cisco GLC-LH-SM model. This product is designed for fiber connections and comes with a three-year warranty. The SFP transceiver type is fiber optic, offering a maximum data transfer rate of 1000 Mbit/s and utilizing an SFP interface type. The product is aluminum in color. It requires an input voltage of 3.3 V and has a typical power consumption of 1 W. Compliance with RoHS standards is ensured, and it is certified by FCC Class A and holds a CE mark. The dimensions of the transceiver are 14 mm in width, 57 mm in depth, and 12 mm in height.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Interface type
SFP
show more


Single-mode fiber (SMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more


Maximum transfer distance
Maximum transfer distance
10000 m
show more


Wavelength
Wavelength
1310 nm
show more


Tx power (min)
-8 dBmW
show more


Tx power (max)
-3 dBmW
show more


Link budget
14 dB
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3z
show more


Duplex system
Duplex system
Full
show more

Features

Product colour
Product colour
Aluminium
show more


Hot-Plug support
Hot-Plug support
Yes
show more

Power

Input voltage
Input voltage
3.3 V
show more


Power consumption (typical)
Power consumption (typical)
1 W
show more

Certificates

Compliance certificates
RoHS
show more


Certification
FCC Class A, CE Mark
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more

Weight & dimensions

Width
Width
14 mm
show more


Depth
Depth
57 mm
show more


Height
Height
12 mm
show more


Weight
Weight
18 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Logistics data

Harmonized System (HS) code
85369010
