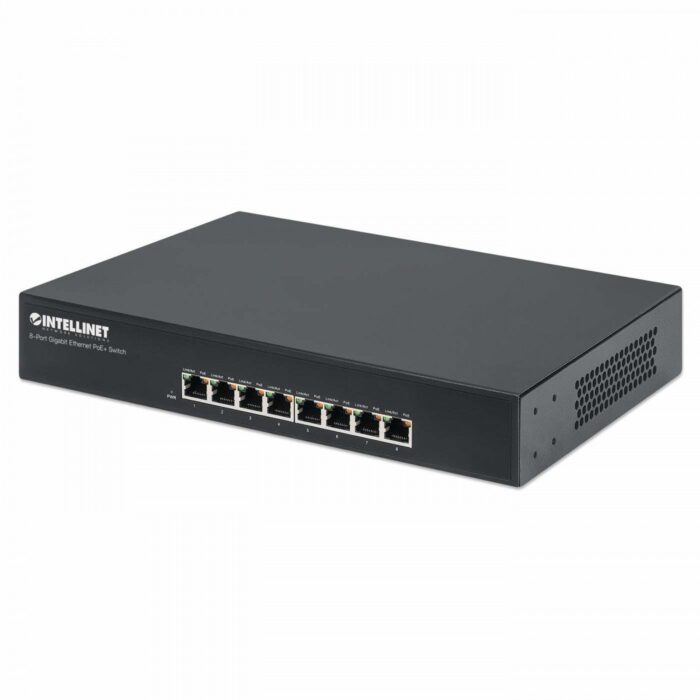

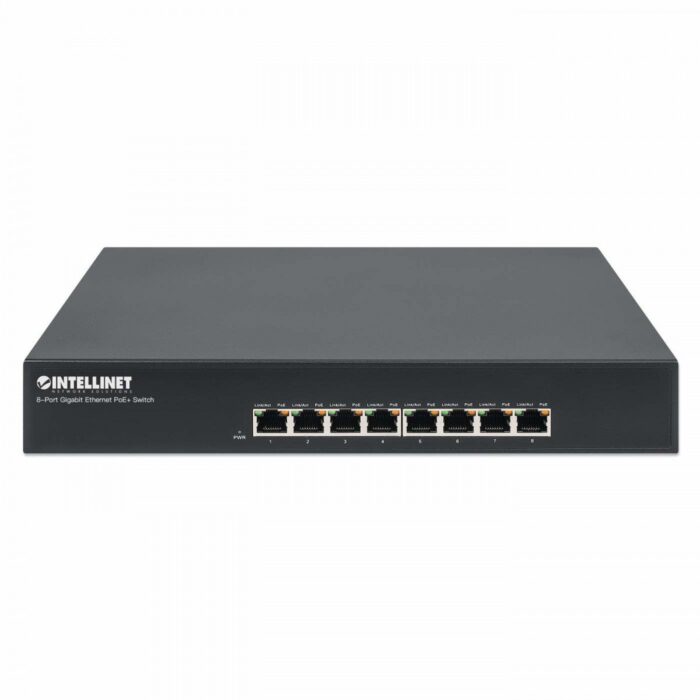

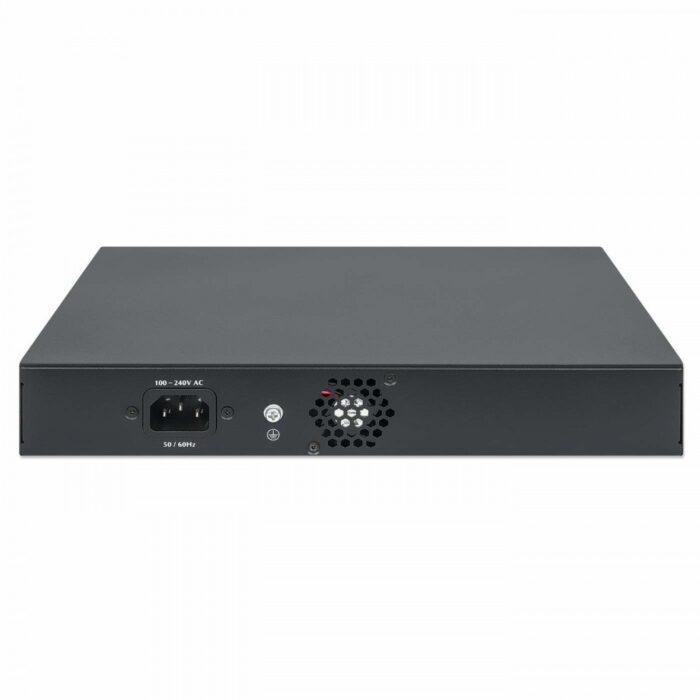

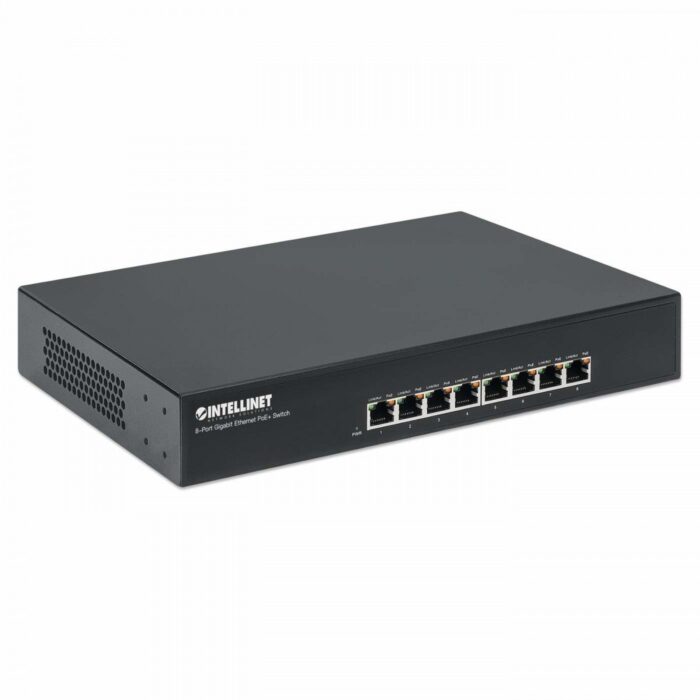

8-Port Gigabit Ethernet PoE+ Switch – 8 x PoE Ports – IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE) – Endspan – Desktop (Euro 2-pin Plug) – Gigabit Ethernet (10/100/1000) – Full Duplex – Power Over E

The Intellinet 8-Port Gigabit Ethernet PoE+ Switch features 8 PoE ports that comply with IEEE 802.3at/af Power-over-Ethernet standards. Designed for endspan application, this desktop switch provides basic switching capabilities with RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. It comes equipped with 8 Ethernet ports and functions in full duplex mode. The device can hold up to 8000 MAC address entries and has a switching capacity of 16 Gbit/s. It conforms to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The switch is powered through a DC-in jack and supports Power over Ethernet (PoE). Additionally, it is suitable for rack mounting.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
show more


Full duplex
Full duplex
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Packet buffer memory
256 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
150 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Other features

Power LED
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
280 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more


Weight
Weight
2 kg
show more

Packaging content

Cables included
AC
show more


Manual
Yes
show more

Certificates

Certification
FCC Class B, VCCI Class B, CE, RoHS, EN 60950-1
show more

Logistics data

Harmonized System (HS) code
85176990
