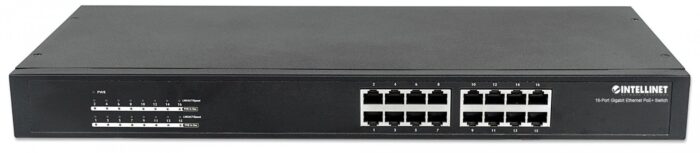

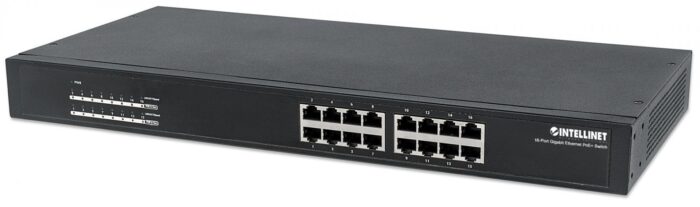

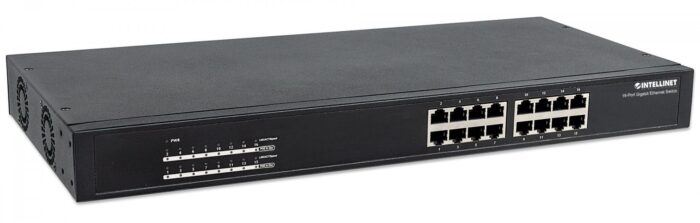

Intellinet 16-port Gigabit Ethernet Rackmount PoE+ Switch, Part Number: 560993

The Intellinet 16-Port Gigabit Ethernet PoE+ Switch features 16 PoE ports and supports IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE). Designed for endspan operation, it is ideal for rackmount installations. This unmanaged switch operates at Layer 2 and offers Gigabit Ethernet capabilities (10/100/1000) across its 16 basic switching RJ-45 Ethernet ports. The switch supports full duplex communication and houses a MAC address table with 8192 entries, providing a switching capacity of 32 Gbit/s. It adheres to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x. The switch also includes Power over Ethernet functionality and is designed in a 1U form factor for rack mounting.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
16
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Forwarding rate
1.488 Mpps
show more


MAC address table
MAC address table
8192 entries
show more


Store-and-forward
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more

Performance

Buffer size
Buffer size
256 KB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
260 W
show more


Power protection features
Power protection features
Over voltage, Overload, Short circuit
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
442 mm
show more


Depth
Depth
208 mm
show more


Height
Height
44 mm
show more


Weight
Weight
3.8 kg
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


Manual
Yes
show more

Certificates

Certification
FCC Class B, VCCI Class A, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
