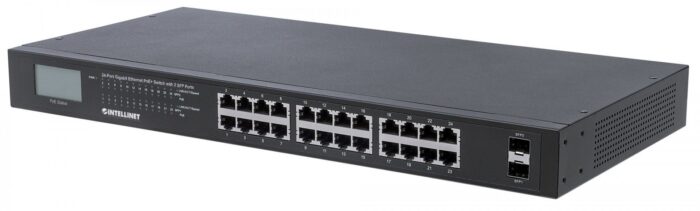

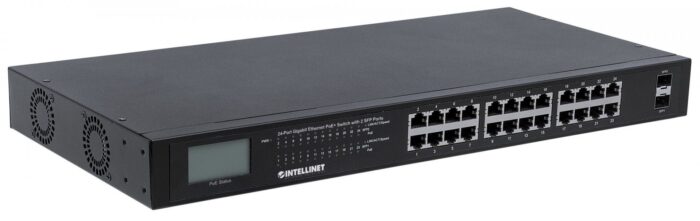

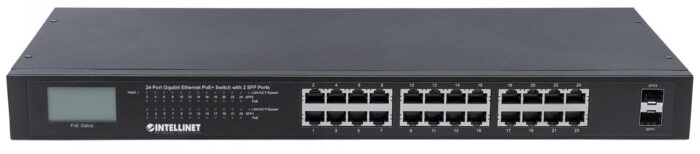

Intellinet 24-Port Gigabit PoE+ Switch with 2 SFP Ports – 370W

The Intellinet 24-Port Gigabit Ethernet PoE+ Switch features a total of 24 RJ-45 Gigabit Ethernet ports and 2 additional SFP ports. It includes an LCD display and is compliant with IEEE 802.3at/af standards for Power over Ethernet (PoE+/PoE). With a maximum power output of 370 watts, this switch supports endspan operation. Designed for convenience, it is a 19-inch rack mountable device and is categorized as an unmanaged switch. The RJ-45 Ethernet ports offer gigabit speed in both 10/100/1000 Mbps. The switch operates with full duplex capability, includes a MAC address table that can store up to 8192 entries, and has a switching capacity of 52 Gbit/s. It complies with multiple networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The switch also supports Power over Ethernet (PoE) and has a compact 1U form factor for efficient rack mounting.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat5, Cat5e
show more


Full duplex
Full duplex
Yes
show more


Auto-sensing
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
52 Gbit/s
show more


MAC address table
MAC address table
8192 entries
show more


Store-and-forward
Yes
show more


Packet forwarding rate (10 Mbps)
14880 pps
show more


Packet forwarding rate (1 Gbps)
1488000 pps
show more


Packet forwarding rate (100 Mbps)
148800 pps
show more


Packet buffer memory
0.512 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, PoE, Power, Speed
show more


Number of fans
Number of fans
2 fan(s)
show more

Performance

Noise level
Noise level
21.3 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
144000 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
420 W
show more


Power protection features
Power protection features
Over voltage, Overload, Short circuit
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
24
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
370 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
441.1 mm
show more


Depth
Depth
204.3 mm
show more


Height
Height
44 mm
show more


Weight
Weight
4 kg
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


Manual
Yes
show more

Certificates

Certification
FCC Class A, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
