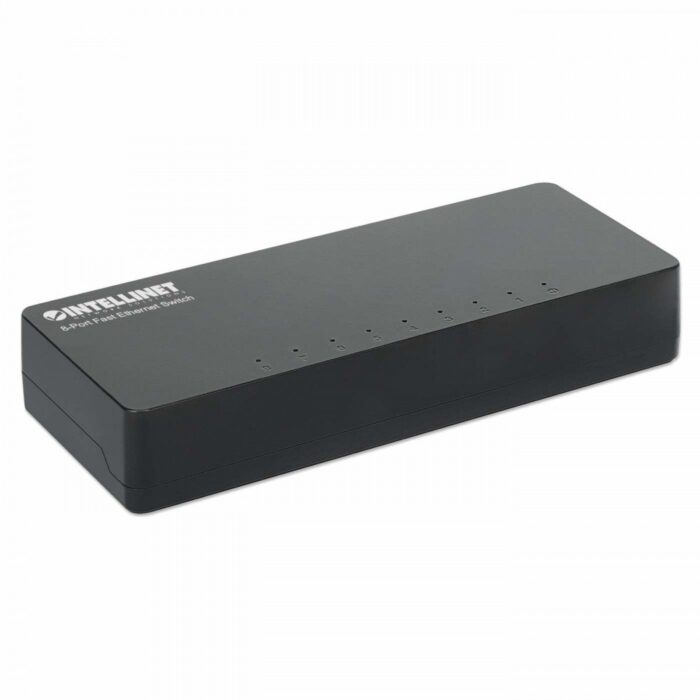

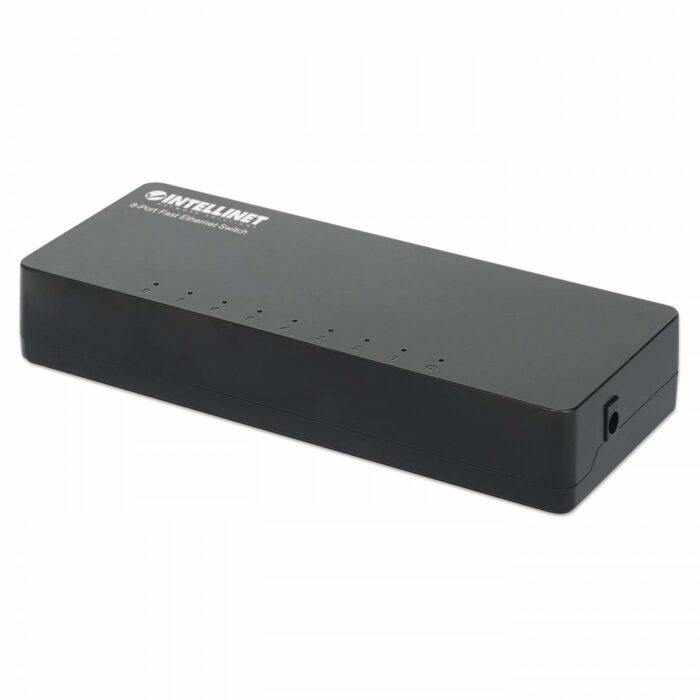

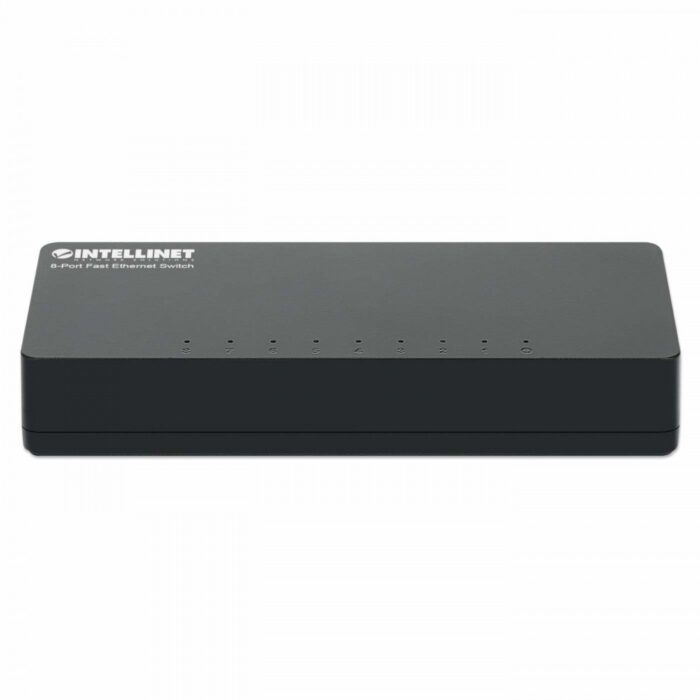

Intellinet 8-Port Fast Ethernet Switch 561730 in Black

The Intellinet 561730 is a networking device featuring basic switching functions with RJ-45 Ethernet ports that support Fast Ethernet (10/100). It is equipped with 8 RJ-45 ports for connectivity. The switch operates in full duplex mode, allowing for simultaneous bidirectional data transmission, enhancing communication efficiency. It has a MAC address table capable of handling up to 1000 entries, allowing for robust network management. The device boasts a switching capacity of 1.6 Gbit/s, ensuring responsive and efficient data handling and traffic management. It adheres to several networking standards, specifically IEEE 802.3, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility and performance reliability in various networking environments.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Cable types supported
Cat3, Cat4, Cat5, Cat6
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.6 Gbit/s
show more


Forwarding rate
1.19 Mpps
show more


MAC address table
MAC address table
1000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
16000
show more


Packet buffer memory
0.5 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power, Speed
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


Input current
0.55 A
show more


Input voltage
Input voltage
5 V
show more


Power consumption (max)
Power consumption (max)
1.26 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
51 mm
show more


Depth
Depth
124 mm
show more


Height
Height
21 mm
show more


Weight
Weight
150 g
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more


Manual
Yes
show more

Certificates

Certification
FCC Class B, CE, RoHS, UKCA, NDAA
show more
