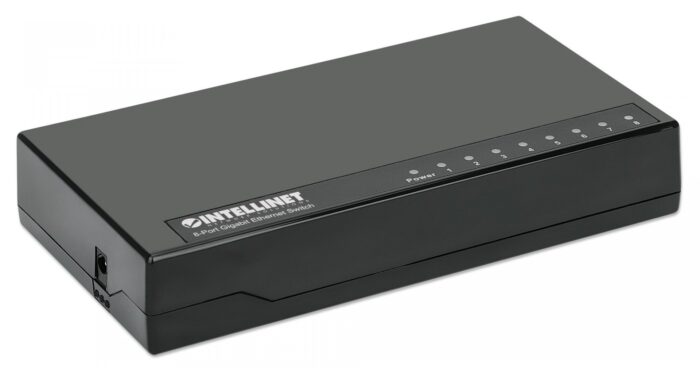

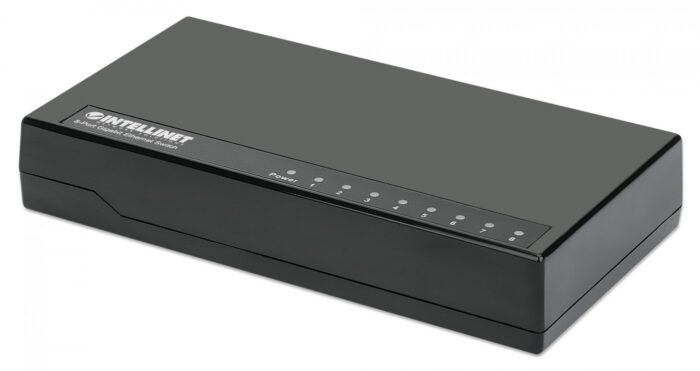

Intellinet 8-Port Gigabit Ethernet Switch, Part Number 561754

The Intellinet 8-Port Gigabit Ethernet Switch is designed for desktop use and comes in a sleek black plastic casing. It features IEEE 802.3az technology, also known as Energy Efficient Ethernet, providing energy savings without compromising performance. This switch includes eight RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. It operates in full duplex mode and can support a MAC address table with up to 4000 entries. With a total switching capacity of 16 Gbps, this switch adheres to various networking standards including IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The device operates with a DC input voltage of 5 volts.

Ports & interfaces

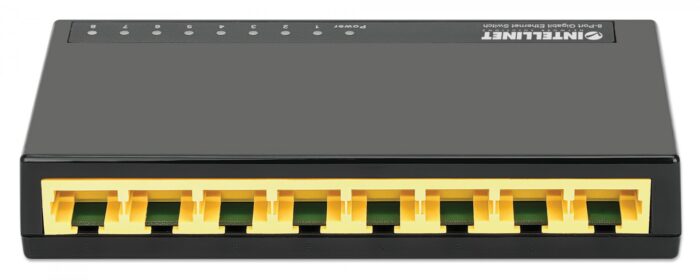

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 10BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat6
show more


Full duplex
Full duplex
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Forwarding rate
11.9 Mpps
show more


MAC address table
MAC address table
4000 entries
show more


Jumbo frames support
Yes
show more


Packet buffer memory
1.5 MB
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Plastic
show more


LED indicators
Activity, Link, Power, Speed
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
5 V
show more


Power consumption (max)
Power consumption (max)
4 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
53 mm
show more


Depth
Depth
125 mm
show more


Height
Height
22 mm
show more


Weight
Weight
150 g
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Certificates

Certification
FCC Class B, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
