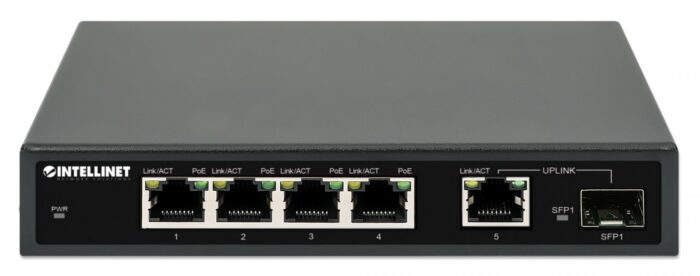

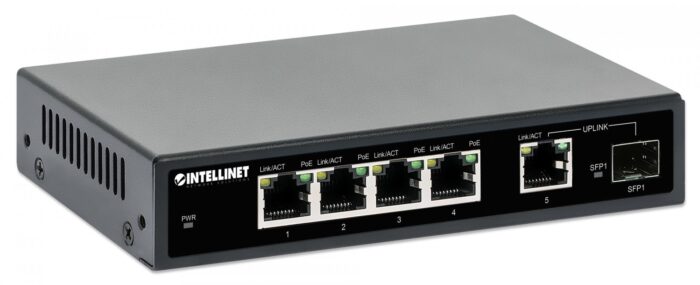

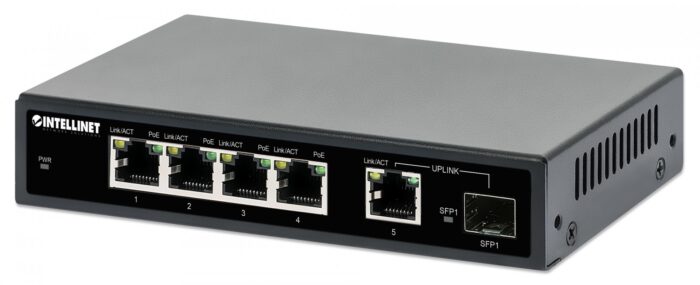

Intellinet 5-Port Gigabit PoE+ Switch with 1 SFP – 561822

The Intellinet 5-Port Gigabit Ethernet PoE+ Switch is designed with an SFP port and four PSE PoE ports. It is compliant with IEEE 802.3at/af (PoE+/PoE) standards, offering a PoE power budget of 91 watts. The switch can be placed on a desktop or mounted on a wall, providing flexibility for installation. It features five basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000). Additionally, it has one installed SFP module. The device is capable of handling up to 2000 MAC address entries and offers a switching capacity of 12 Gbit/s. The networking standards supported include IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x. This switch also supports Power over Ethernet (PoE) functionality and is wall mountable.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Installed SFP modules quantity
Installed SFP modules quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
12 Gbit/s
show more


Forwarding rate
8928 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, PoE, Power
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
96 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
91 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
20 – 85%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
153 mm
show more


Depth
Depth
86 mm
show more


Height
Height
29 mm
show more


Weight
Weight
800 g
show more

Packaging content

Cables included
AC
show more


Manual
Yes
show more

Packaging data

Package weight
Package weight
925 g
show more

Certificates

Certification
FCC Class A, CE, RoHS, UKCA, NDAA
show more
