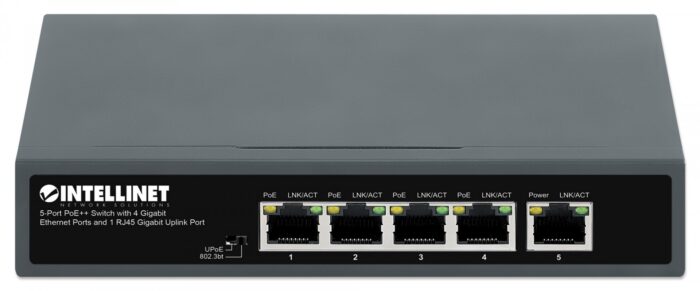

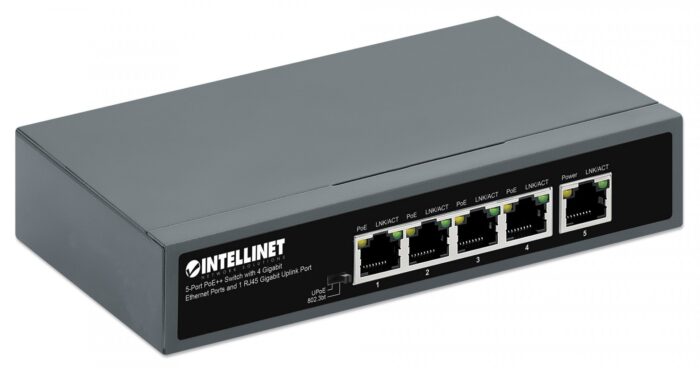

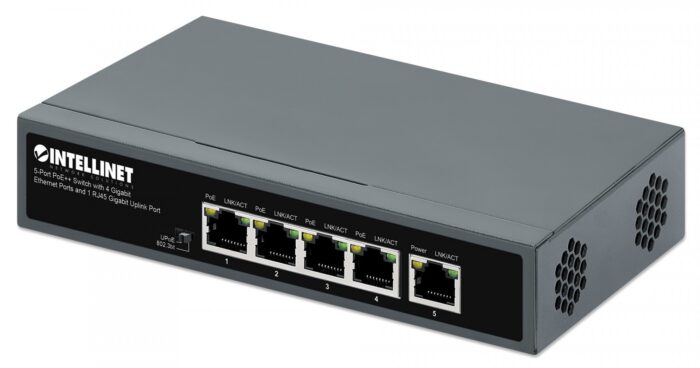

Intellinet 5-Port PoE++ Switch with 4 Gb and 1 RJ45 Gb Uplink-Port

The Intellinet 562010 is an unmanaged switch featuring five Gigabit Ethernet (10/100/1000) RJ-45 ports. It supports full duplex communication and has a MAC address table capable of storing up to 2000 entries. The switch offers a switching capacity of 10 Gbit/s and adheres to multiple networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, and IEEE 802.3x. It requires a DC input voltage of 55 volts and is equipped with a DC-in jack for power connection. The device is Power over Ethernet (PoE) capable and can be wall mounted for flexible installation.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat5e
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Auto-sensing
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Forwarding rate
7.44 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
1 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, PoE, Power
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
50000 h
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


DC input voltage
55 V
show more


Power consumption (max)
Power consumption (max)
150 W
show more


Power protection features
Power protection features
Over voltage, Overload, Short circuit, Surge protection
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet 4PPoE (PoE++) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
140 W
show more

Other features

Warranty period
3 year(s)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
168 mm
show more


Depth
Depth
94 mm
show more


Height
Height
32 mm
show more


Weight
Weight
395 g
show more

Packaging content

Cables included
AC
show more


Manual
Yes
show more

Packaging data

Package width
Package width
226 mm
show more


Package depth
Package depth
240 mm
show more


Package height
Package height
84 mm
show more


Package weight
Package weight
1.45 kg
show more

Certificates

Certification
FCC, CE, RoHS, UKCA, NDAA
show more

Logistics data

Master (outer) case width
254 mm
show more


Master (outer) case length
446 mm
show more


Master (outer) case height
486 mm
show more


Master (outer) case gross weight
15.2 kg
show more


Products per master (outer) case
10 pc(s)
show more
