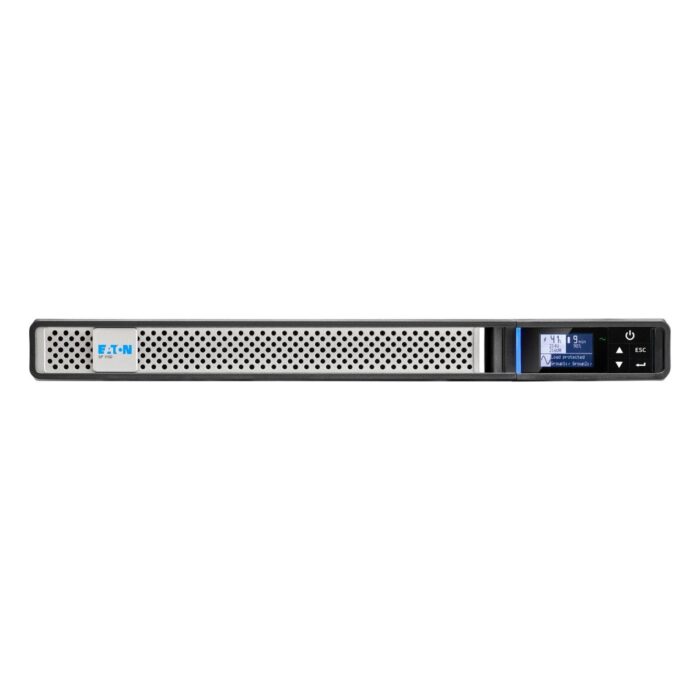

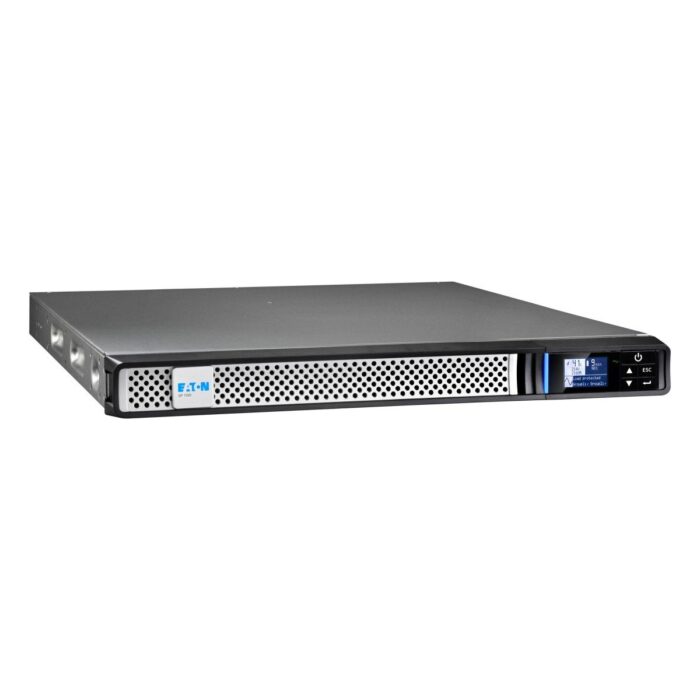

EATON UPS 5P 1150VA Gen2 Rack 1U 1-phase line-interactive

The Eaton 5P1150IRG2 is a line-interactive UPS that delivers an output power of 920 W with a sine waveform. It features C13 coupler AC outlet types and a C14 coupler power plug, providing a total of six AC outlets. This UPS utilizes sealed lead acid (VRLA) battery technology, with a battery capacity of 9 Ah and a voltage of 6 V. Designed in a tower form factor, it comes in a black and silver color scheme and has a rack capacity of 1U. The product meets various certifications, including IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, Cm, Ukr, KCC, cTUVus, and BIS.

Features

UPS topology
UPS topology
Line-Interactive
show more


Output power
Output power
920 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
150 V
show more


Input operation voltage (max)
Input operation voltage (max)
294 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output frequency
50/60 Hz
show more


Automatic Voltage Regulation (AVR)
Yes
show more


Heat dissipation
Heat dissipation
465 BTU/h
show more


Number of input phases
1
show more


Number of output phases
1
show more


Efficiency
98.2%
show more


Noise level
Noise level
35 dB
show more

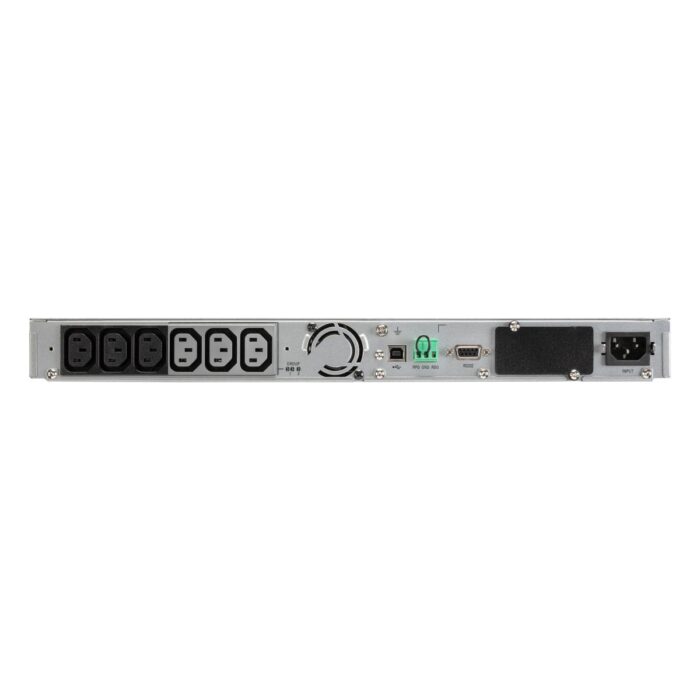

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler
show more


Power plug
Power plug
C14 coupler
show more


AC outlets quantity
AC outlets quantity
6 AC outlet(s)
show more


USB port
USB port
Yes
show more


USB port type
USB Type-B
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


Serial ports quantity
Serial ports quantity
1
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
Battery capacity
9 Ah
show more


Battery voltage
Battery voltage
6 V
show more


Number of batteries supported
Number of batteries supported
4
show more

Design

Form factor
Form factor
Tower
show more


Rack capacity
Rack capacity
1U
show more


Product colour
Product colour
Black, Silver
show more


Display type
Display type
LCD
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Operating altitude
0 – 3000 m
show more

Packaging content

Manual
Yes
show more


Quick installation guide
Yes
show more

Certificates

Certification
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
509 mm
show more


Height
Height
43.2 mm
show more


Weight
Weight
14.2 kg
show more
