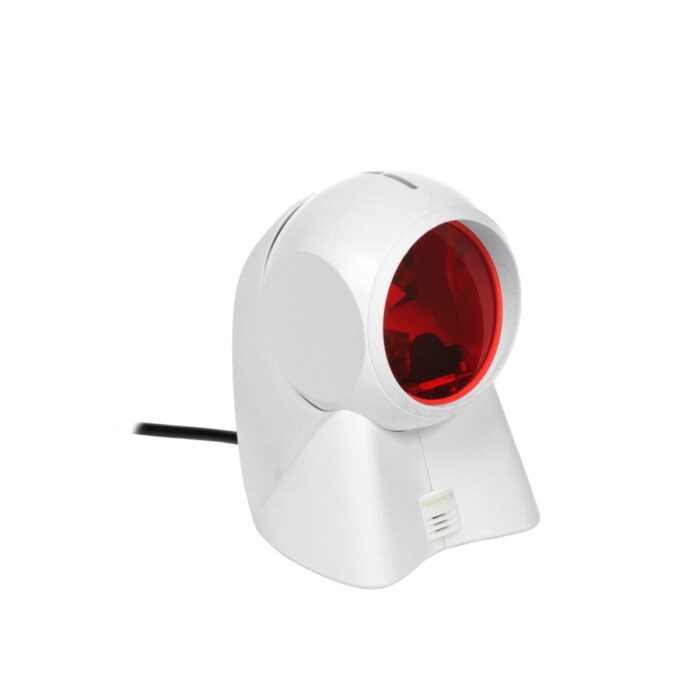

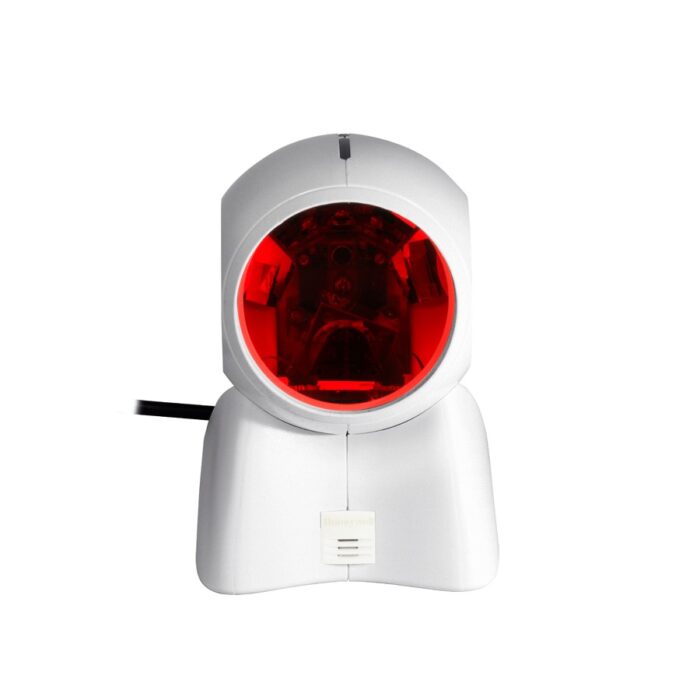

Honeywell Orbit 7190g, 1D, 2D, Multi-IF, White

The Honeywell Orbit 7190g is a handheld barcode reader designed to efficiently scan both 1D and 2D barcodes. It employs a laser sensor for accurate detection and recognition. The device is equipped with wired connectivity technology, with standard interfaces including Keyboard Wedge, RS-232, RS-485, and USB, providing versatile options for connection. The product is white in color and features LED indicators that display status information. It meets CE and RoHS certification standards, ensuring compliance with safety and environmental regulations.

The barcode reader is powered by a DC power source, requiring an input voltage of 5 V and has a power consumption of 472 mA. With a weight of 410 grams, the device is relatively lightweight, making it easy to handle and operate. The dimensions of the Honeywell Orbit 7190g are 103 mm in width and 108 mm in depth, suggesting a compact design suitable for various retail and commercial environments.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Code 39, GS1 DataBar Omnidirectional, U.P.C.
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Data Matrix, PDF417, QR Code
show more


Sensor type
Sensor type
Laser
show more


Working distance
32.7 cm
show more


Read rate (max)
1120 reads/s
show more


Light levels (direct sunlight)
4842 – 100000 lx
show more


Pitch reading angle
0 – 60°
show more


Yaw reading angle
0 – 70°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
Keyboard wedge, RS-232, RS-485, USB
show more

Performance

LED indicators
Status
show more


Built-in display
Built-in display
No
show more


Product colour
Product colour
White
show more


Certification
CE, RoHS
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
472 mA
show more

Weight & dimensions

Width
Width
103 mm
show more


Depth
Depth
108 mm
show more


Height
Height
148 mm
show more


Weight
Weight
410 g
show more

Packaging data

Cables included
USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
