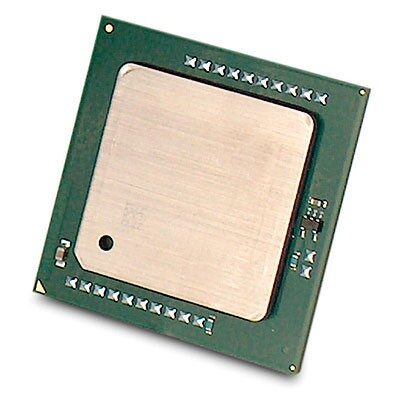

Hewlett Packard Enterprise Intel Xeon E5-2680 v4 Processor 2.4 GHz 35 MB Smart Cache

The HPE Intel Xeon E5-2680 v4 is a high-performance processor designed for server applications. It belongs to the Intel Xeon E5 v4 processor family and uses an LGA 2011-v3 socket. The processor is built using 14 nm lithography, providing efficient performance and power consumption. It supports quad-channel memory architecture and can accommodate up to 1.54 TB of DDR4-SDRAM memory, ensuring high-speed data processing and multitasking capabilities. This processor is aimed at the server market segment and supports AVX 2.0 instruction sets, offering advanced vector processing capabilities. It is designed for scalability, supporting configurations with up to two processors (2S scalability). The Xeon E5-2680 v4 is compatible with the HPE ML350 GEN9 server, making it an ideal choice for businesses looking to expand their server capabilities.

Processor

Processor model
Processor model
E5-2680V4
show more


Processor base frequency
2.4 GHz
show more


Processor family
Processor family
Intel® Xeon® E5 v4
show more


Processor cores
Processor cores
14
show more


Processor socket
Processor socket
LGA 2011-v3
show more


Component for
Component for
Server/workstation
show more


Processor lithography
Processor lithography
14 nm
show more


Processor series
Intel Xeon E5-2600 v4
show more


Processor threads
28
show more


System bus rate
System bus rate
9.6 GT/s
show more


Processor operating modes
Processor operating modes
64-bit
show more


Processor boost frequency
Processor boost frequency
3.3 GHz
show more


Processor cache
35 MB
show more


Processor cache type
Smart Cache
show more


Thermal Design Power (TDP)
120 W
show more


Cooler included
Cooler included
No
show more


Stepping
M0
show more


Bus type
QPI
show more


Number of QPI links
2
show more


Memory bandwidth supported by processor (max)
76.8 GB/s
show more


Processor codename
Broadwell
show more

Memory

Maximum internal memory supported by processor
1.54 TB
show more


Memory types supported by processor
DDR4-SDRAM
show more


Memory clock speeds supported by processor
1600,1866,2133,2400 MHz
show more


Memory channels
Quad-channel
show more


ECC
ECC
Yes
show more

Graphics

Discrete graphics card
No
show more


On-board graphics card
On-board graphics card
No
show more

Features

Execute Disable Bit
Yes
show more


Thermal Monitoring Technologies
Yes
show more


Idle States
Yes
show more


Market segment
Server
show more


Maximum number of PCI Express lanes
40
show more


PCI Express slots version
3.0
show more


Supported instruction sets
AVX 2.0
show more


Physical Address Extension (PAE)
46 bit
show more


Embedded options available
Yes
show more


Physical Address Extension (PAE)
Yes
show more


Scalability
2S
show more


CPU configuration (max)
2
show more

Processor special features

Intel Trusted Execution Technology
Yes
show more


Intel® Hyper Threading Technology (Intel® HT Technology)
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
show more


Intel® AES New Instructions (Intel® AES-NI)
Intel® AES New Instructions (Intel® AES-NI)
Yes
show more


Enhanced Intel SpeedStep Technology
Yes
show more


Intel Flex Memory Access
No
show more


Intel® Turbo Boost Technology
Intel® Turbo Boost Technology
2.0
show more


Intel® Identity Protection Technology (Intel® IPT)
Intel® Identity Protection Technology (Intel® IPT)
No
show more


Intel Virtualization Technology (VT-x)
Intel Virtualization Technology (VT-x)
Yes
show more


Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
show more


Intel® vPro™ Platform Eligibility
Yes
show more


Intel 64
Yes
show more


Intel VT-x with Extended Page Tables (EPT)
Yes
show more


Intel Demand Based Switching
Yes
show more


Intel® Secure Key
Intel® Secure Key
Yes
show more


Intel TSX-NI
Yes
show more


Intel® OS Guard
Intel® OS Guard
Yes
show more

Operational conditions

Tcase
86 °C
show more

Other features

Compatibility
Compatibility
ML350 GEN9
show more
