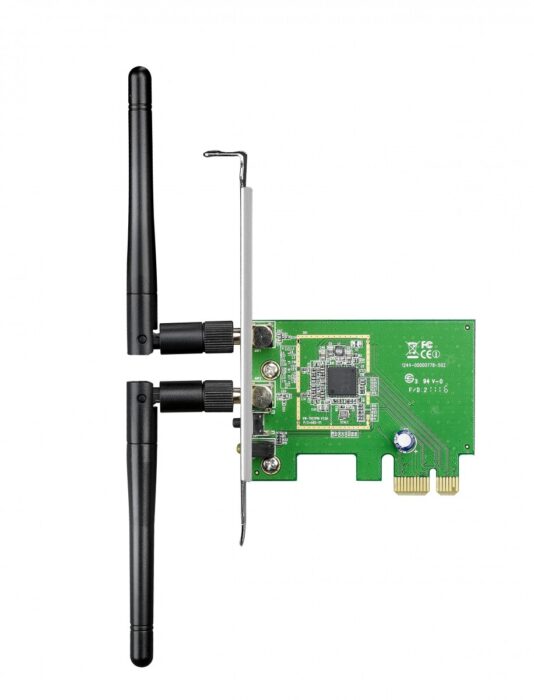

ASUS PCE-N15 Internal WLAN 300 Mbit/s

The ASUS PCE-N15 is an internal wireless network card designed for seamless connectivity. It uses a PCI Express host interface to connect with your device's motherboard, providing a wireless LAN (WLAN) interface. The card supports a maximum data transfer rate of up to 300 Mbit/s, ensuring efficient data transmission for your internet activities. It adheres to the Wi-Fi 4 (802.11n) standard, operating on a single 2.4 GHz band to deliver stable and reliable wireless performance.

Ports & interfaces

Connectivity technology
Connectivity technology
Wireless
show more


Host interface
Host interface
PCI Express
show more


Interface
Interface
WLAN
show more

Network

Maximum data transfer rate
Maximum data transfer rate
300 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
show more


Wi-Fi
Wi-Fi
Yes
show more


Wi-Fi band
Wi-Fi band
Single-band (2.4 GHz)
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
show more


Wi-Fi standards
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
show more


Modulation
Modulation
OFDM
show more


Security algorithms
Security algorithms
128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
show more

Design

Internal
Internal
Yes
show more


Antenna connector type
Antenna connector type
R-SMA
show more


Certification
CE, FCC, C-Tick, IC
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 98, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 65 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
120.5 mm
show more


Depth
Depth
21.6 mm
show more


Height
Height
22 mm
show more


Weight
Weight
62.6 g
show more

Logistics data

Harmonized System (HS) code
85176990
show more

Other features

Channels quantity
Channels quantity
13 channels
show more


Output power description
b: 15 – 19 dBm, g: 13 – 17 dBm, n: 12 – 16 dBm
show more
