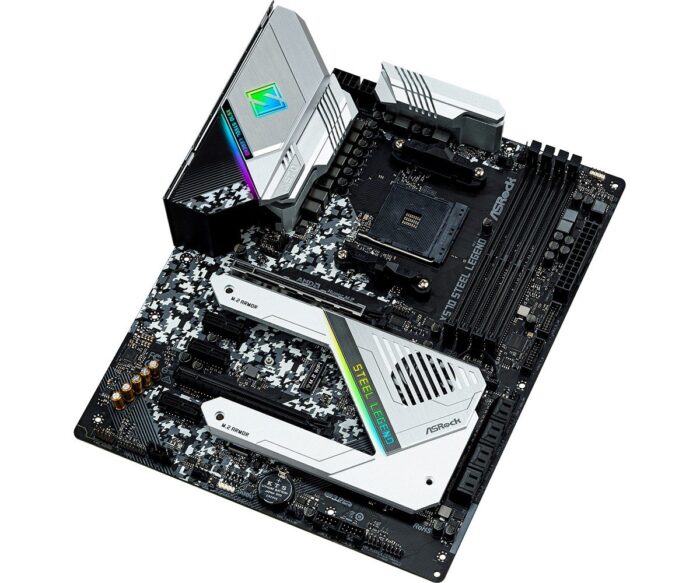

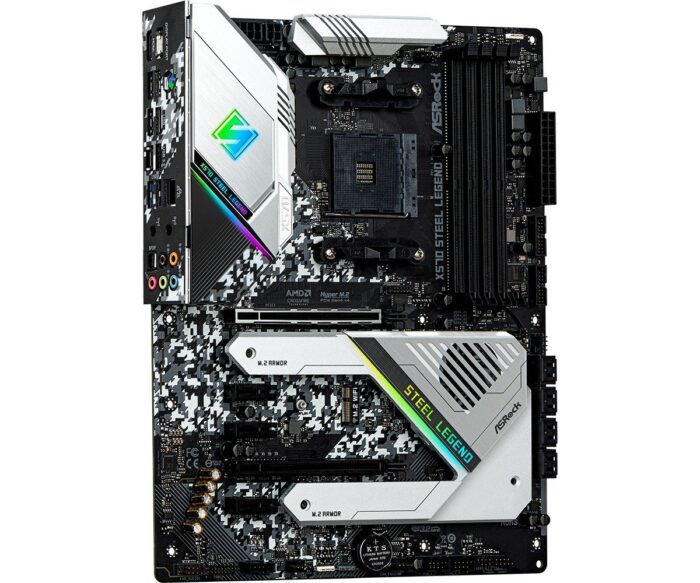

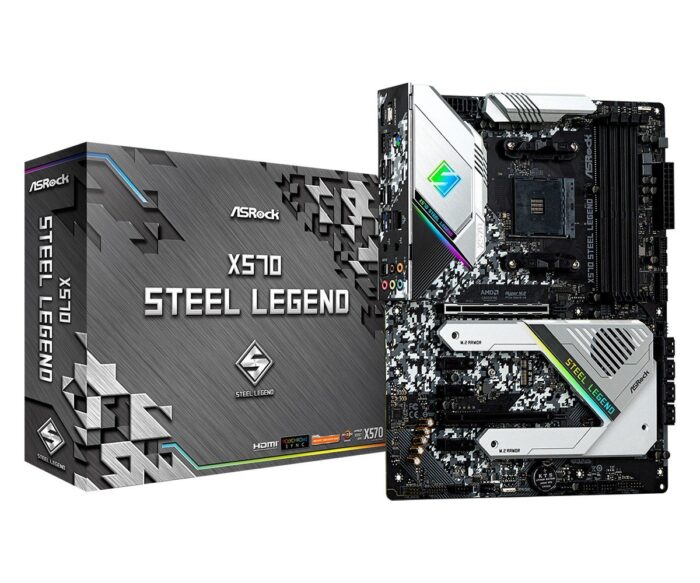

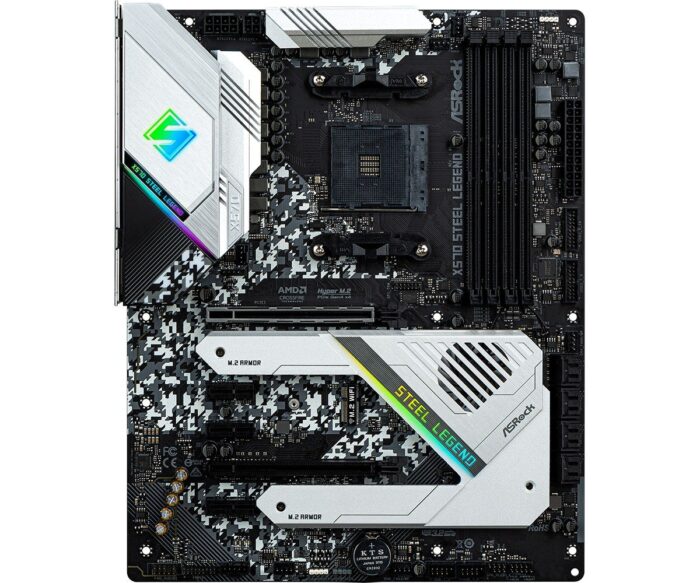

Asrock X570 Steel Legend AMD X570 Socket AM4 ATX

The Asrock X570 Steel Legend is equipped with a Socket AM4 and is compatible with AMD processors, specifically the AMD Ryzen 2000 and 3000 series. It supports DDR4-SDRAM memory types and has a maximum internal memory capacity of 128 GB, utilizing DIMM memory slots. For storage, it is compatible with M.2, PCI Express 3.0, and SATA III interfaces. The motherboard can support a maximum resolution of 4096 x 2160 pixels. In terms of networking, it features a Gigabit Ethernet interface, with the LAN controller being the Intel I211-AT.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Ryzen 2000 Series, AMD Ryzen 3000 Series
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2667,2933,3200,3466,3600,4133,4200,4266,4300,4400 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
show more

Graphics

Maximum resolution
Maximum resolution
4096 x 2160 pixels
show more


HDCP
HDCP
Yes
show more


DirectX version
DirectX version
12.0
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
4
show more


Peripheral (Molex) power connectors (4-pin)
Peripheral (Molex) power connectors (4-pin)
1
show more


EPS power connector (8-pin)
Yes
show more


Thunderbolt headers
1
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.0
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.2
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more


S/PDIF out port
S/PDIF out port
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I211-AT
show more


Wake-on-LAN ready
Yes
show more

Features

Motherboard chipset
Motherboard chipset
AMD X570
show more


Audio chip
Realtek ALC1220
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more


Certification
FCC, CE, ErP/EuP
show more

Expansion slots

Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more


ACPI version
5.1
show more


System Management BIOS (SMBIOS) version
2.3
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more


Height
Height
87 mm
show more

Other features

Weight
Weight
1.5 kg
show more


Number of M.2 (E) slots
1
show more
