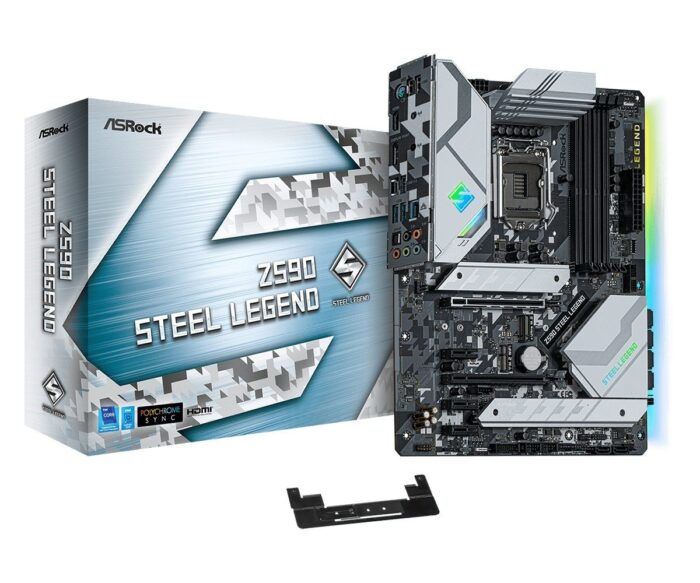

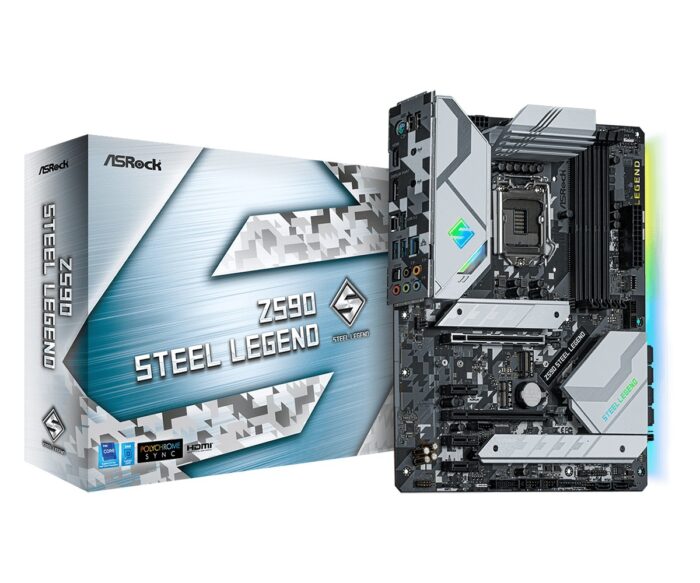

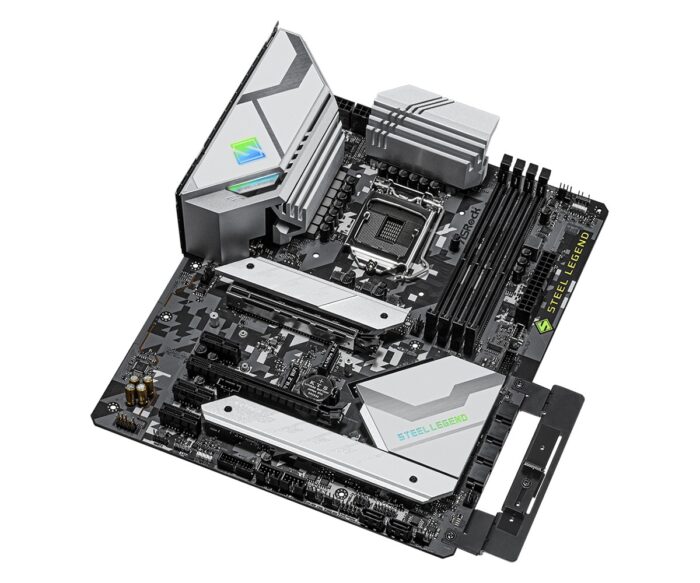

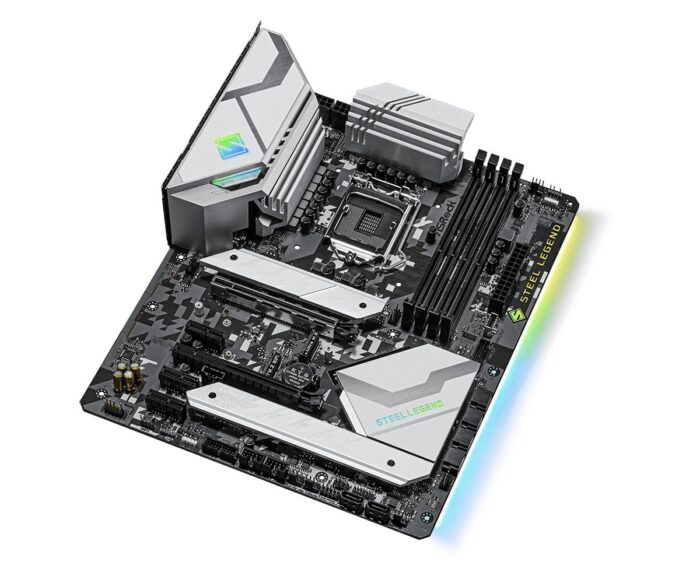

Asrock Z590 Steel Legend Intel Z590 LGA 1200 ATX

The Asrock Z590 Steel Legend is designed for use with Intel processors, featuring a processor socket of LGA 1200 (Socket H5). It is compatible with a range of Intel processor series, including Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, and Intel Pentium. The motherboard supports DDR4-SDRAM memory types and can accommodate up to 128 GB of internal memory through its DIMM memory slots. For storage, the Asrock Z590 Steel Legend features interfaces for M.2 and SATA III drives. Its Ethernet interface supports 2.5 Gigabit Ethernet, utilizing the Dragon RTL8125BG LAN controller. This ATX form factor motherboard is part of the Intel chipset family and is intended for use in PCs.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1200 (Socket H5)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4666,4800 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
6
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


12V power connector
Yes
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


S/PDIF out port
S/PDIF out port
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


LAN controller
Dragon RTL8125BG
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel Z590
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
3
show more


PCI Express x16 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.0
show more


System Management BIOS (SMBIOS) version
2.7
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more


Height
Height
70 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more

Other features

Weight
Weight
1 kg
show more
