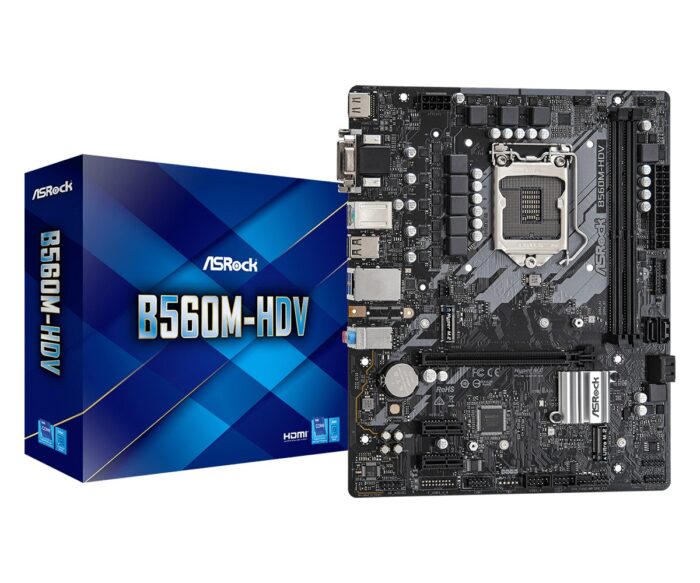

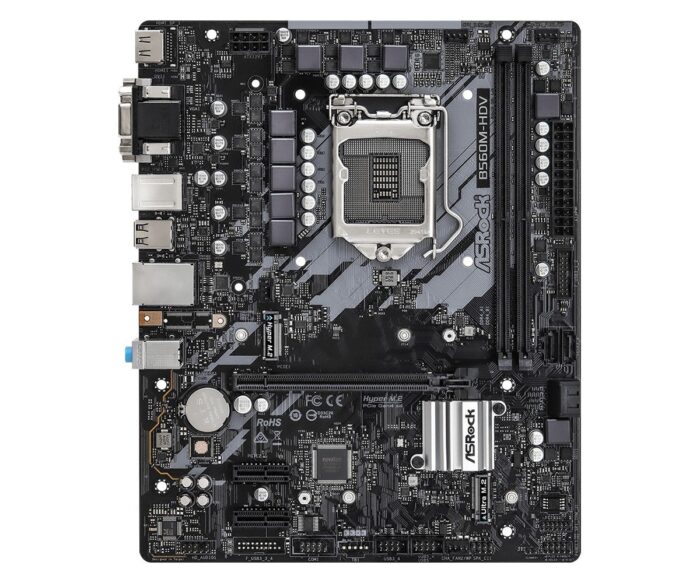

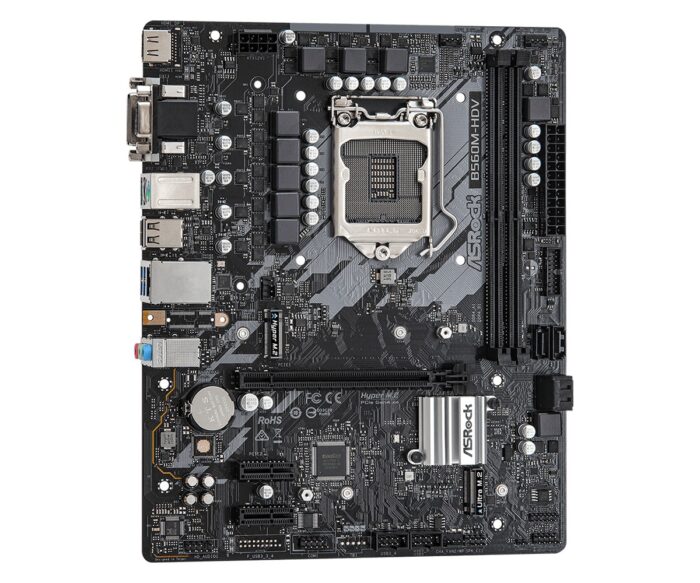

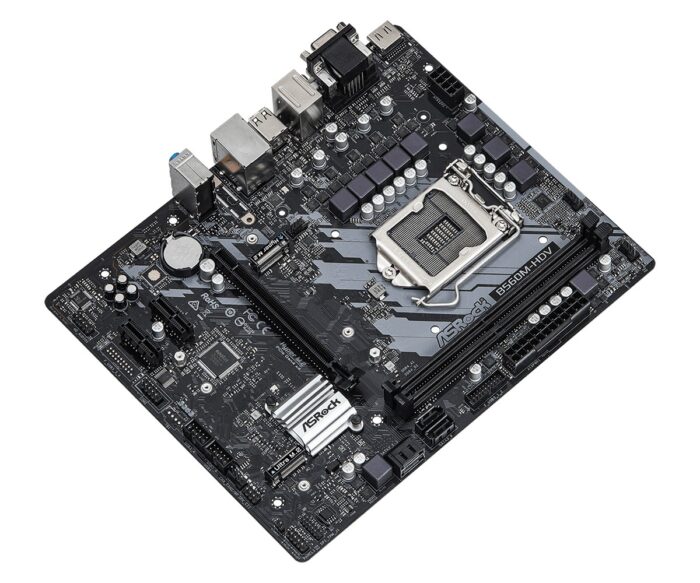

Asrock B560M-HDV Intel B560 LGA 1200 Micro ATX

The Asrock B560M-HDV is a versatile motherboard designed for Intel processors. It features an LGA 1200 (Socket H5) that is compatible with a wide range of Intel processors, including the Intel® Celeron®, Intel® Core™ i3, i5, i7, i9, and Intel® Pentium® series. The motherboard supports DDR4-SDRAM memory with a maximum internal capacity of 64 GB and utilizes DIMM slots for memory installation. For storage solutions, it offers support for both M.2 and SATA III drive interfaces. In terms of connectivity, the motherboard includes a Gigabit Ethernet interface type and is equipped with an Intel® I219-V LAN controller. Designed primarily for PC components, it adopts the micro ATX form factor and is part of the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1200 (Socket H5)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4600,5000 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


12V power connector
Yes
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I219-V
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel B560
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 4.x) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.0
show more


System Management BIOS (SMBIOS) version
2.7
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
198 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more
