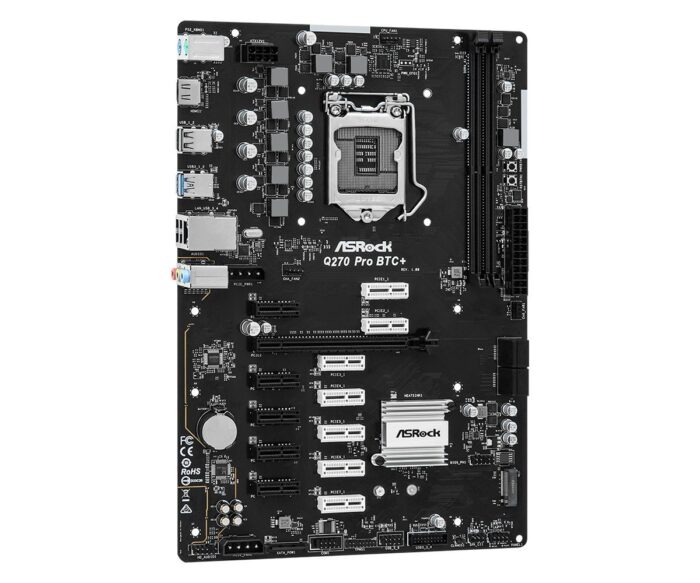

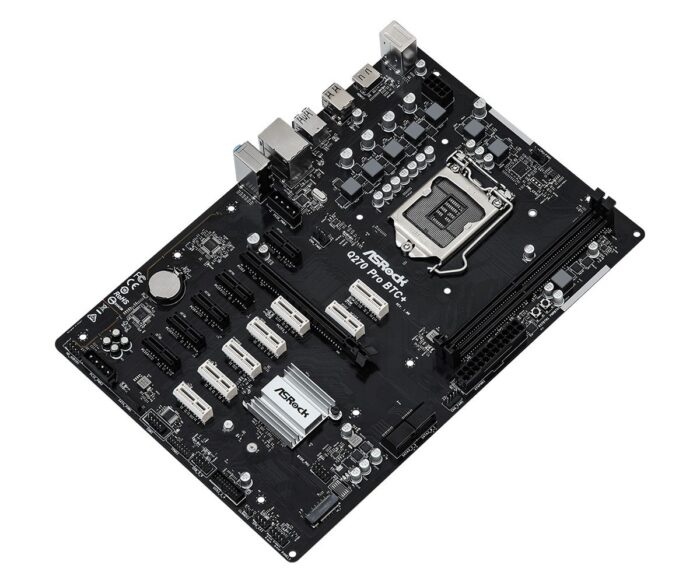

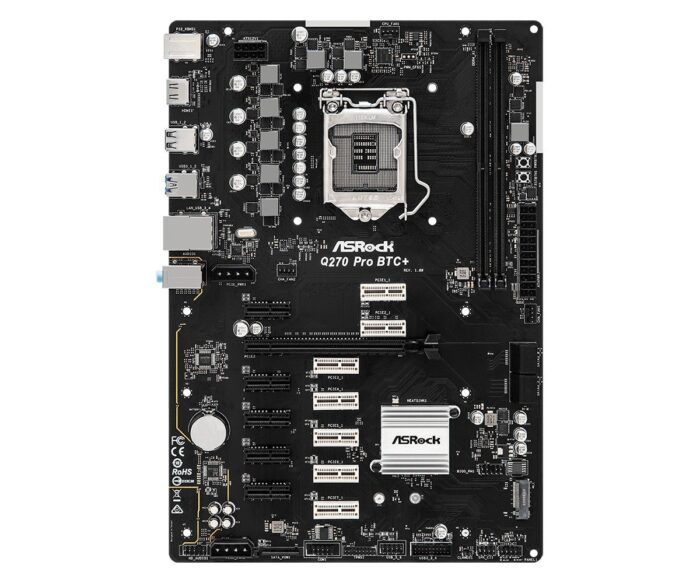

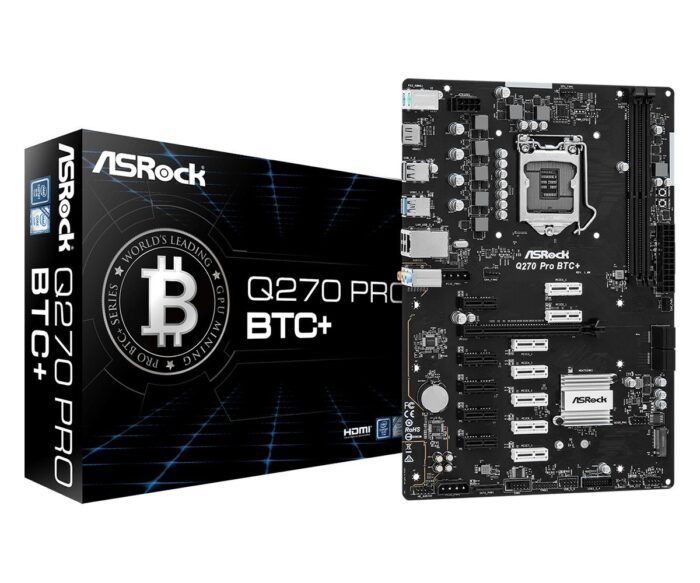

ASRock MB Sc LGA1151 Q270 PRO BTC+, Intel Q270, 2xDDR4, 1xHDMI (90-MXBHM0-A0UAYZ)

The Asrock Q270 Pro BTC+ motherboard is designed for use with Intel processors, featuring a socket type of LGA 1151 (Socket H4). It is compatible with Intel Celeron, Intel Core i3, Intel Core i5, and Intel Pentium processor series. This motherboard supports DDR4-SDRAM memory, with a maximum internal memory capacity of 32 GB and uses DIMM slots for memory installation. For storage, it offers interfaces for M.2 and SATA III drives and supports both HDD and SSD types. It is also equipped to handle RAID levels 0, 1, 5, and 10. Networking capabilities are provided by a Gigabit Ethernet interface with an Intel I219-V LAN controller. Designed for PCs, this motherboard conforms to the ATX form factor and is part of the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1151 (Socket H4)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Pentium®
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400 MHz
show more


Maximum internal memory
Maximum internal memory
32 GB
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
5
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


12V power connector
Yes
show more


Number of COM connectors
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


HDMI ports quantity
HDMI ports quantity
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I219-V
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel® Q270
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 7, Windows 8.1 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
12
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
6.0
show more


System Management BIOS (SMBIOS) version
2.7
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
208 mm
show more


Height
Height
55 mm
show more

Packaging content

Cables included
SATA
show more

Other features

Weight
Weight
500 g
show more
