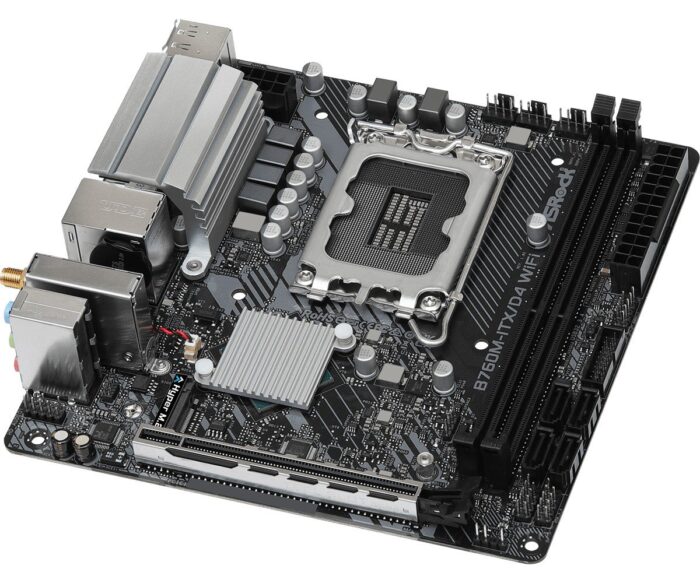

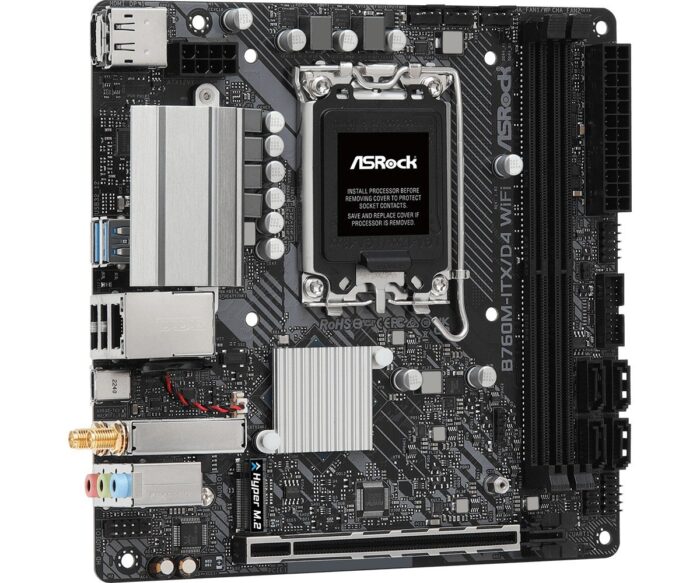

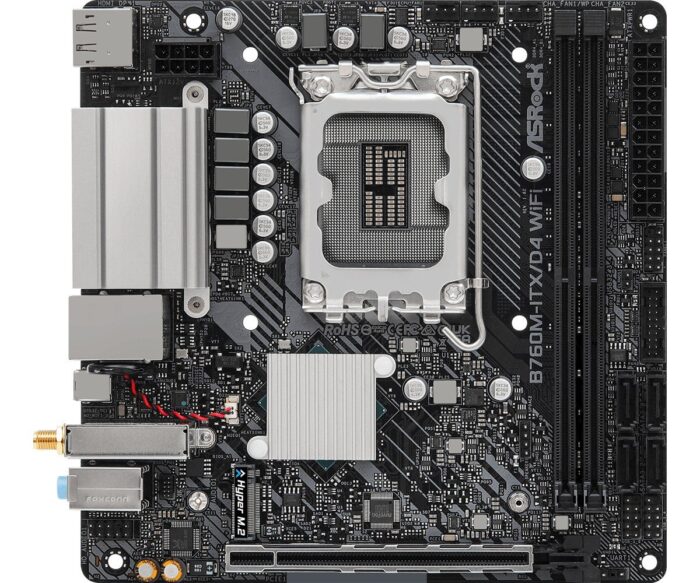

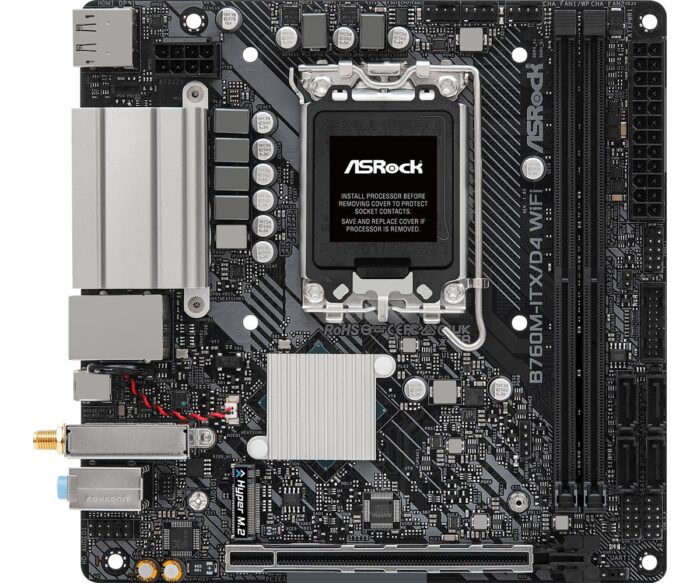

ASRock 90-MXBKY0-A0CAYZ Motherboard

The Asrock B760M-ITX/D4 WiFi is designed for Intel processors and features the LGA 1700 socket. It is compatible with Intel® Core™ i3, i5, i7, and i9 processor series. The motherboard supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 64 GB, and it includes DIMM memory slots. For storage, it supports both M.2 and SATA III drive interfaces and can accommodate HDD and SSD types. RAID levels 0, 1, 5, and 10 are supported. The product includes a Gigabit Ethernet interface with a Realtek RTL8111H LAN controller. It features Wi-Fi 6E (802.11ax) as the top Wi-Fi standard. This motherboard is designed for use in PCs, follows the mini ITX form factor, and belongs to the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


Maximum internal memory
Maximum internal memory
64 GB
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


EPS power connector (8-pin)
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2×2 Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek RTL8111H
show more


Wi-Fi
Wi-Fi
Yes
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
show more

Features

Motherboard chipset
Motherboard chipset
Intel B760
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Weight & dimensions

Width
Width
170 mm
show more


Depth
Depth
170 mm
show more
