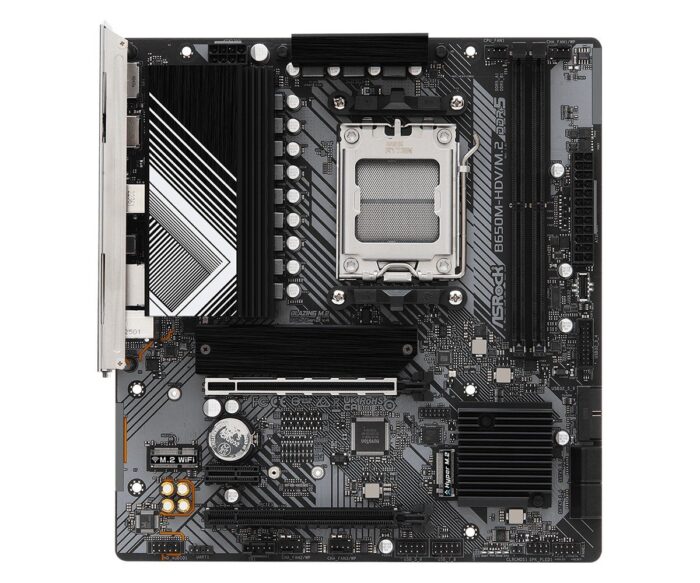

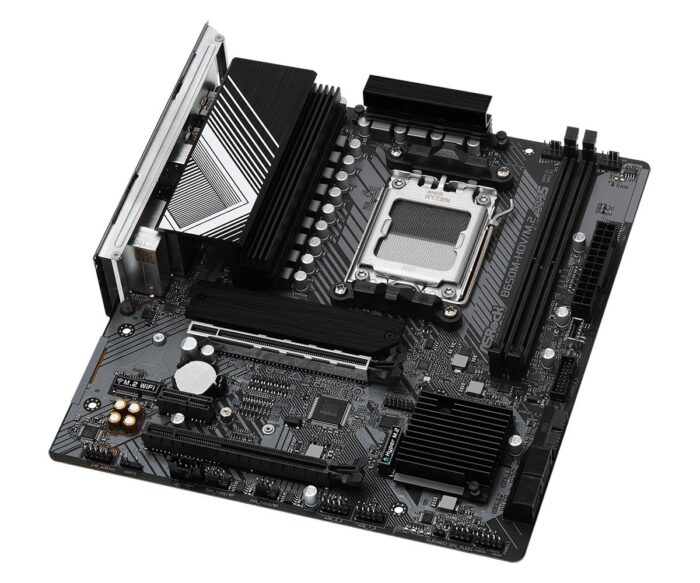

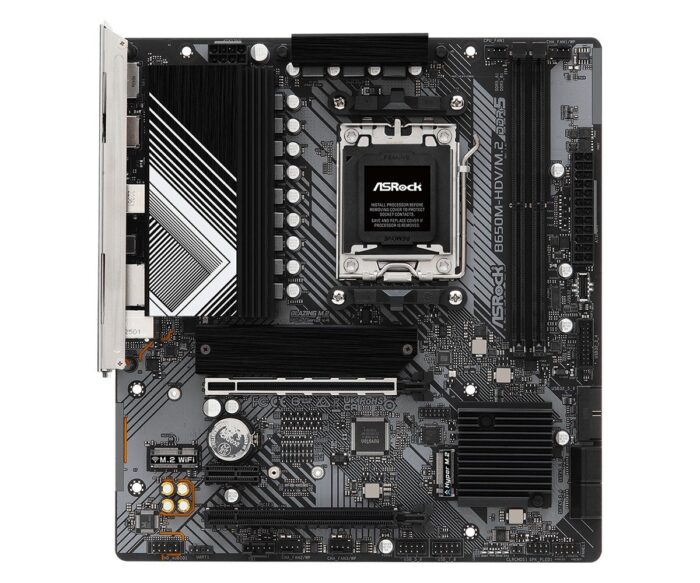

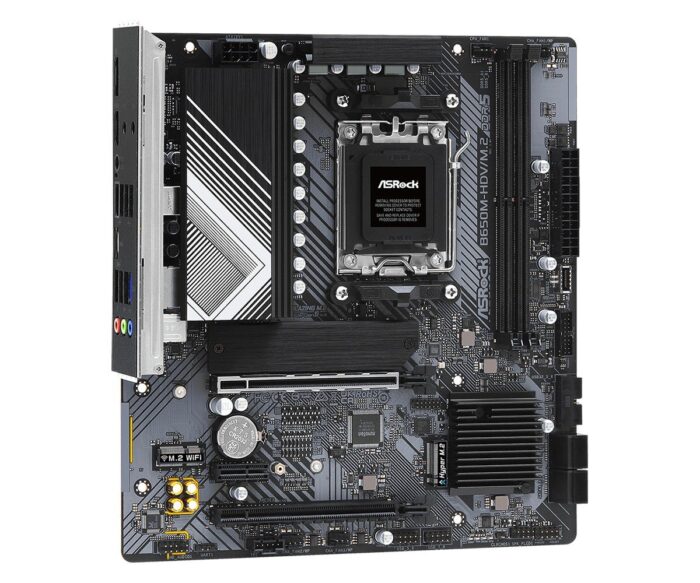

ASRock 90-MXBLA0-A0UAYZ Motherboard

The Asrock B650M-HDV/M.2 is a micro ATX motherboard designed for use in PCs. It is compatible with AMD processors, specifically those from the Ryzen™ 7 series, and features a Socket AM5 for processor installation. The motherboard supports DDR5-SDRAM memory types and can accommodate a maximum internal memory of 64 GB through DIMM slots. For storage, it supports M.2 and SATA III interfaces, and is compatible with both HDD and SSD storage drive types. Additionally, it features RAID levels of 0, 1, and 10 for data management. The onboard Ethernet interface is a 2.5 Gigabit connection, managed by the Realtek RTL8125-BG LAN controller. The motherboard is built on the AMD chipset family, offering modern connectivity and performance options for a range of computing tasks.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more


Compatible processor series
Compatible processor series
AMD Ryzen™ 7
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


ECC сompatibility
Non-ECC
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


Thunderbolt headers
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


LAN controller
Realtek RTL8125-BG
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Audio chip
Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
EFI AMI
show more


BIOS memory size
256 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
226 mm
show more
