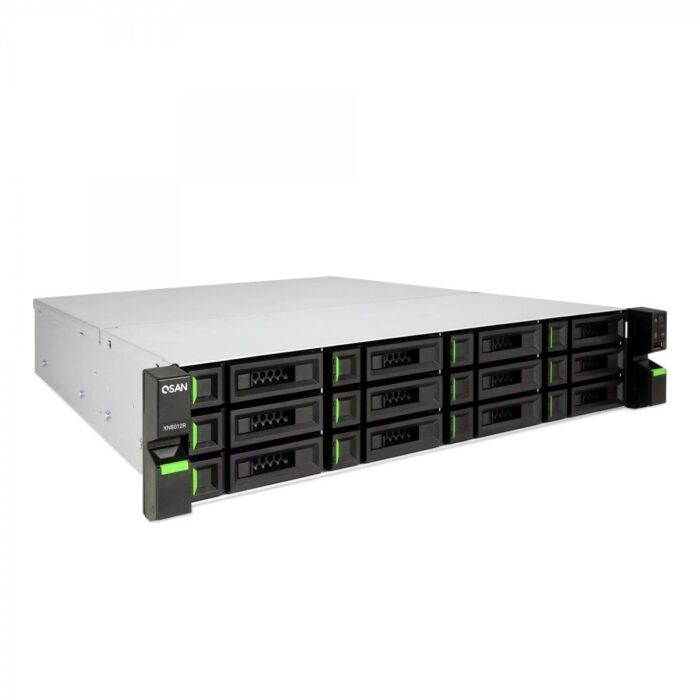

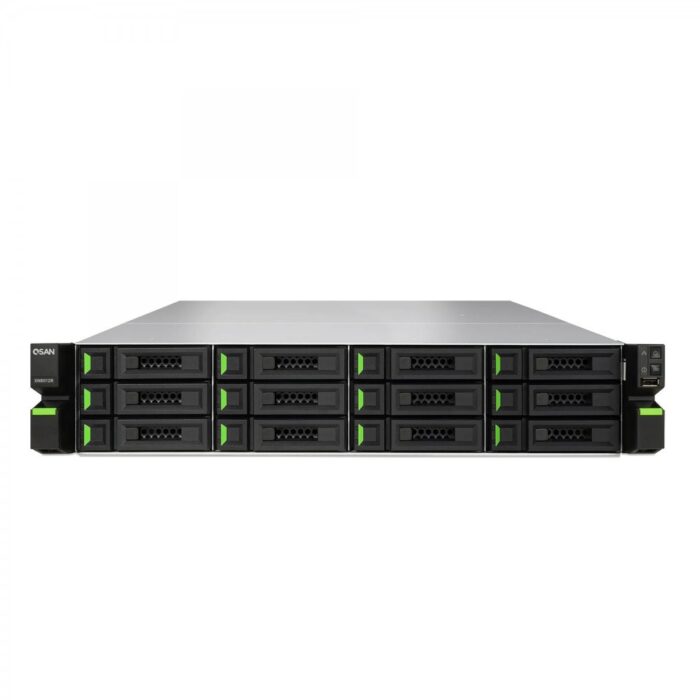

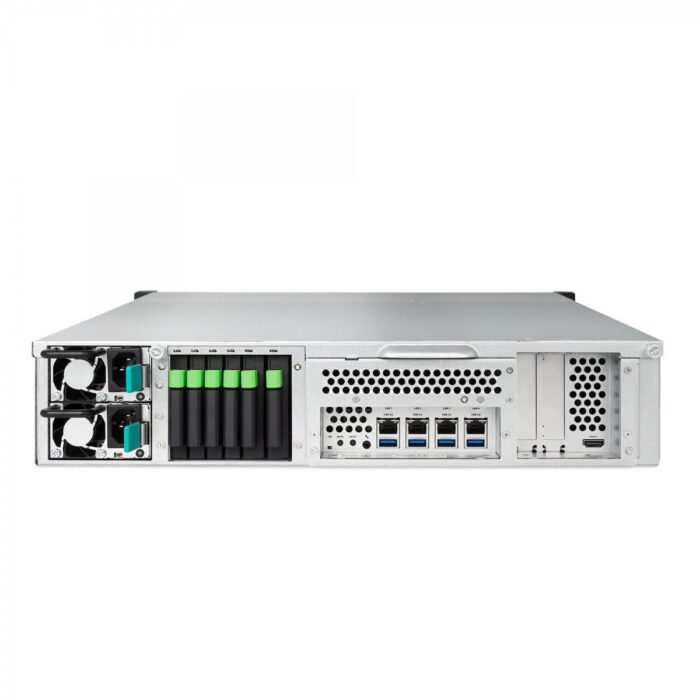

QSAN XN8012R Rackmount 2U12 +6 Bay with Intel Xeon 3.3 GHz Quad-Core CPU, 8GB DDR4 RAM (Max 64GB)

The QSAN XN8012R is a Network Attached Storage (NAS) device designed for small and medium businesses. It features a rack-mounted chassis with a 2U form factor. This device is powered by an Intel Xeon processor, specifically the D-1527 model, offering a processor frequency of 3.3 GHz. It comes equipped with 8 GB of internal memory, utilizing DDR4 technology. The product does not come with any pre-installed storage capacity, allowing for customizable storage solutions. It supports HDD as the installed storage drive type.

Storage

Storage drive capacity
Storage drive capacity
0 GB
show more


Supported storage drive interfaces
Serial ATA III
show more


Storage drive sizes supported
Storage drive sizes supported
3.5"
show more


RAID support
RAID support
Yes
show more


Hot-swap drive bays
Hot-swap drive bays
Yes
show more


Storage drives installed
Storage drives installed
No
show more


Total installed storage capacity
0 TB
show more


Number of storage drives supported
Number of storage drives supported
12
show more


Installed storage drive type
Installed storage drive type
HDD
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel® Xeon®
show more


Processor model
Processor model
D-1527
show more


Processor frequency
Processor frequency
3.3 GHz
show more


Processor cores
Processor cores
4
show more


CPU configuration (max)
1
show more

Memory

Internal memory
Internal memory
8 GB
show more


Internal memory type
Internal memory type
DDR4
show more


Maximum RAM supported
64 GB
show more


Memory form factor
Memory form factor
UDIMM
show more


Memory slots
Memory slots
4
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

USB port
USB port
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


HDMI ports quantity
HDMI ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black, Metallic
show more

Performance

Type
Type
NAS
show more


Device class
Device class
Small & Medium Business
show more


Backup function
Backup function
Yes
show more


Web-based management
Web-based management
Yes
show more

Power

Power supply location
Power supply location
Built-in
show more


Power supply unit (PSU) capacity
250 W
show more


Number of power supply units
2
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
510 mm
show more


Height
Height
88.5 mm
show more


Weight
Weight
13.5 kg
show more

Sustainability

Sustainability compliance
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
20 – 80%
show more


Storage relative humidity (H-H)
10 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 50 °C
show more

Other features

Compliance certificates
BSMI, CE, EAC, Federal Communications Commission (FCC), KCC, RCM, VCCI
show more


Certification
CE, FCC, BSMI, VCCI, RCM, KCC, SASO, EAC
show more
