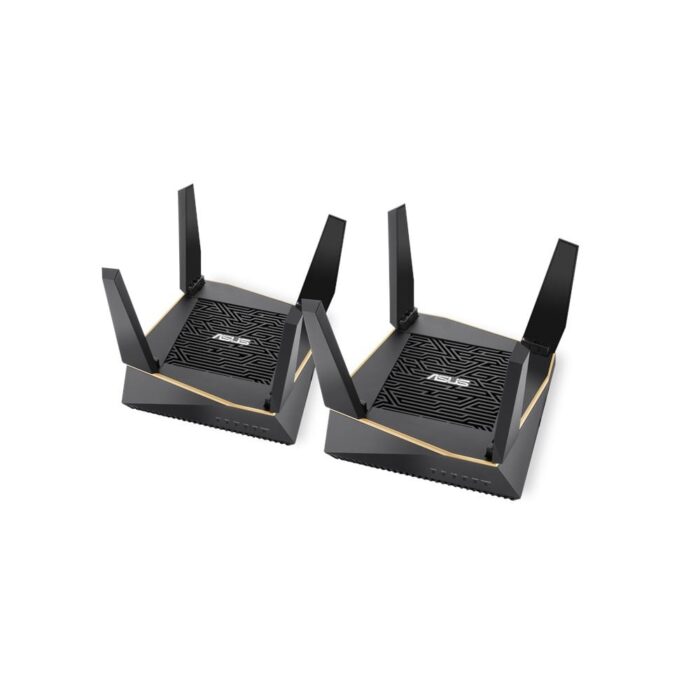

ASUS AiMesh AX6100 Wireless Router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) 4G Black

The ASUS AiMesh AX6100 is a tabletop router featuring a WAN connection through an RJ-45 port. It supports a tri-band Wi-Fi configuration that includes 2.4 GHz and dual 5 GHz bands, with the capability to utilize the latest Wi-Fi 6 (802.11ax) standard. The router offers a maximum WLAN data transfer rate of 6071 Mbit/s. For wired connectivity, it includes a Gigabit Ethernet LAN interface. The router adheres to multiple networking standards, including IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n. It supports various VPN protocols such as IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, and includes a PPTP server, OpenVPN server, PPTP client, and L2TP. For enhanced security, it offers security algorithms like WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, and WPS. The product is designed in a sleek black color and is equipped with LED indicators for LAN, Power, WAN, and WLAN.

WAN connection

Ethernet WAN
Yes
show more


DSL WAN
DSL WAN
No
show more


SIM card slot
SIM card slot
No
show more


3G/4G USB modem compatibility
No
show more


WAN connection type
RJ-45
show more

Wireless LAN features

Wi-Fi band
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 5 GHz)
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
show more


WLAN data transfer rate (max)
6071 Mbit/s
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
show more


Modulation
Modulation
256-QAM
show more


Channel bandwidth
160 MHz
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN interface type
Ethernet LAN interface type
Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.11ax, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
show more


Port forwarding
Yes
show more


Dynamic DNS (DDNS)
Yes
show more


VPN support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
show more

Mobile network

4G
4G
No
show more


3G
3G
No
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


USB port
USB port
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


Memory card slot(s)
Memory card slot(s)
No
show more


DC-in jack
DC-in jack
Yes
show more

Management features

Web-based management
Web-based management
Yes
show more


Quality of Service (QoS) support
Yes
show more


Reset button
Yes
show more


WPS push button
Yes
show more


MU-MIMO technology
Yes
show more

Security

Security algorithms
Security algorithms
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS
show more


System event log
Yes
show more


DMZ support
Yes
show more

Protocols

Universal Plug and Play (UPnP)
Yes
show more

Design

Product colour
Product colour
Black
show more


LED indicators
LAN, Power, WAN, WLAN
show more


On/off switch
On/off switch
Yes
show more


Product type
Product type
Tabletop router
show more

Antenna

Antenna design
Internal & external
show more


Antennas quantity
6
show more

Power

Power source type
Power source type
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Output voltage
19 V
show more


Output current
1.75 A
show more

Operational conditions

Storage relative humidity (H-H)
20 – 90%
show more


Operating relative humidity (H-H)
50 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
0 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more


Mac operating systems supported
Mac operating systems supported
Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
show more


Mac compatibility
Mac compatibility
Yes
show more

Weight & dimensions

Weight
Weight
651 g
show more


Height
Height
52.6 mm
show more


Depth
Depth
155 mm
show more


Width
Width
155 mm
show more

Packaging data

Package width
Package width
385 mm
show more


Package depth
Package depth
250 mm
show more


Package height
Package height
126 mm
show more


Package weight
Package weight
1.8 kg
show more


Number of products included
Number of products included
2 pc(s)
show more

Logistics data

Harmonized System (HS) code
85176990
