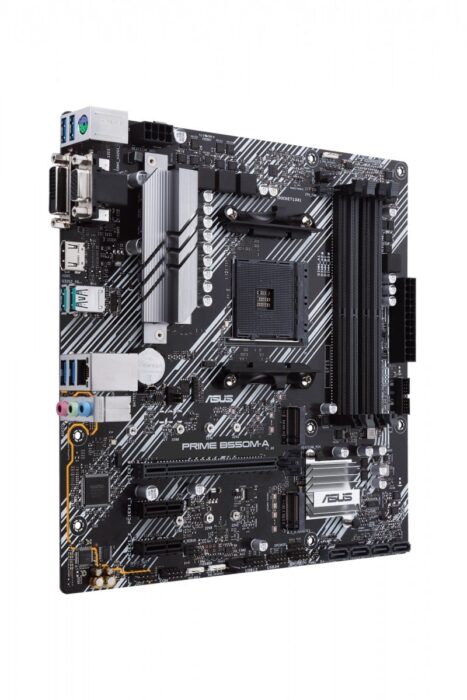

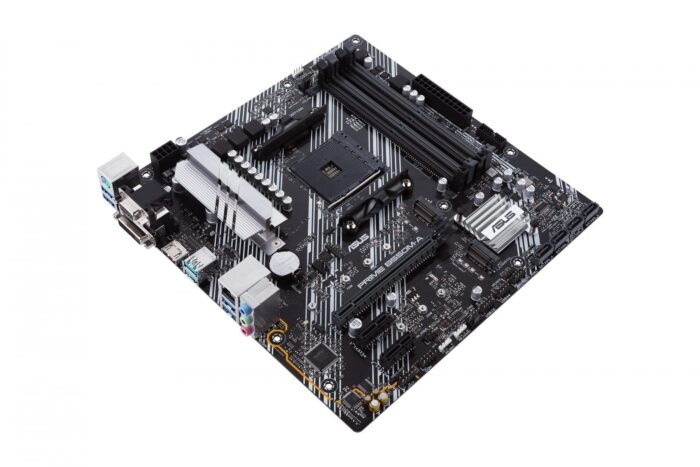

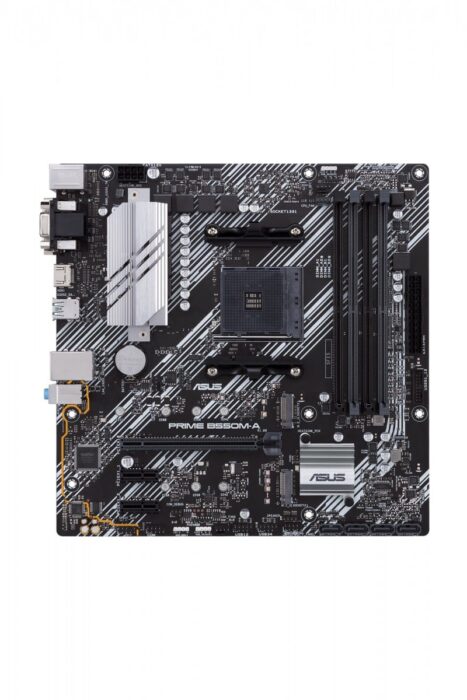

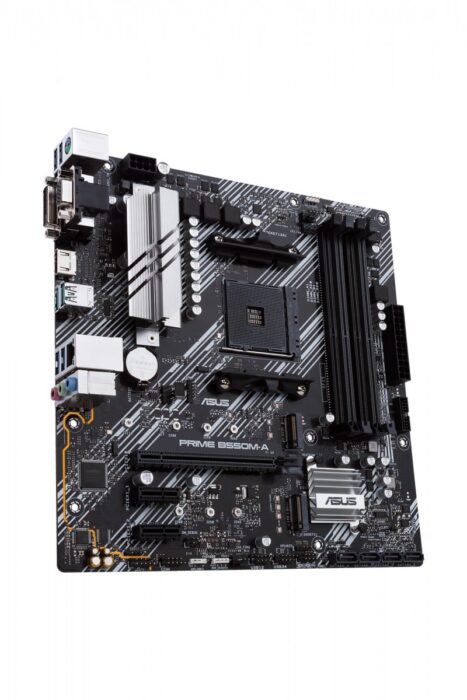

ASUS PRIME B550M-A/CSM – B550, AM4, DDR4, M.2, SATA, USB 3.2 Gen 2, mATX

The ASUS Prime B550M-A/CSM is a motherboard designed for AMD processors, specifically those in the AMD Ryzen 3000 Series, and utilizes a Socket AM4. It supports DDR4-SDRAM memory with a maximum internal memory capacity of up to 128 GB, and is equipped with DIMM memory slots. For storage, it supports both M.2 and SATA III drive interfaces. Networking features include a Gigabit Ethernet interface, with the LAN controller provided by the Realtek RTL8111H. The motherboard is tailored for use in PCs, featuring a micro ATX form factor and belonging to the AMD chipset family.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Ryzen 3000 Series
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4600 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more

Graphics

On-board graphics card
On-board graphics card
No
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


EPS power connector (8-pin)
Yes
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek RTL8111H
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B550
show more


Audio chip
Realtek ALC887
show more


Audio output channels
Audio output channels
7.1 channels
show more


Product colour
Product colour
Black, Silver
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 4.x) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more


Clear CMOS jumper
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more


Height
Height
51 mm
show more

Other features

Weight
Weight
845 g
show more
