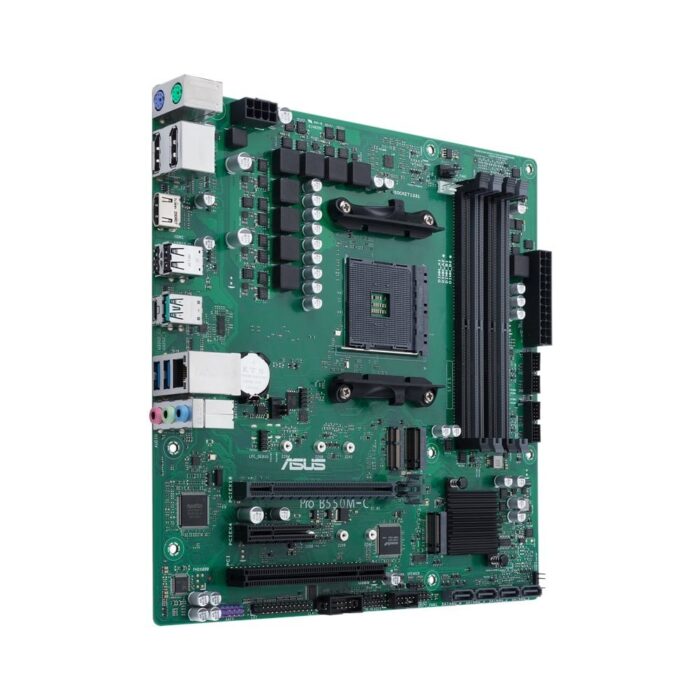

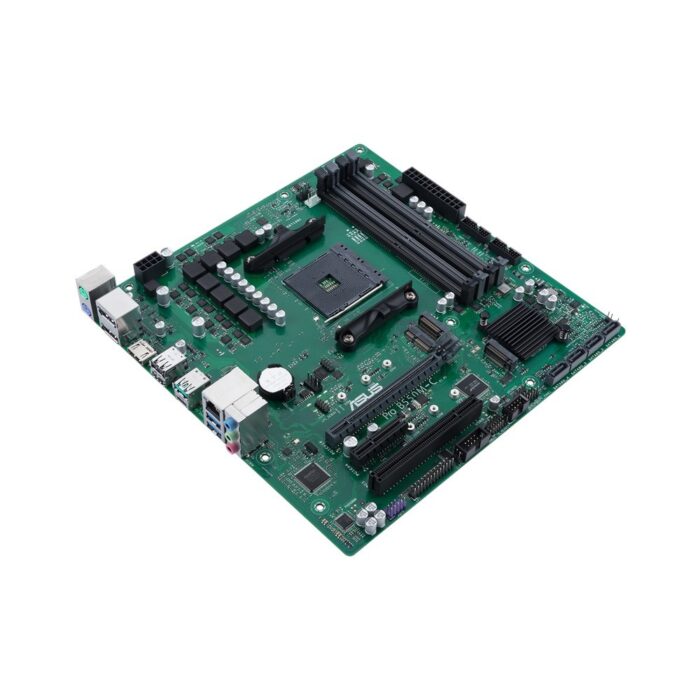

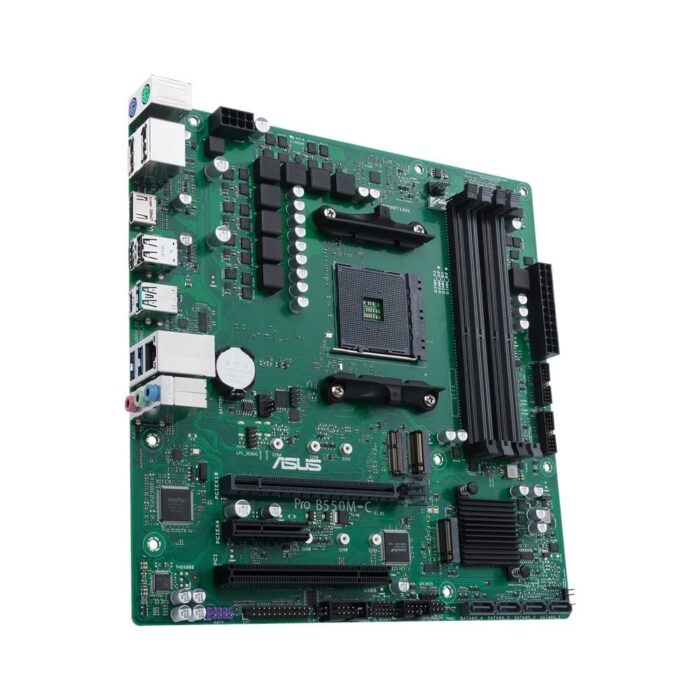

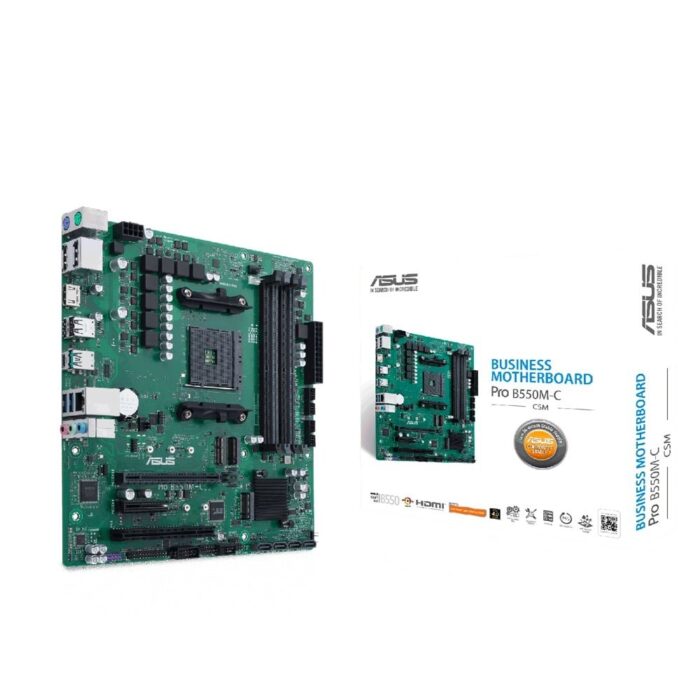

ASUS PRO B550M-C/CSM B550 AM4 DDR4 M.2 SATA mATX

ASUS PRO B550M-C/CSM is a reliable motherboard designed for AMD processors. It is compatible with AMD Athlon and AMD Ryzen 3000 Series processors, utilizing the Socket AM4 setup. This motherboard supports DDR4-SDRAM memory with a maximum capacity of 128 GB and features DIMM memory slots.

For storage, it accommodates both HDD and SSD types via SATA III interfaces and supports RAID levels 0, 1, and 10. Networking is facilitated through Gigabit Ethernet, using the Realtek RTL8111H LAN controller.

Targeted for PC use, this motherboard follows the micro ATX form factor and belongs to the AMD chipset family, making it a versatile choice for building a powerful, compact system.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Athlon, AMD Ryzen 3000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
SATA III
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


Number of EATX power connectors
1
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


Chassis intrusion connector
Yes
show more


12V power connector
Yes
show more


Thunderbolt headers
1
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.1
show more


DisplayPorts quantity
DisplayPorts quantity
2
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Realtek RTL8111H
show more


Wake-on-LAN ready
Yes
show more

Features

Motherboard chipset
Motherboard chipset
AMD B550
show more


Audio chip
Realtek ALC887 / Realtek ALC897
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more

Expansion slots

PCI Express x4 slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


PCI slots
1
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more


Clear CMOS jumper
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more


Height
Height
51 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more

Other features

Weight
Weight
845 g
show more
