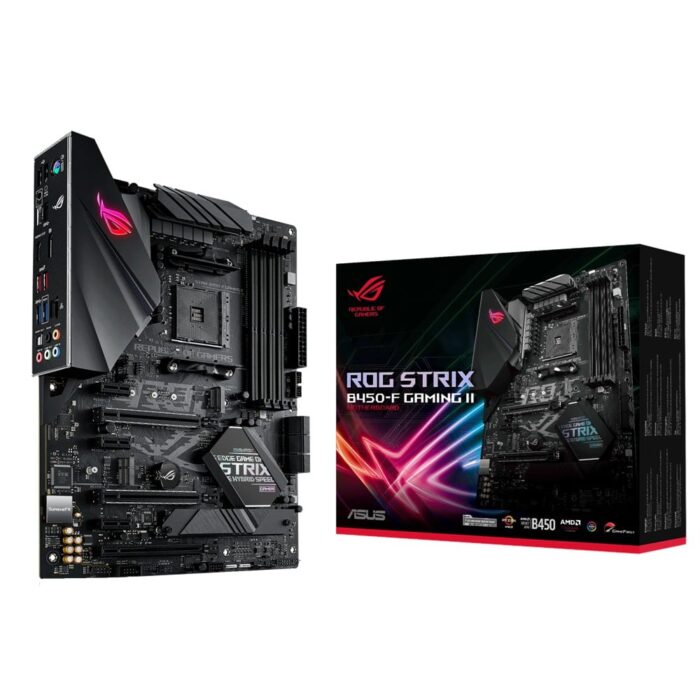

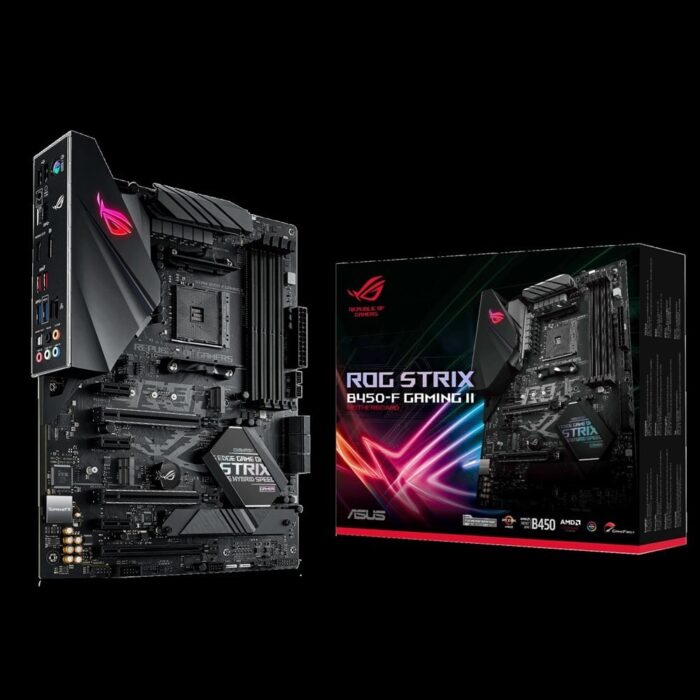

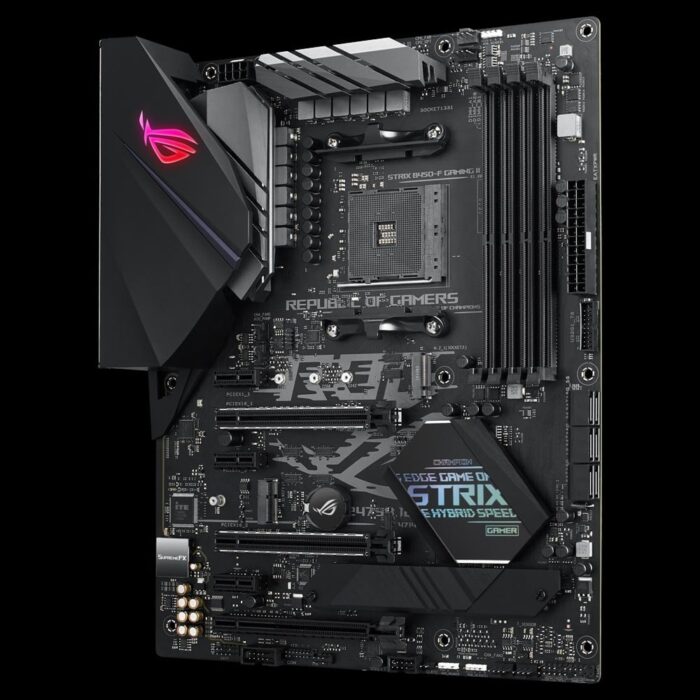

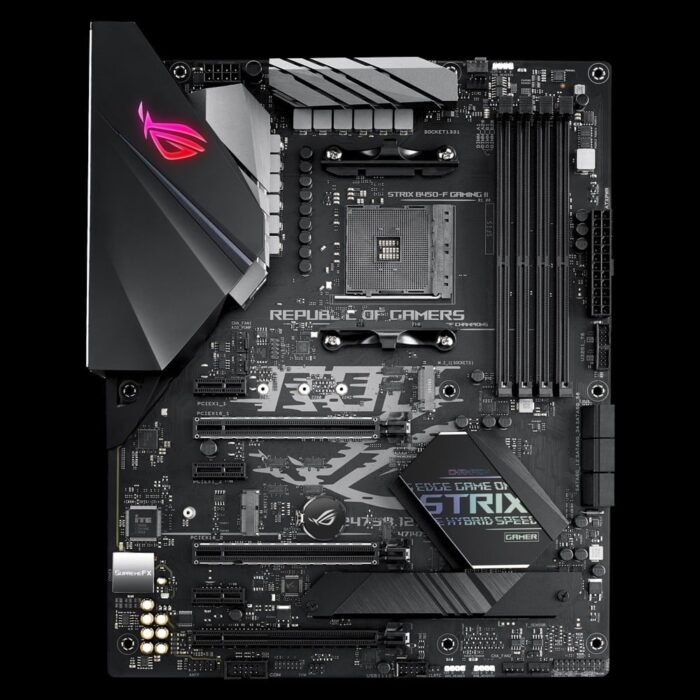

ASUS ROG STRIX B450-F GAMING II B450, AM4, DDR4, M.2, SATA, USB 3.2 Gen 2, ATX

The ASUS ROG STRIX B450-F GAMING II is designed for AMD processors and features a Socket AM4 processor socket. It is compatible with AMD Ryzen 3000 Series processors. This motherboard supports DDR4-SDRAM memory types and can accommodate a maximum internal memory of up to 128 GB. It features DIMM memory slots for easy memory expansion.

In terms of storage, the motherboard supports SATA III interfaces and is compatible with both HDD and SSD storage drive types. It offers RAID support with levels 0, 1, and 10 for enhanced data protection and performance.

For video output, it includes an HDMI port with support for version 2.0b, ensuring high-quality video playback. Networking capabilities include a Gigabit Ethernet interface type, with an Intel® I211-AT LAN controller for reliable and fast internet connectivity.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM4
show more


Compatible processor series
Compatible processor series
AMD Ryzen 3000 Series
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4400 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
SATA III
show more


RAID levels
RAID levels
0, 1, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
6
show more


Front panel audio connector
Yes
show more


Front panel connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
3
show more


12V power connector
Yes
show more


Number of COM connectors
1
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.0b
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.2
show more


S/PDIF out port
S/PDIF out port
Yes
show more


Digital audio optical out
Digital audio optical out
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I211-AT
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B450
show more


Audio chip
SupremeFX S1220A
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more

Expansion slots

PCI Express x1 (Gen 2.x) slots
3
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
3
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more


Clear CMOS jumper
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more


Height
Height
259 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more

Other features

Weight
Weight
849 g
show more
