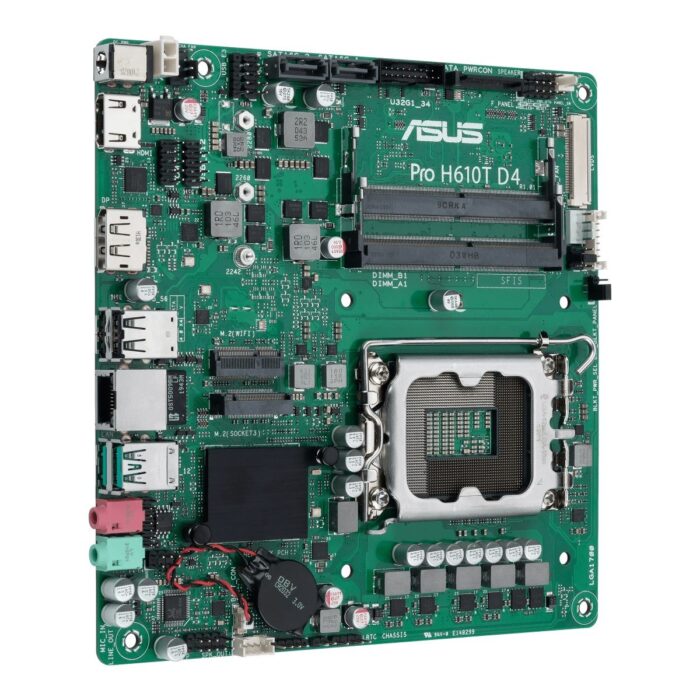

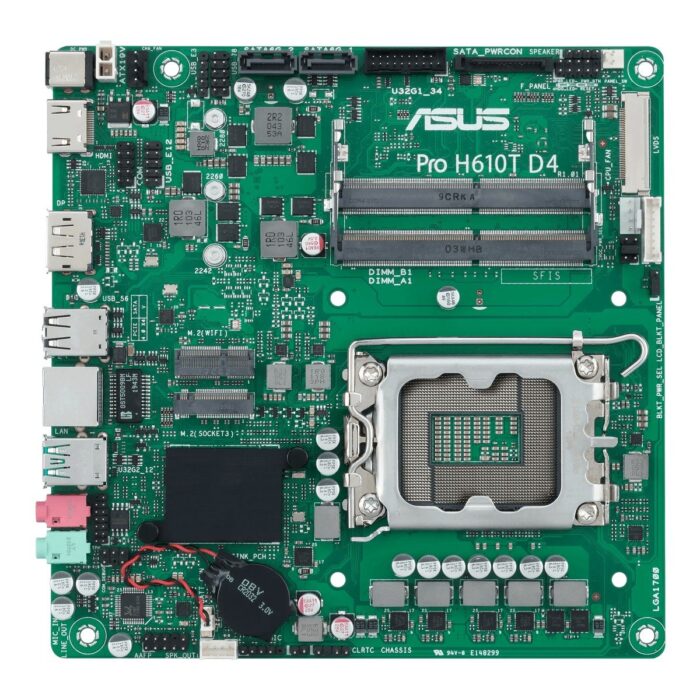

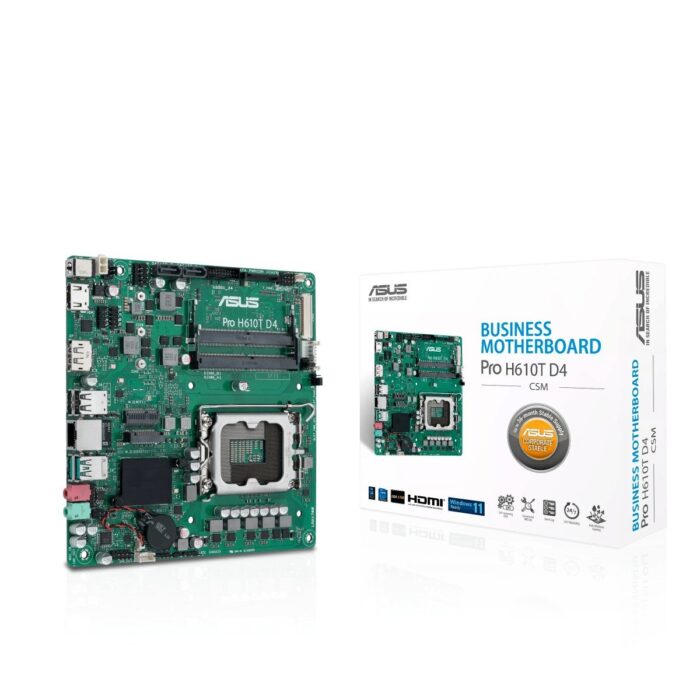

ASUS PRO H610T D4-CSM, H610, LGA1700, DDR4, M.2, SATA, USB 3.2 Gen 2, Thin m-ITX

ASUS Pro H610T D4-CSM is designed to support a range of Intel processors, including Intel Celeron, Intel Core i3, i5, i7, i9, and Intel Pentium, all fitting the LGA 1700 socket. It is compatible with DDR4-SDRAM memory types, and allows a maximum internal memory capacity of 64 GB through SO-DIMM slots. The motherboard supports both M.2 and SATA III storage drive interfaces, accommodating both HDD and SSD storage drive types. It features a Gigabit Ethernet interface for high-speed network connectivity. As a component for PCs, this motherboard follows the mini ITX form factor and belongs to the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
SO-DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,2933,3200 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
2
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Chassis intrusion connector
Yes
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

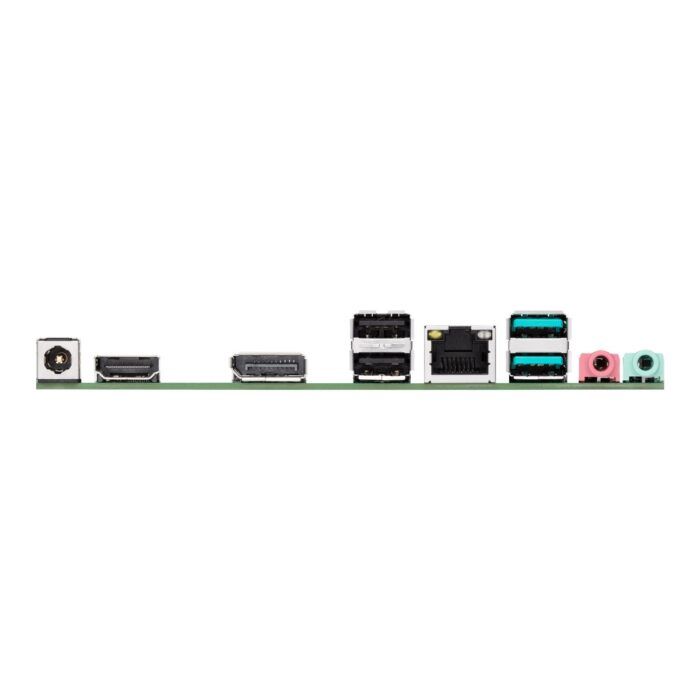

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel H610
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
170 mm
show more


Depth
Depth
170 mm
show more


Height
Height
221 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more

Other features

Weight
Weight
382 g
show more
