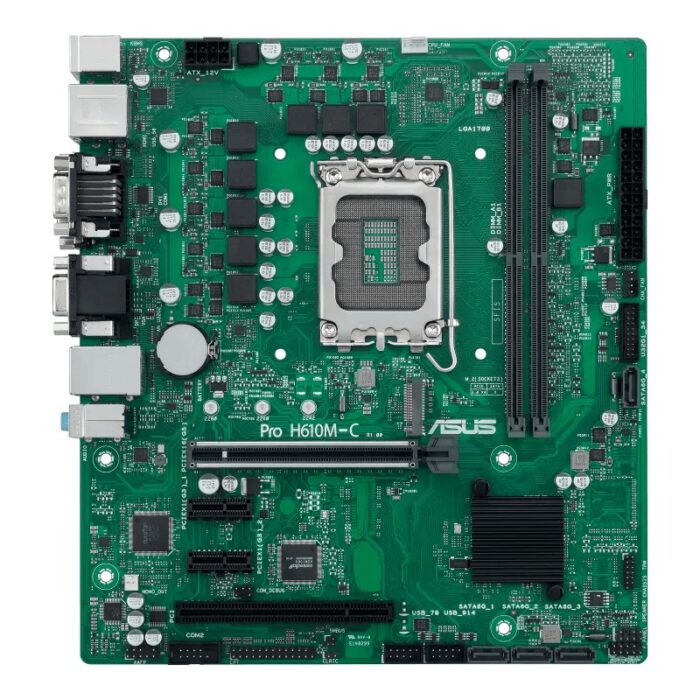

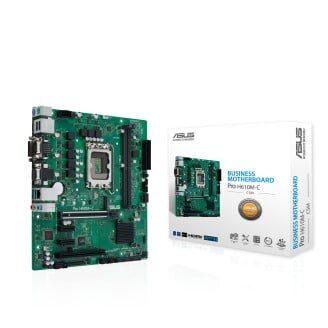

ASUS PRO H610M-C-CSM, H610, LGA1700, DDR5, M.2, SATA, USB 3.2 Gen 2, mATX

The ASUS Pro H610M-C-CSM is a motherboard designed for use with Intel processors, featuring an LGA 1700 socket. It is compatible with Intel® Celeron®, Intel® Core™ i3, i5, i7, i9, and Intel® Pentium® processor series. This motherboard supports DDR5-SDRAM memory types and can handle a maximum internal memory of up to 64 GB across its DIMM memory slots. For storage, it supports both M.2 and SATA III interfaces and is compatible with both HDD and SSD drive types. It includes a Gigabit Ethernet interface for connectivity. Designed for use in PCs, this motherboard follows the micro ATX form factor and features an Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4800 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
No
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more


Number of displays supported
Number of displays supported
3
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Chassis intrusion connector
Yes
show more


12V power connector
Yes
show more


Number of COM connectors
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.1
show more


DVI-D ports quantity
DVI-D ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4
show more


COM ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wake-on-LAN ready
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel H610
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 slots
1
show more


PCI Express x16 (Gen 5.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS memory size
128 Mbit
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more


Height
Height
58 mm
show more

Packaging content

Cables included
SATA
show more


Drivers included
Yes
show more

Other features

Weight
Weight
382 g
show more
