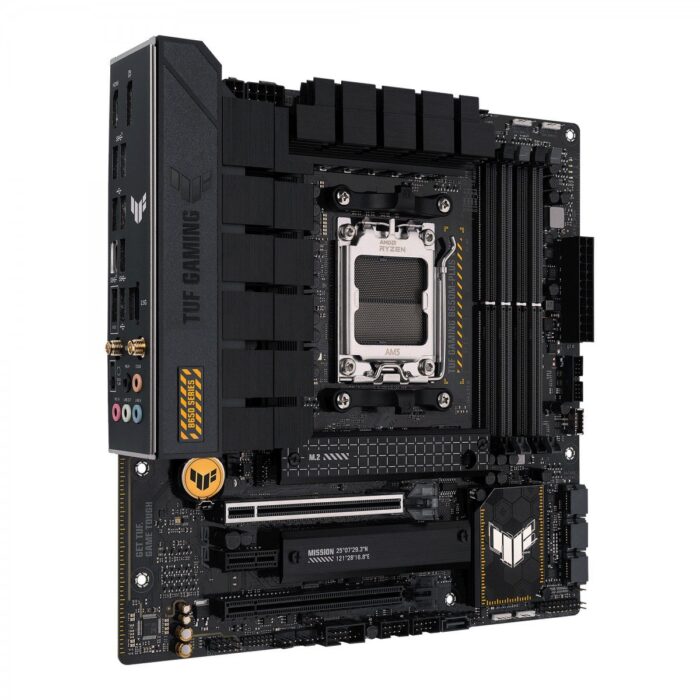

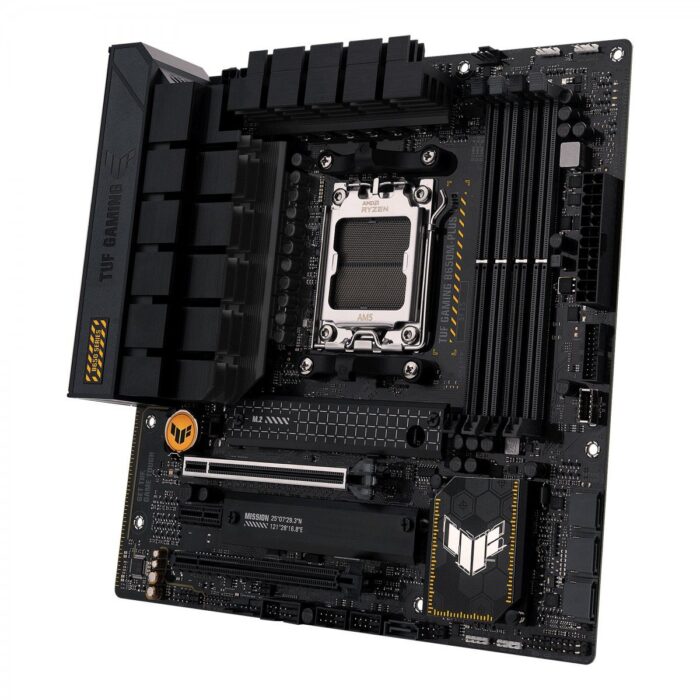

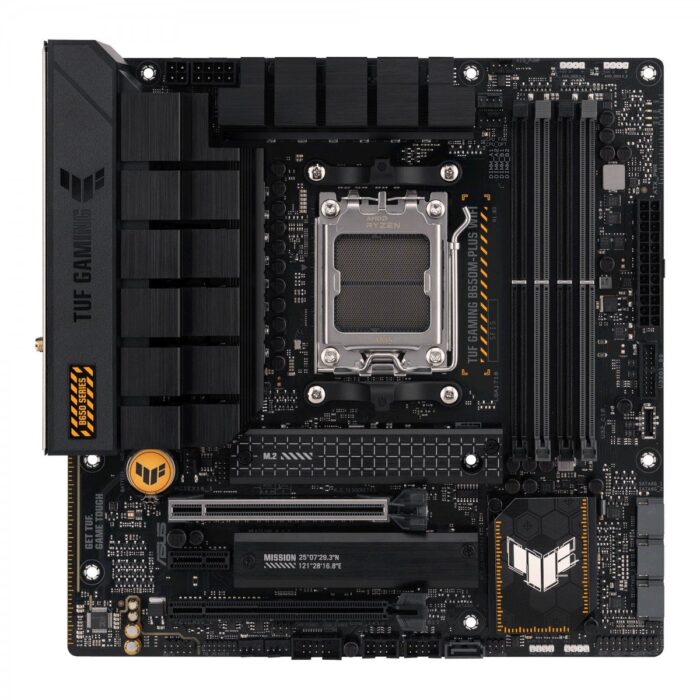

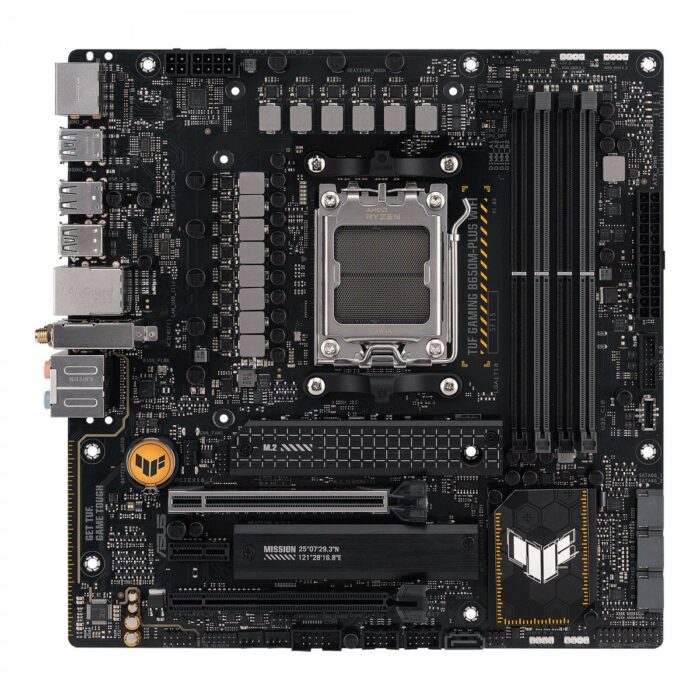

ASUS TUF Gaming B650M-PLUS WIFI, B650, AM5, DDR5, M.2, SATA, Wi-Fi 6, mATX

The ASUS TUF GAMING B650M-PLUS WIFI is a motherboard designed for AMD processors with a Socket AM5. It supports DDR5-SDRAM memory type and can accommodate a maximum internal memory of 128 GB through DIMM slots. For storage, the motherboard is compatible with M.2 and SATA III interfaces, and it supports both HDD and SSD storage drive types. It also offers RAID levels of 0, 1, and 10 for data protection and performance. Networking features include various Ethernet interface options such as 2.5 Gigabit Ethernet, Fast Ethernet, and Gigabit Ethernet. The motherboard supports Wi-Fi 6 (802.11ax) and is compatible with other Wi-Fi standards including 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), and Wi-Fi 5 (802.11ac). It is specifically designed for use in PCs and comes in a micro ATX form factor, part of the AMD motherboard chipset family.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC
ECC
Yes
show more


Non-ECC
Yes
show more


Supported memory clock speeds
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
6
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

On-board graphics card
On-board graphics card
No
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
3
show more


EPS power connector (8-pin)
Yes
show more


Thunderbolt headers
1
show more


Number of COM connectors
1
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


USB 3.2 Gen 2×2 Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
Yes
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
show more


Bluetooth
Bluetooth
Yes
show more


Bluetooth version
Bluetooth version
5.2
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Audio output channels
Audio output channels
7.1 channels
show more


Product colour
Product colour
Black
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
2
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more
