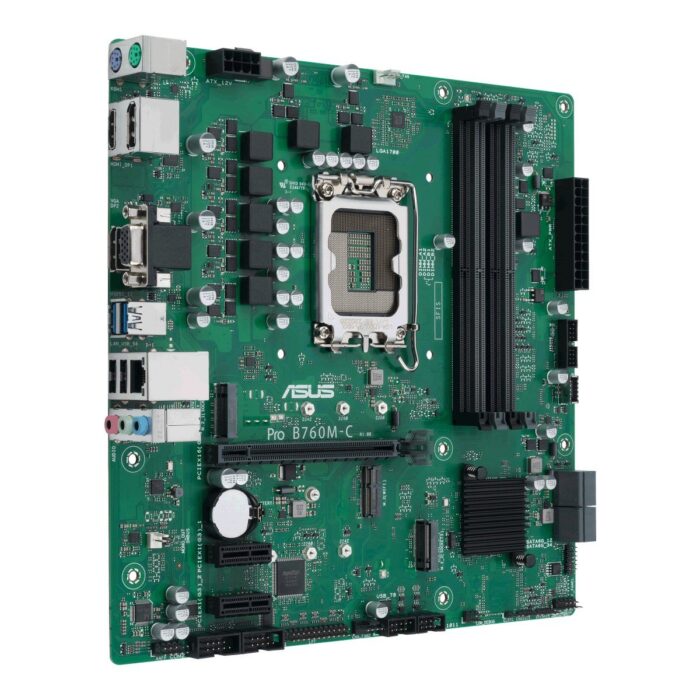

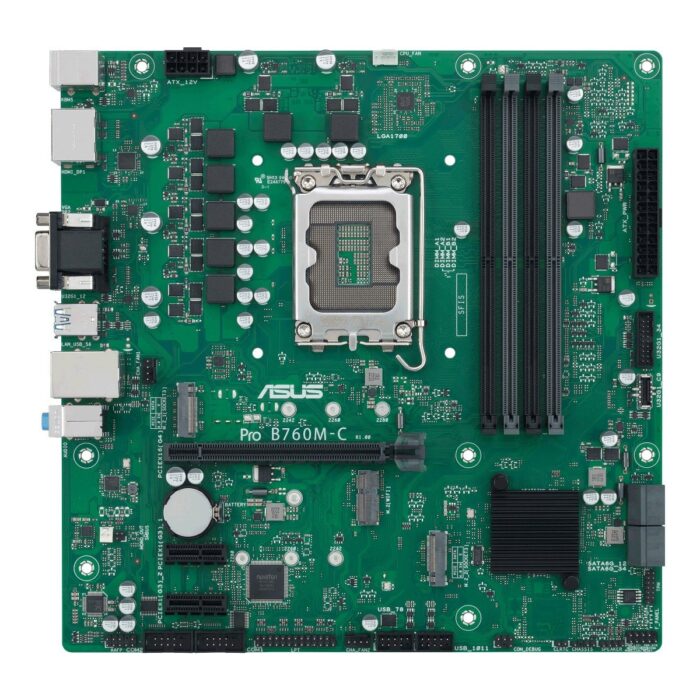

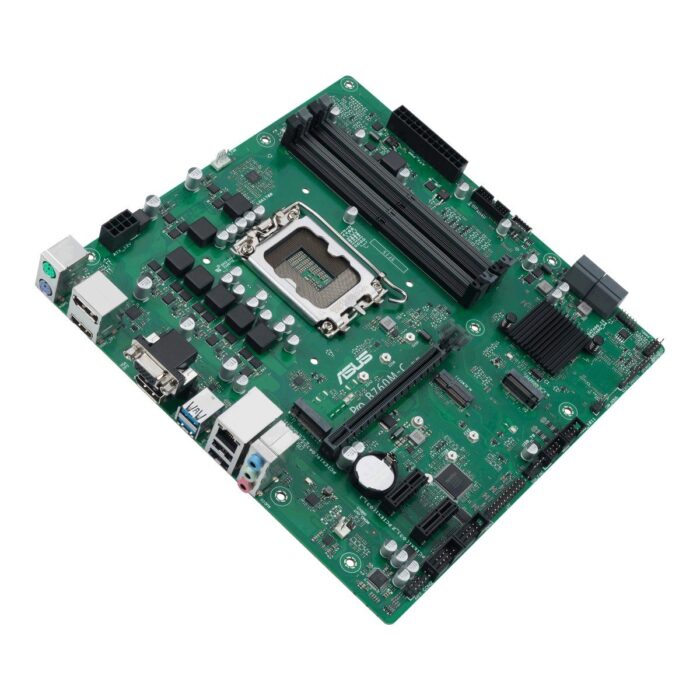

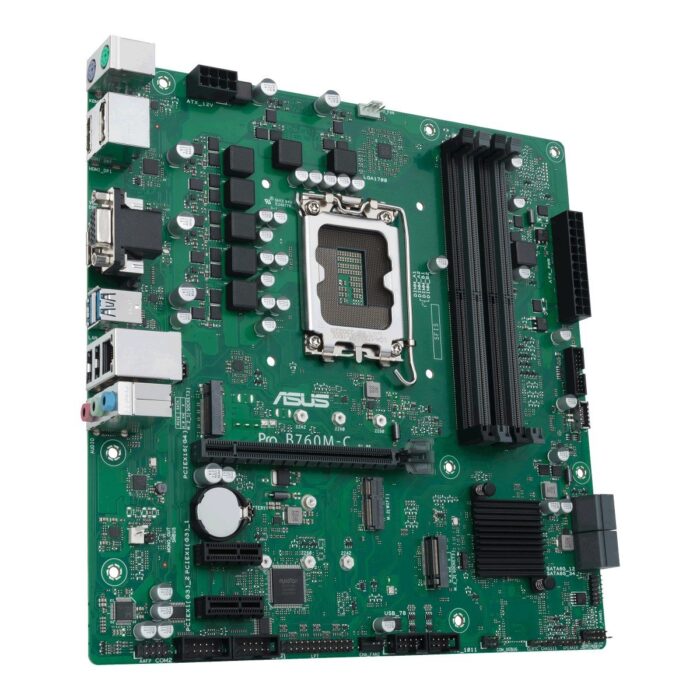

ASUS PRO B760M-C-CSM, B760, LGA1700, DDR5, M.2, SATA, mATX

The ASUS PRO B760M-C-CSM is a versatile motherboard designed for use in PCs. It is compatible with Intel processors, specifically those from the Celeron, Core i3, Core i5, Core i7, and Core i9 series. The motherboard uses the LGA 1700 processor socket and supports DDR5-SDRAM memory with a maximum capacity of 128 GB across DIMM slots. For storage, it accommodates both HDD and SSD types through M.2 and SATA III interfaces and supports RAID levels 0, 1, 5, and 10 for enhanced data management and protection. Networking is facilitated by a Gigabit Ethernet interface. The motherboard follows the micro ATX form factor and belongs to the Intel chipset family, making it a reliable component for building or upgrading PCs.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
show more


Supported processor sockets
Supported processor sockets
LGA 1700
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200 MHz
show more


Supported memory clock speed (max)
6200 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
6
show more


Number of HDDs supported
Number of HDDs supported
4
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


Chassis intrusion connector
Yes
show more


EPS power connector (8-pin)
Yes
show more


12V power connector
Yes
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.1
show more


DisplayPorts quantity
DisplayPorts quantity
2
show more


DisplayPort version
1.4
show more


Headphone outputs
Headphone outputs
1
show more


Line-in
Yes
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel B760
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Power source type
Power source type
ATX
show more


Cooling type
Cooling type
Passive
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10, Windows 11
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS memory size
128 Mbit
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more

Packaging content

User guide
Yes
show more


Cables included
SATA
show more
