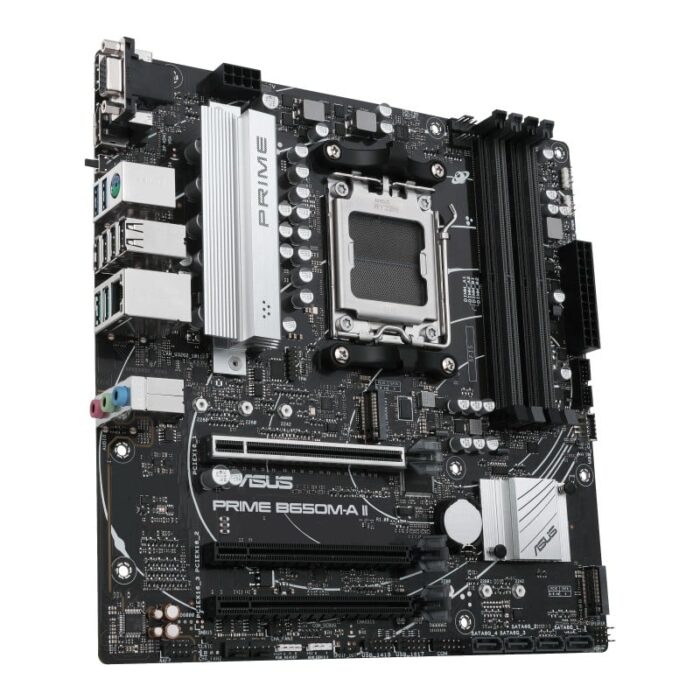

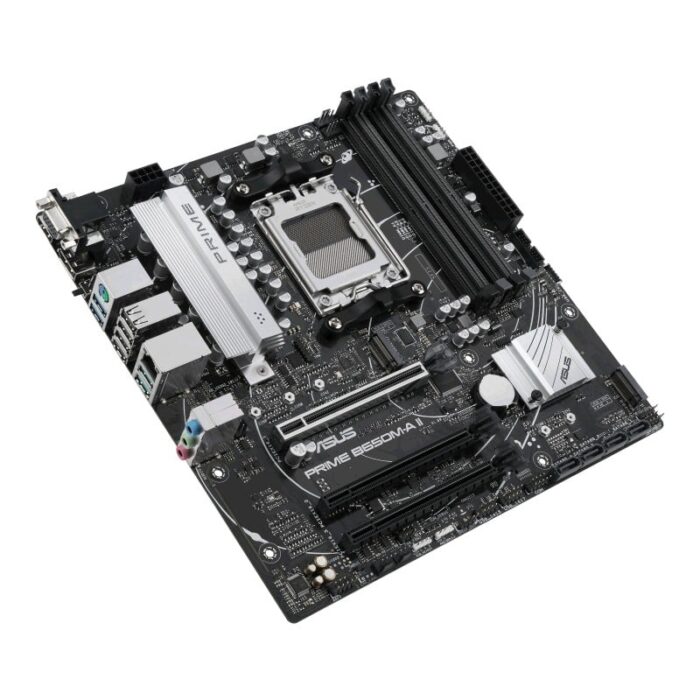

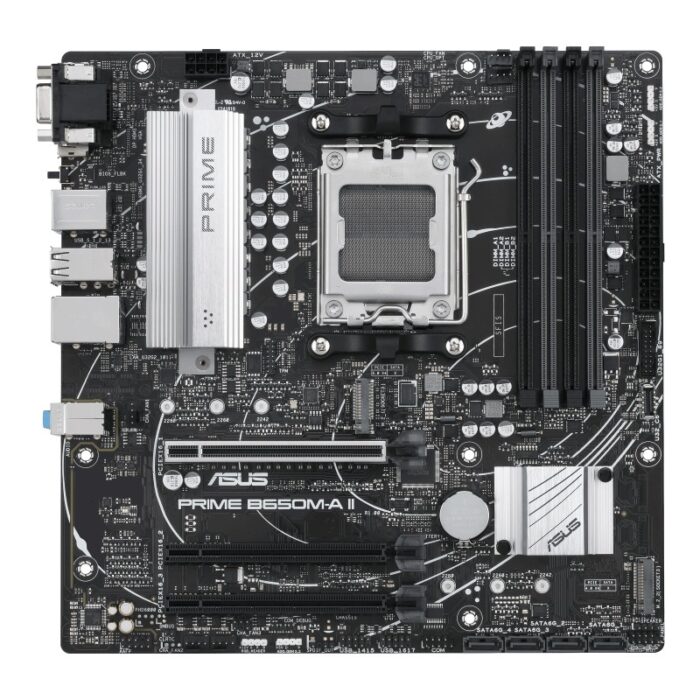

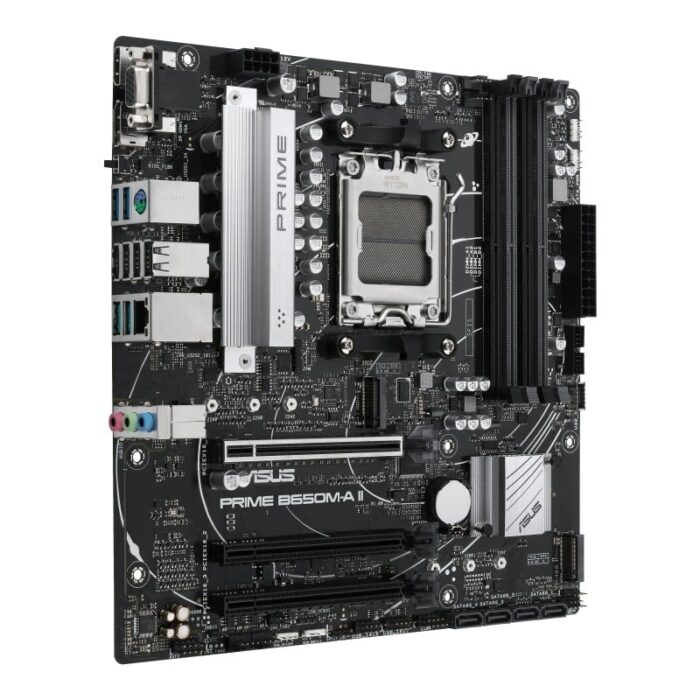

ASUS PRIME B650M-A II-CSM, B650, AM5, DDR5, M.2, SATA, USB 3.2 gen.2, mATX

The ASUS PRIME B650M-A II-CSM is a robust motherboard designed to support AMD processors. It uses a Socket AM5, making it compatible with the AMD Ryzen 7000 Series processors. The motherboard supports DDR5-SDRAM memory types, allowing for a maximum internal memory of up to 128 GB, with DIMM being the memory slot type. For storage, it accommodates both HDD and SSD types and supports M.2 and SATA III interfaces for storage drives. It features a 2.5 Gigabit Ethernet interface, ensuring fast and reliable network connectivity. This motherboard is intended for use in PCs and follows the micro ATX form factor. It belongs to the AMD chipset family, providing a solid foundation for a modern computer system.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more


Compatible processor series
Compatible processor series
AMD Ryzen 7000 Series
show more


Supported processor sockets
Supported processor sockets
Socket AM5
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
show more


Supported memory clock speed (max)
6400 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
6
show more


Number of HDDs supported
Number of HDDs supported
4
show more


RAID support
RAID support
Yes
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more


On-board graphics card
On-board graphics card
No
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


Audio connector
Yes
show more


Front panel audio connector
Yes
show more


Front panel connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
3
show more


12V power connector
Yes
show more


Number of COM connectors
1
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Line-in
Yes
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Audio output channels
Audio output channels
7.1 channels
show more


Product colour
Product colour
Black
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11
show more

Expansion slots

PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
3
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
256 Mbit
show more


Clear CMOS button
Yes
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more

Packaging content

Cables included
SATA
show more
