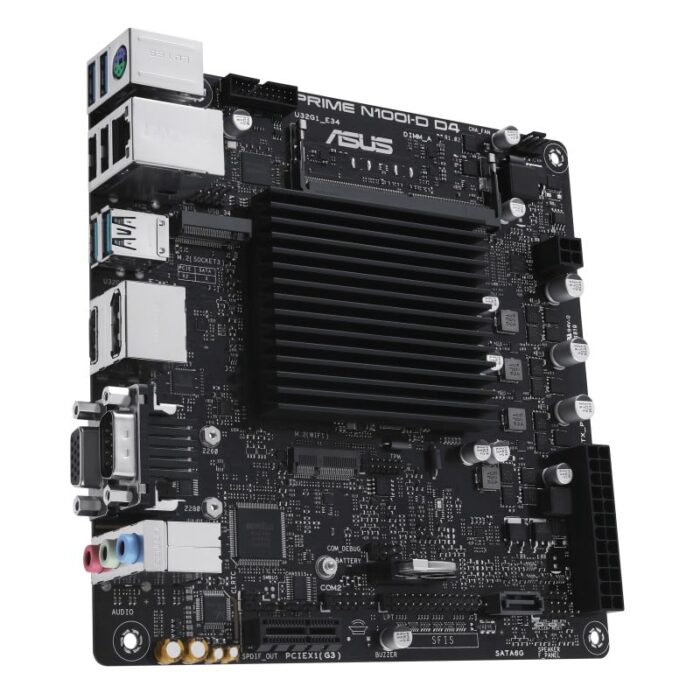

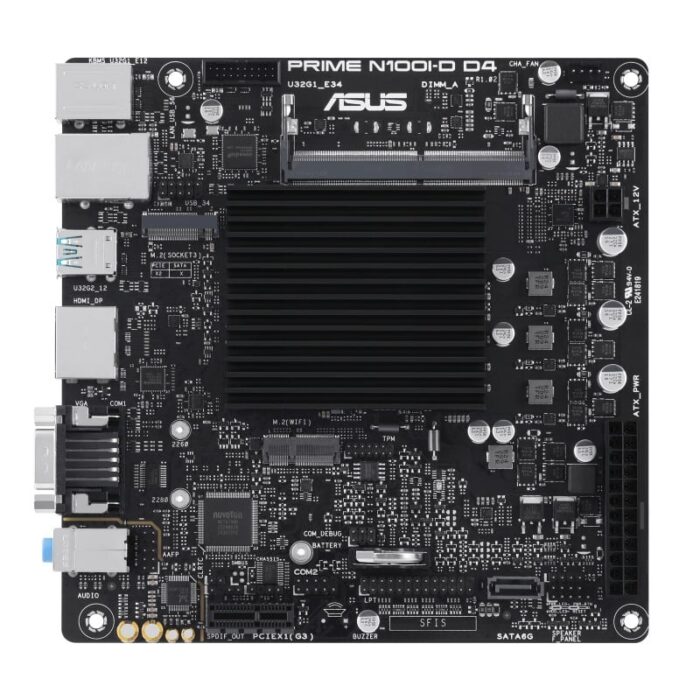

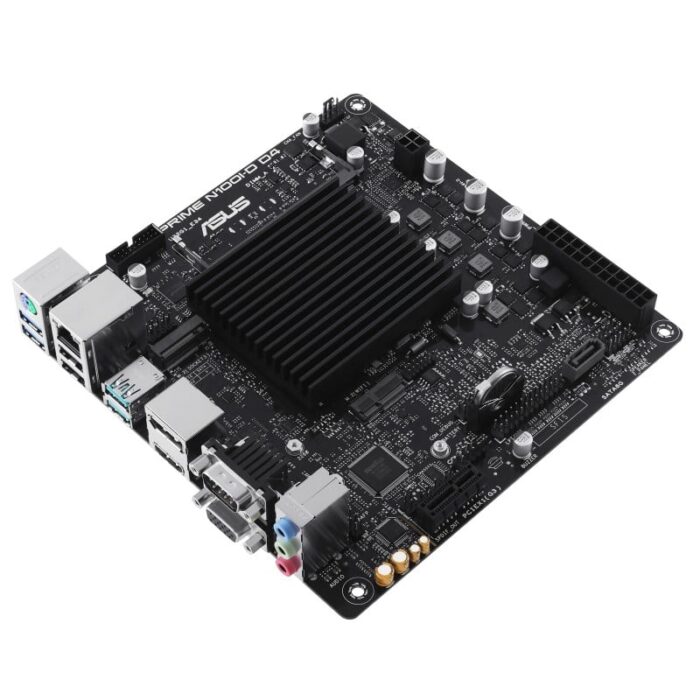

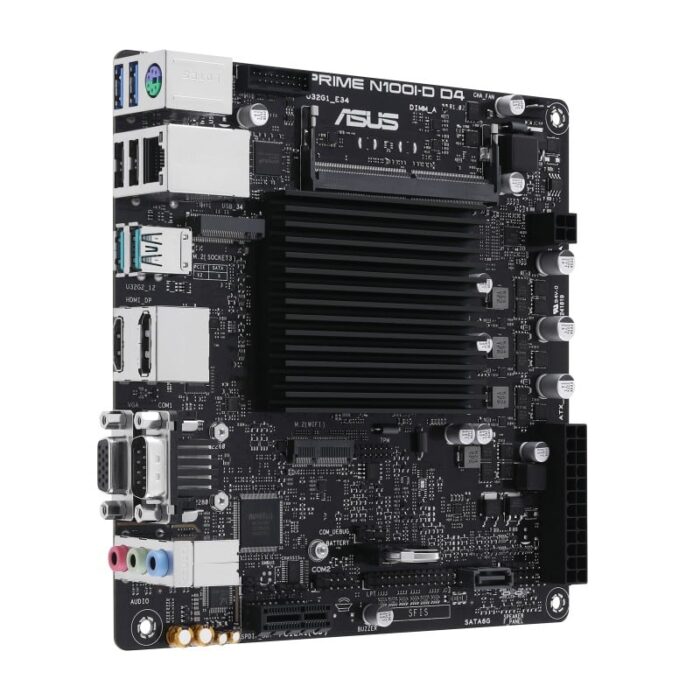

ASUS PRIME N100I-D D4-CSM – N100, Intel SoC, DDR4, M.2, SATA, USB 3.2 Gen 2, m-ITX

The ASUS PRIME N100I-D D4 features a processor manufactured by Intel. It comes with an integrated CPU, making the processor socket non-applicable (NA), and supports the Intel Processor N series. For memory, it supports DDR4-SDRAM with a maximum internal capacity of 16 GB, utilizing SO-DIMM memory slots. In terms of storage, it supports M.2 and SATA III drive interfaces, and is compatible with both HDD and SSD storage drive types. The motherboard includes a Gigabit Ethernet interface for networking. Designed for PCs, it follows the mini ITX form factor and belongs to the Intel motherboard chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
NA (integrated CPU)
show more


Compatible processor series
Compatible processor series
Intel Processor N
show more


Processor model
Processor model
N100
show more


Processor cores
Processor cores
4
show more


Maximum internal memory supported by processor
16 GB
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
1
show more


Memory slots type
Memory slots type
SO-DIMM
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,2933,3200 MHz
show more


Supported memory clock speed (max)
3200 MHz
show more


Maximum internal memory
Maximum internal memory
16 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
2
show more


Number of HDDs supported
Number of HDDs supported
1
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
1
show more


S/PDIF out connector
Yes
show more


Audio connector
Yes
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


Number of chassis fan connectors
1
show more


Peripheral (Molex) power connectors (4-pin)
Peripheral (Molex) power connectors (4-pin)
1
show more


12V power connector
Yes
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Line-in
Yes
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more


COM ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Packaging data

Package width
Package width
227 mm
show more


Package depth
Package depth
185 mm
show more


Package height
Package height
60 mm
show more


Package weight
Package weight
664 g
show more

Weight & dimensions

Width
Width
170 mm
show more


Depth
Depth
170 mm
show more

Packaging content

Cables included
SATA
show more
