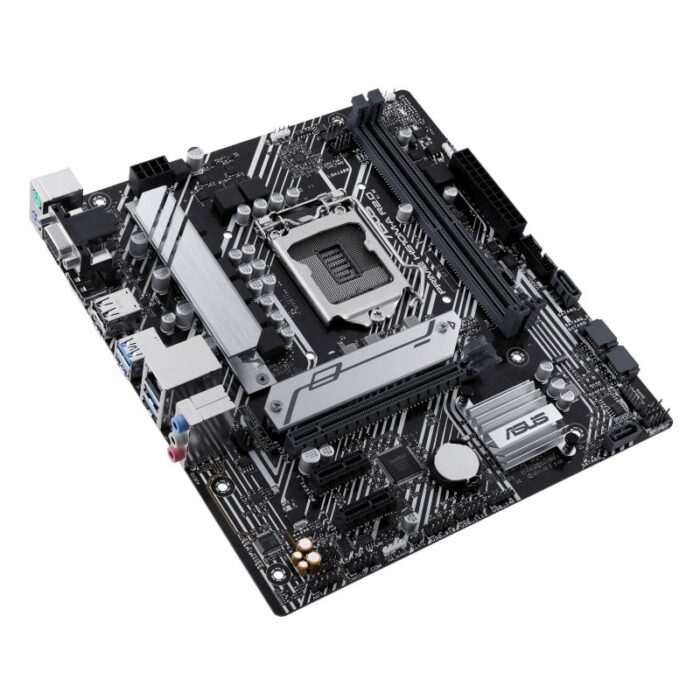

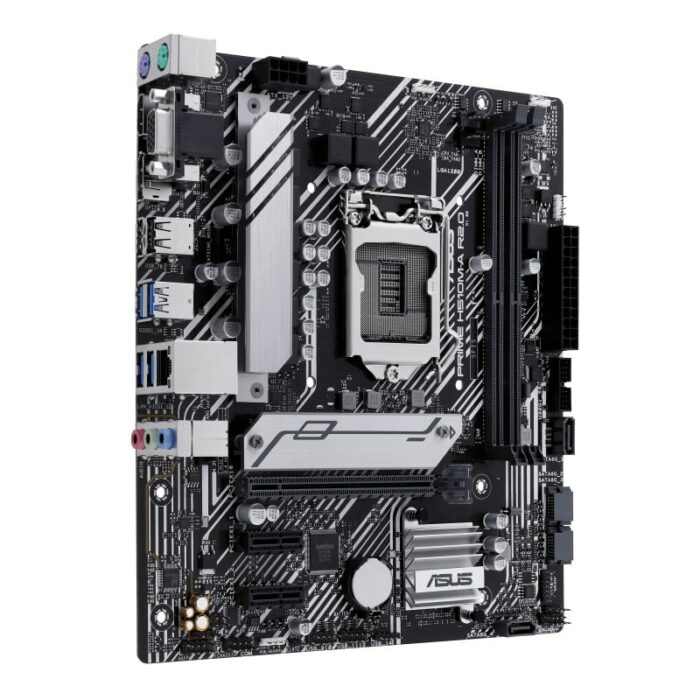

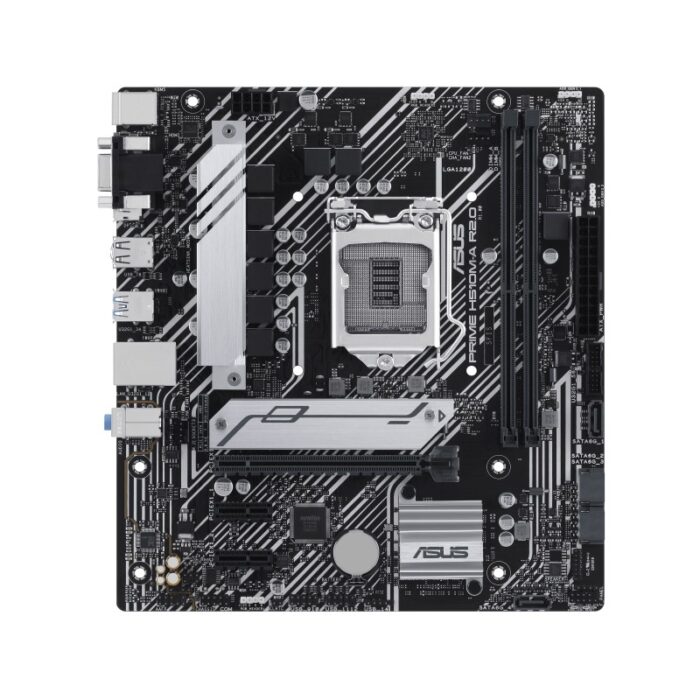

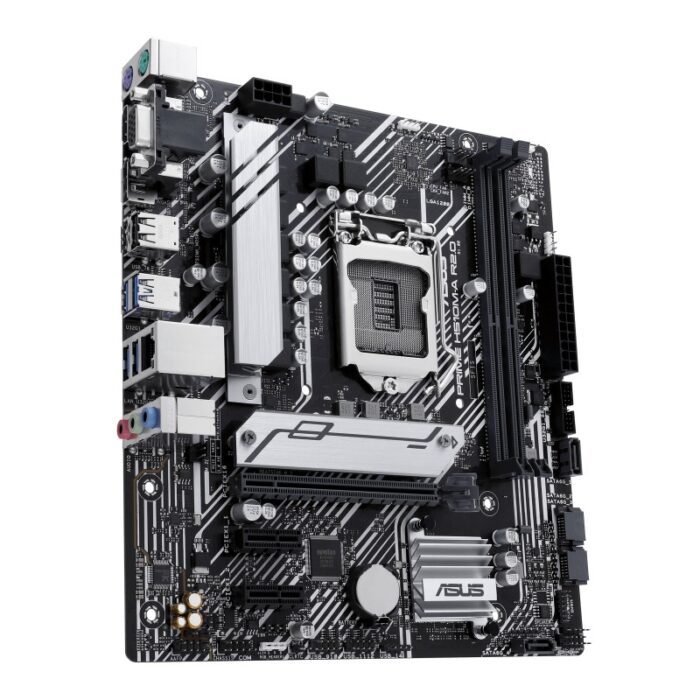

ASUS PRIME H510M-A R2.0 H510(H470), LGA1200, DDR4, M.2, SATA, mATX

The ASUS PRIME H510M-A R2.0 is a motherboard designed for use with processors from Intel. It features an LGA 1200 (Socket H5) and is compatible with a range of Intel processor series, including the Intel Celeron, Intel Pentium Gold, Intel Core i3, and Intel Core i5. The motherboard supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 64 GB through DIMM slots. For storage, it offers interfaces for M.2 and SATA III drives, supporting both HDD and SSD types. The ASUS PRIME H510M-A R2.0 includes a Gigabit Ethernet interface for network connectivity. It is built for use in PCs and follows the micro ATX form factor, being part of the Intel motherboard chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1200 (Socket H5)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
show more


Supported processor sockets
Supported processor sockets
LGA 1200 (Socket H5)
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
show more


Supported memory clock speed (max)
3200 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
5
show more


Number of HDDs supported
Number of HDDs supported
4
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


S/PDIF out connector
Yes
show more


Audio connector
Yes
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


EPS power connector (8-pin)
Yes
show more


12V power connector
Yes
show more


Number of COM connectors
1
show more


TPM connector
Yes
show more


RGB LED pin header
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Line-in
Yes
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel H510
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Packaging data

Package width
Package width
260 mm
show more


Package depth
Package depth
270 mm
show more


Package height
Package height
51.5 mm
show more


Package weight
Package weight
1.03 kg
show more

Weight & dimensions

Width
Width
226 mm
show more


Depth
Depth
211 mm
show more

Packaging content

Cables included
SATA
show more
