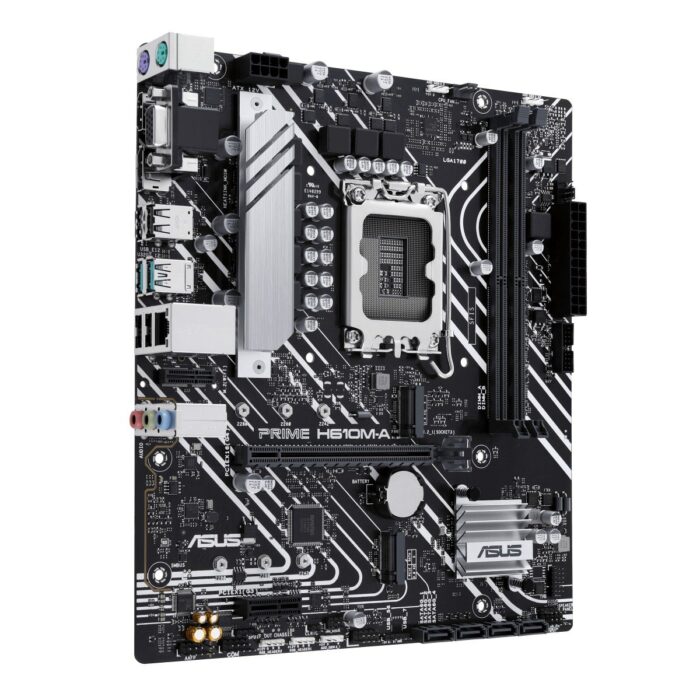

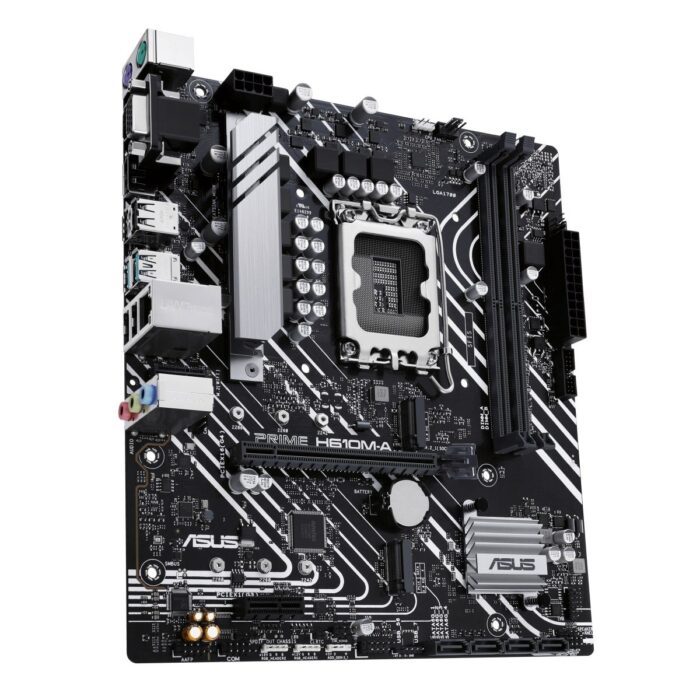

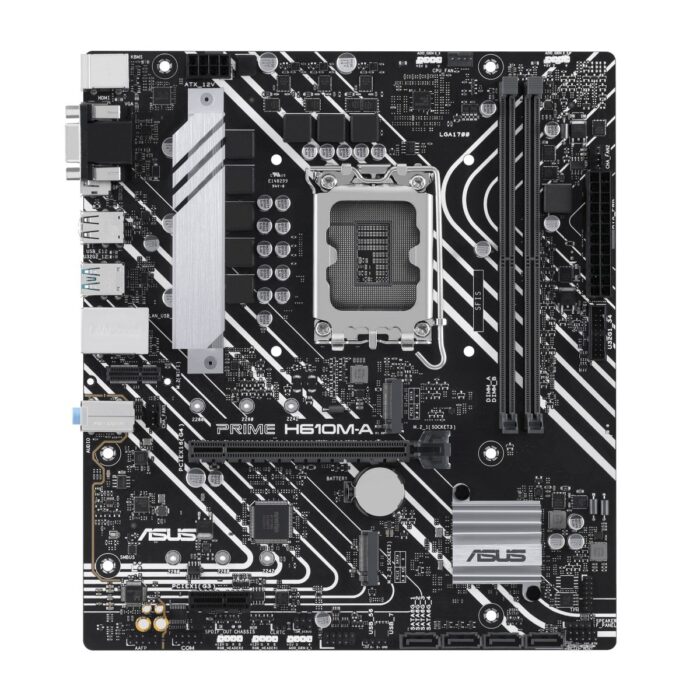

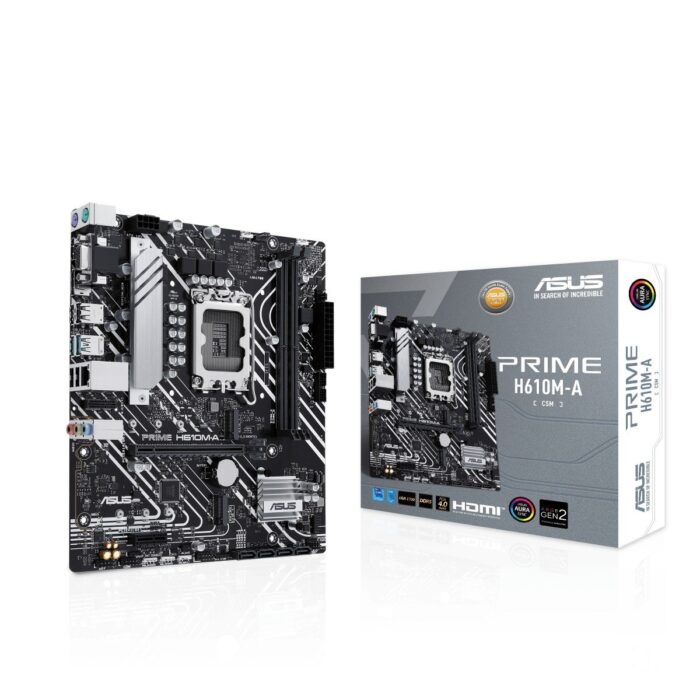

ASUS PRIME H610M-A-CSM, H610, LGA1700, DDR5, M.2, SATA, USB 3.2 Gen 2, mATX

The ASUS PRIME H610M-A-CSM is a motherboard designed for Intel processors, featuring an LGA 1700 socket. It is compatible with Intel® Celeron®, Intel® Core™ i3, i5, i7, and i9 processor series. The motherboard supports DDR5-SDRAM and can accommodate a maximum of 96 GB of internal memory through DIMM slots. For storage, it supports both M.2 and SATA III interfaces, catering to HDD and SSD types. Network connectivity includes Fast Ethernet and Gigabit Ethernet. This component is intended for use in PCs and features a micro ATX form factor. It belongs to the Intel motherboard chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4800,5000,5200,5400,5600 MHz
show more


Maximum internal memory
Maximum internal memory
96 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
6
show more


Number of HDDs supported
Number of HDDs supported
4
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


S/PDIF out connector
Yes
show more


Front panel audio connector
Yes
show more


ATX Power connector (24-pin)
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
2
show more


EPS power connector (8-pin)
Yes
show more


12V power connector
Yes
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


PS/2 ports quantity
PS/2 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Fast Ethernet, Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel H610
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

PCI Express x1 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Packaging data

Package width
Package width
270 mm
show more


Package depth
Package depth
263 mm
show more


Package height
Package height
51.5 mm
show more


Package weight
Package weight
1.07 kg
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
216 mm
show more


Height
Height
39 mm
show more

Other features

Weight
Weight
554 g
show more
