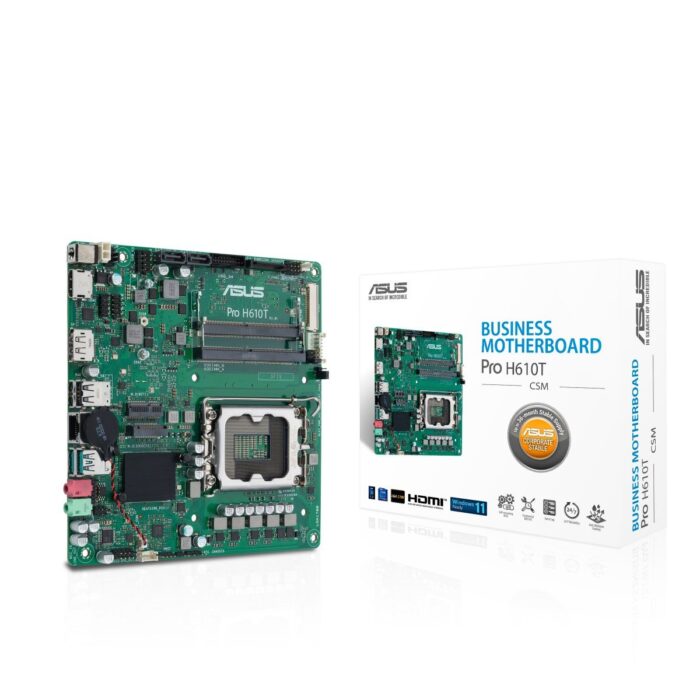

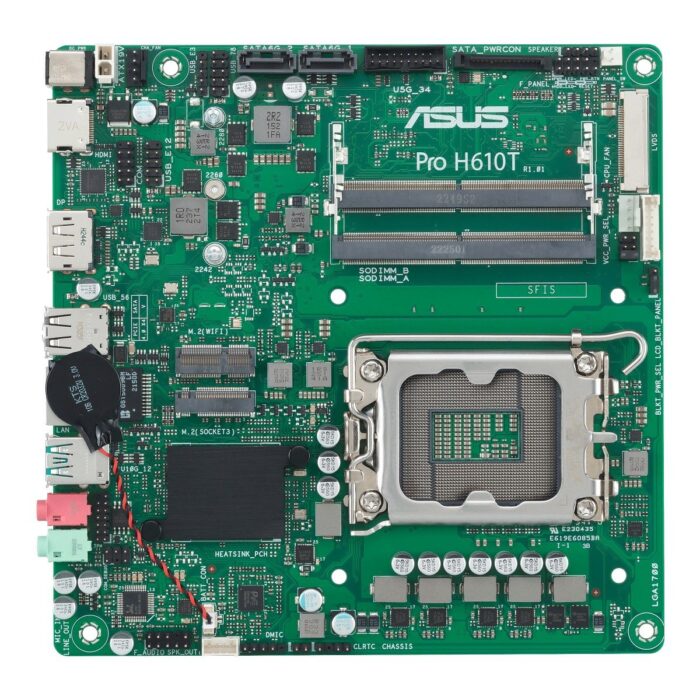

ASUS PRO H610T-CSM, H610, LGA1700, DDR5, M.2, SATA, USB 3.2 Gen 2, Thin m-ITX

The ASUS PRO H610T-CSM motherboard is designed for use in PCs. It is equipped with an LGA 1700 socket and supports a range of Intel processors, including Intel® Celeron®, Intel® Core™ i3, i5, i7, and i9. This motherboard accommodates DDR5-SDRAM memory, offering a maximum internal memory capacity of 64 GB through its SO-DIMM slots. For storage, it supports both HDD and SSD drives and provides M.2 and SATA III interfaces for connectivity. In terms of networking, it features both Fast Ethernet and Gigabit Ethernet interfaces. The motherboard is built in a mini ITX form factor and belongs to the Intel chipset family.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
LGA 1700
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
SO-DIMM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
5600 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, SATA III
show more


Number of storage drives supported
Number of storage drives supported
3
show more


Number of HDDs supported
Number of HDDs supported
2
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
3
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
2
show more


Front panel audio connector
Yes
show more


CPU fan connector
Yes
show more


Number of chassis fan connectors
1
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Fast Ethernet, Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel H610
show more


Audio output channels
Audio output channels
7.1 channels
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


Windows operating systems supported
Windows operating systems supported
Windows 10 x64, Windows 11 x64
show more

Expansion slots

Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


BIOS memory size
128 Mbit
show more

Packaging data

Package width
Package width
226 mm
show more


Package depth
Package depth
185 mm
show more


Package height
Package height
60 mm
show more


Package weight
Package weight
742.6 g
show more

Weight & dimensions

Width
Width
170 mm
show more


Depth
Depth
170 mm
show more


Height
Height
32 mm
show more

Other features

Weight
Weight
311.5 g
show more


LVDS connector
Yes
show more
