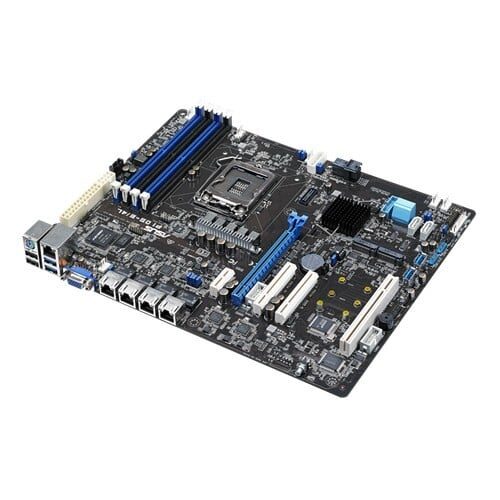

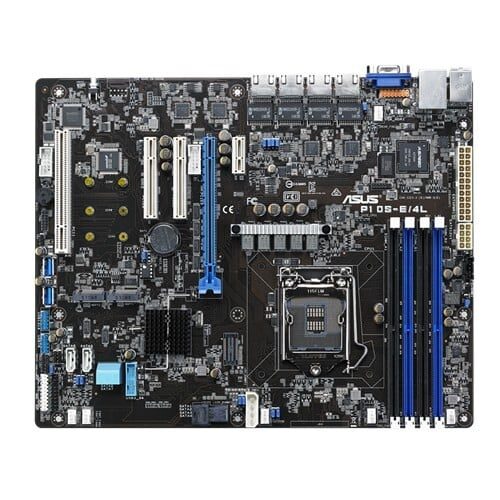

ASUS P10S-E/4L Intel C236 LGA 1151 (Socket H4) ATX

The ASUS P10S-E/4L is a robust motherboard engineered for reliable performance and versatility, powered by Intel technology. With a product code of 90SB0520-M0UAY0, it is an ideal choice for those seeking stability and efficiency in their computing solutions. It supports Intel Celeron and Intel Pentium processors, catering to a wide range of applications from everyday tasks to more demanding projects.

The motherboard accommodates DDR4-SDRAM memory with a maximum capacity of 64 GB, providing ample space for multitasking and performance enhancement. Its dual-channel memory support ensures efficient data transfer, making it suitable for both home and business environments. The advanced memory technology, combined with the motherboard's architecture, guarantees seamless operation and improved overall system responsiveness.

For data storage, the ASUS P10S-E/4L supports the SATA III interface, offering high-speed connectivity for hard drives. It also features RAID levels 0, 1, 5, and 10, which allow for enhanced data protection and performance optimization. This flexibility makes it an excellent choice for users who prioritize both speed and security for data management.

Additionally, the motherboard comes with an on-board Aspeed AST2400 graphics card with 32 MB of memory, ensuring basic visual performance for various applications. The Gigabit Ethernet interface, backed by the Intel I210 LAN controller, provides fast and reliable network connectivity. Overall, the ASUS P10S-E/4L stands out as a comprehensive solution for users in search of a dependable and feature-rich motherboard.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1151 (Socket H4)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Pentium®
show more


Intel Xeon series
E3-1200
show more


Processor number of cores supported
Processor number of cores supported
4
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory channels
Dual-channel
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133 MHz
show more


Maximum internal memory
Maximum internal memory
64 GB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

Discrete graphics support
Yes
show more


On-board graphics card memory
32 MB
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2400
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more


ATX Power connector (24-pin)
Yes
show more


Number of chassis fan connectors
6
show more


Chassis intrusion connector
Yes
show more


Serial port headers
2
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
5
show more


PS/2 ports quantity
PS/2 ports quantity
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel I210
show more

Features

Motherboard chipset
Motherboard chipset
Intel® C236
show more


Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
ATX
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more

Processor special features

Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
show more


Intel Rapid Storage Technology enterprise
Yes
show more


Conflict-Free
Conflict-Free
Yes
show more


Intel Rapid Storage Technology
Yes
show more


Intel Trusted Execution Technology
Yes
show more


Intel® Virtualization Technology (Intel® VT)
Intel® Virtualization Technology (Intel® VT)
VT-d
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage relative humidity (H-H)
20 – 90%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
305 mm
show more


Depth
Depth
244 mm
show more

Other features

Intel® vPro™ Platform Eligibility
Yes
show more


Number of processors supported
Number of processors supported
1
show more


Number of DIMM slots
Number of DIMM slots
4
show more
